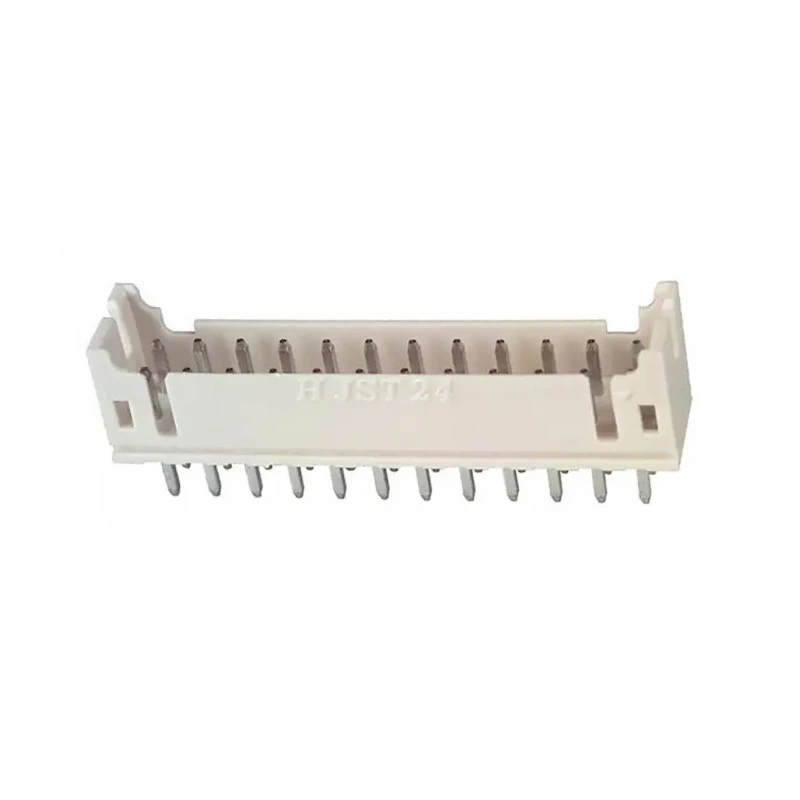

JST PHD Series Straight Through Hole PCB Header, 24 Contacts, 2 mm Pitch, 2 Row, Shrouded B24B-PHDSS (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PHD Series Straight Through Hole PCB Header, 24 Contacts, 2 mm Pitch, 2 Row, Shrouded B24B-PHDSS (LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B24B-PHDSS (LF)(SN)
Mount Type	Through Hole
Housing Material	Glass Filled Nylon
Contact Material	Copper Alloy
Series	PHD
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	24
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The housing is made of durable glass filled nylon for thermal stability.
Supports a current rating of 3 A at 250 V, suitable for various electronic components.
Shrouded design prevents incorrect mating and contamination ingress.
Constructed with copper alloy contacts plated in tin for reliable conductivity.
Mounting type is through hole for secure PCB attachment.
Operates reliably in temperatures ranging from -25°C to 85°C.
Compact design with 2 mm row pitch accommodates space-saving applications.
Ideal for wire-to-board connection systems in industrial and electronics manufacturing.

Product Description

JST B24B-PHDSS (LF)(SN) PCB Header is a high-quality, straight through hole connector designed for electronic component interfacing with a 2 mm pitch and double-row configuration. It features 24 male contacts ensuring a compact, low profile, and robust electrical connection. Manufactured with glass filled nylon housing, it provides excellent mechanical strength and thermal resistance essential for industrial applications.

The shrouded design enhances safety by preventing improper mating and protecting contacts from flux and contaminants, critical in manufacturing and assembly environments. Contacts are made from copper alloy with tin plating to ensure reliable current conduction and corrosion resistance.

This PCB header supports a maximum current rating of 3 A and voltage of 250 V, suited for various electronics modules and devices requiring dependable connectivity.

Operating temperature range from -25°C to 85°C makes it suitable for diverse environmental conditions, common in electronics, industrial controls, automation systems, HVAC, and instrumentation applications.

Its through hole mount type provides stable mechanical fixation on printed circuit boards. The 2 mm pitch and 2-row layout support high-density wiring while maintaining compact size, advantageous for designing space-efficient electronic assemblies.

The housing is made of glass filled nylon for enhanced durability. The connector system is wire-to-board for versatile connections. Contact gender is male, ensuring compatibility with female receptacles. Termination type is solder, offering secure electrical and mechanical connection.

This product is manufactured in Malaysia under stringent quality controls.

Perfect for industrial, laboratory, and commercial electronics manufacturing, this JST PHD Series PCB Header provides precision, reliability, and ease of installation. EnvMart offers this connector as part of a wide electronics components selection to support electronic design and assembly needs.

Explore more products in our PCB Headers category.
