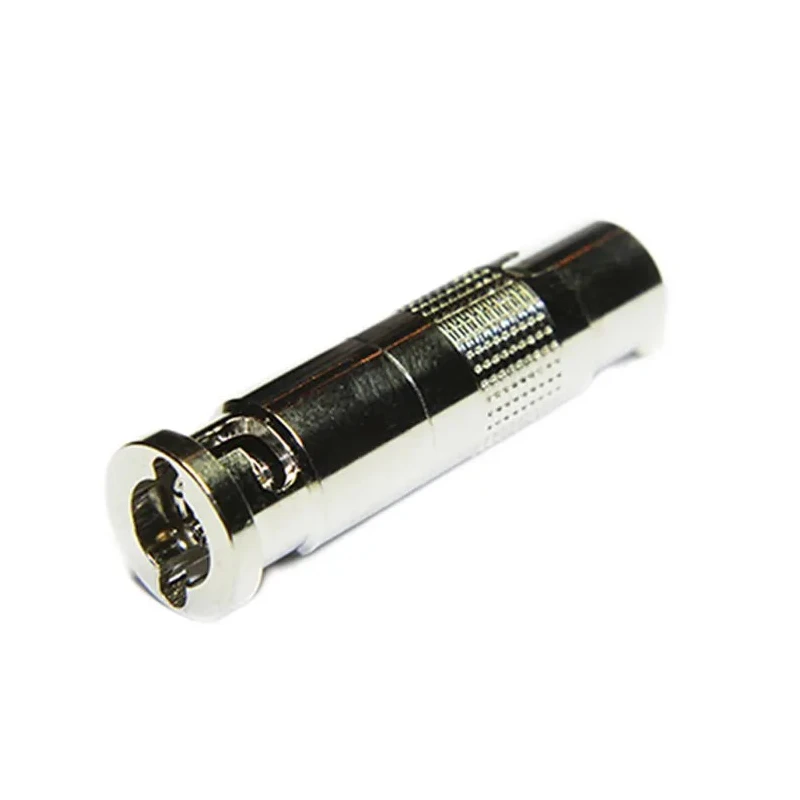

Amphenol RF BNC Series Coaxial Connector Cable Male Micro BNC Connector 75 Ω Straight Body 67-863-B36
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | Amphenol RF |
| Orientation | Straight |
| Model | 67-863-B36 |
| Mount Type | Cable |
| Operating Frequency | 3GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | BNC |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | Micro BNC Connector |
| Body Plating | Nickel |
Key Features
- The Micro BNC Connector type ensures reliable connectivity for RF signals.
- Nickel-plated brass body provides durability and corrosion resistance.
- Gold-plated beryllium copper alloy contacts guarantee excellent conductivity.
- Designed for operating frequencies up to 3 GHz, ideal for broadcast and industrial uses.
- Wide operating temperature range from -55°C to 155°C for harsh environments.
- Male connector gender with normal polarity supports standard cable connections.
- Compact standard size for easy integration in cable assemblies.
- Series BNC complies with SMPTE 292M, 424M, and ST8081-1 standards.
Product Description
COAX Connectors brand presents the 67-863-B36 model, a Micro BNC Series Coaxial Connector designed for cable mounting with a straight orientation. This male connector features a 75 Ω impedance, making it suitable for high-frequency signal transmission up to 3 GHz, typically used in broadcast and professional RF applications.
The connector body is nickel plated brass, providing robust mechanical protection and corrosion resistance. The contacts are made of beryllium copper alloy with gold plating, ensuring low contact resistance and signal integrity. The product supports a wide temperature range from -55°C to 155°C, which makes it ideal for demanding industrial and outdoor environments.
With its normal polarity and compact standard size, this connector is engineered for seamless integration in cable assemblies, offering reliable performance in sensitive RF circuits. Micro BNC connectors like this model comply with SMPTE 292M, 424M, and ST8081-1 standards, establishing compatibility with broadcast industry equipment.
This product is manufactured in Taiwan, Province Of China, reflecting high-quality manufacturing controls and material standards. Its nickel-plated body and gold-plated contact components ensure durability and high electrical performance.
Applications include telecommunications, broadcast video, test and measurement devices, and other RF communication systems requiring consistent 75 Ω terminations with minimal signal loss.
The Micro BNC Connector supports professional broadcast and RF applications. Nickel plating on the brass body enhances corrosion resistance and lifespan. Gold plating on contacts improves conductivity and reliability. Suitable for frequencies up to 3 GHz, accommodating high-speed signals.
Wide temperature range covers harsh operating environments from -55°C to 155°C. Standard size ensures ease of installation and replacement. Complies with recognized SMPTE standards for broadcast compatibility. Made in Taiwan, indicating reliable manufacturing quality.
Explore the Connectors category on EnvMart to find a wide range of coaxial Connectors and related components optimized for electronic and RF applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This Micro BNC connector supports operating frequencies up to 3 GHz, making it suitable for high-frequency signal transmission in RF applications.
The impedance of this model is 75 Ω, which is standard for many RF applications, ensuring minimal signal loss.
The contacts are made from beryllium copper alloy and are gold plated, which ensures excellent conductivity and low contact resistance.
It operates within a wide temperature range from -55°C to 155°C, making it suitable for harsh environments.
This model is designed for cable mounting, allowing for easy integration into cable assemblies.
The Micro BNC connector complies with SMPTE 292M, 424M, and ST8081-1 standards, ensuring compatibility with broadcast industry equipment.
This connector features a male gender, supporting standard cable connections with normal polarity.
The body is made of nickel-plated brass, providing durability and corrosion resistance.
It is suitable for telecommunications, broadcast video, test and measurement devices, and other RF communication systems requiring reliable 75 Ω terminations.
This model has a compact standard size, facilitating easy installation and replacement in cable assemblies.
This product is manufactured in Taiwan, reflecting high-quality manufacturing controls and material standards.
It is a Micro BNC connector, designed specifically for reliable connectivity in RF signal applications.
