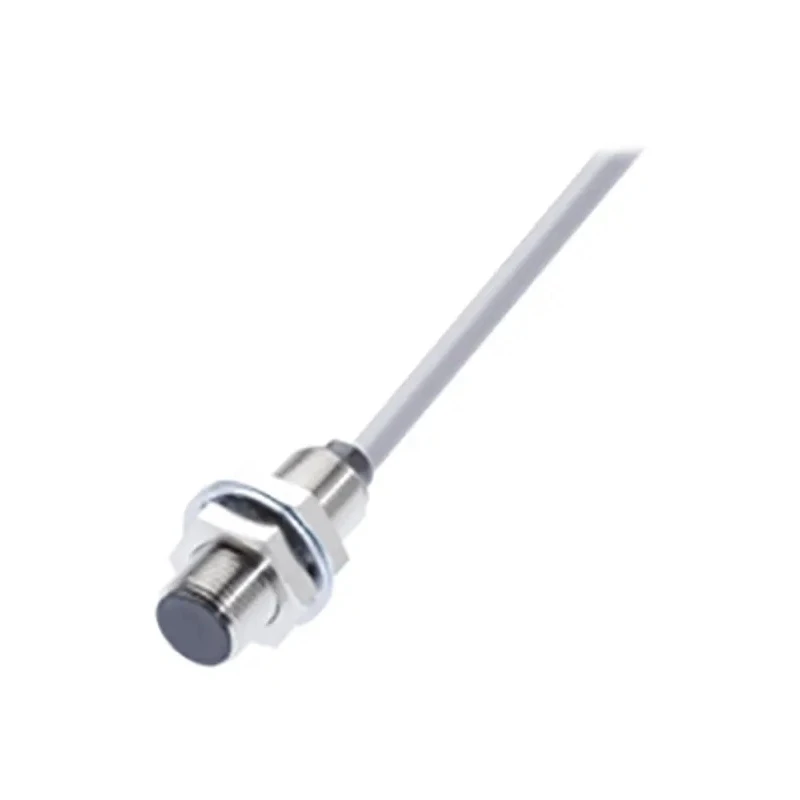

BALLUFF Threaded Barrel Inductive Proximity Sensor M12 x 1 30V PNP 4mm Detection BES M12MD-PSC20B-BV02-003
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | BALLUFF |
| Length | 33mm |
| Model | BES M12MD-PSC20B-BV02-003 |
| Depth | 33mm |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Flush |
| Housing Material | Copper Zinc |
| Output type | PNP |
| Maximum Operating Temperature | 70°C |
| Thread Size | M12 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 1.2kHz |
| Standards/Approvals | CE, cULus |
| Maximum AC Voltage | 250V ac |
| Maximum Supply Voltage | 30V |
| Materials Detected | Liquid Crystal Polymer |
| Maximum Detection | 4mm |
Key Features
- The sensor features a durable M12 x 1 threaded barrel design suitable for flush mounting.
- It operates within a voltage range of up to 30 V DC and 250 V AC.
- Provides short circuit and polarity reversal protection for enhanced safety.
- Equipped with an LED indicator for clear visual output status feedback.
- Constructed with copper zinc housing and designed to operate in temperatures from -25°C to 70°C.
- Rated IP67 for ingress protection, ideal for industrial environments.
- Maximum switching frequency is 1.2 kHz, ensuring effective response in automation systems.
- Outputs are shielded with a switching current rating of 200 mA.
Product Description
BALLUFF BES M12MD-PSC20B-BV02-003 is a high-quality threaded barrel inductive proximity sensor designed for industrial automation applications requiring precise metal object detection. This M12 x 1 sensor delivers reliable operation with a 4 mm sensing distance and features a PNP output for integration with various control systems operating at voltages up to 30 V DC and 250 V AC.
The sensor's compact 33 mm length and 12 mm width housing made from robust copper zinc ensures durability in demanding environments. It supports flush mounting and comes with an IP67 rating for dust and water ingress protection, suitable for construction, manufacturing, and process automation settings.
Equipped with short circuit and polarity reversal protection mechanisms, the sensor enhances system reliability. An LED outputs state indication, providing easy visual confirmation of sensor status. Operating temperature range from -25°C to 70°C enables deployment in varied ambient conditions.
Its maximum switching frequency of 1.2 kHz and a switching current of 200 mA make it well-suited for fast response applications. The sensor detects materials made from liquid crystal polymer and other conductive metals effectively.
Certified with CE and cULus approvals, this proximity sensor meets key industry standards for safety and performance. Originating from Hungary, BALLUFF's BES M12MD-PSC20B-BV02-003 is ideal for factory automation, assembly lines, robotics, and monitoring metal objects in industrial systems.
The sensor features a durable M12 x 1 threaded barrel design suitable for flush mounting. It operates within a voltage range of up to 30 V DC and 250 V AC. Provides short circuit and polarity reversal protection for enhanced safety.
Equipped with an LED indicator for clear visual output status feedback. Constructed with copper zinc housing and designed to operate in temperatures from -25°C to 70°C. Rated IP67 for ingress protection, ideal for industrial environments.
Maximum switching frequency is 1.2 kHz, ensuring effective response in automation systems. Outputs are shielded with a switching current rating of 200 mA. Complies with CE and cULus standards, guaranteeing quality and safety.
Explore the breadth of BALLUFF Proximity Sensors and other sensor types at EnvMart for all your industrial automation monitoring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 4 mm.
It operates within a voltage range of up to 30 V DC and 250 V AC.
The switching current rating for this sensor is 200 mA.
This unit has an IP67 rating, providing protection against dust and water ingress.
It can effectively detect materials made from liquid crystal polymer and other conductive metals.
The maximum switching frequency is 1.2 kHz, allowing for effective response in automation systems.
The dimensions of this model are 33 mm in length, 12 mm in width, and it has a threaded barrel design.
It is designed to operate in temperatures ranging from -25°C to 70°C.
This model features a PNP output type for integration with various control systems.
It supports flush mounting, making it suitable for various installation scenarios.
This sensor is certified with CE and cULus approvals, ensuring compliance with key industry standards.
The housing of this model is constructed from copper zinc, providing durability in industrial environments.
