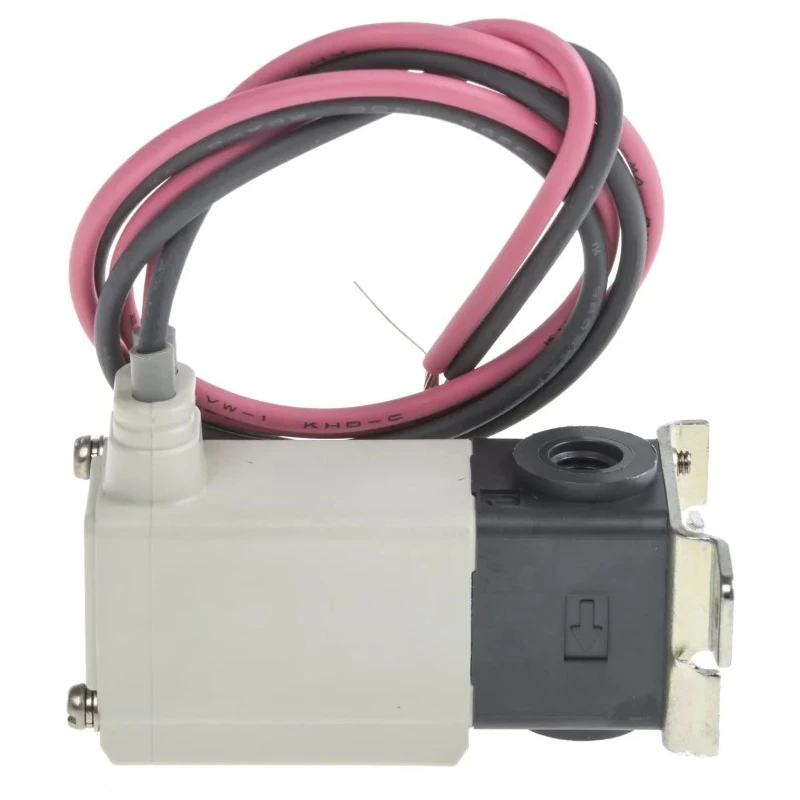

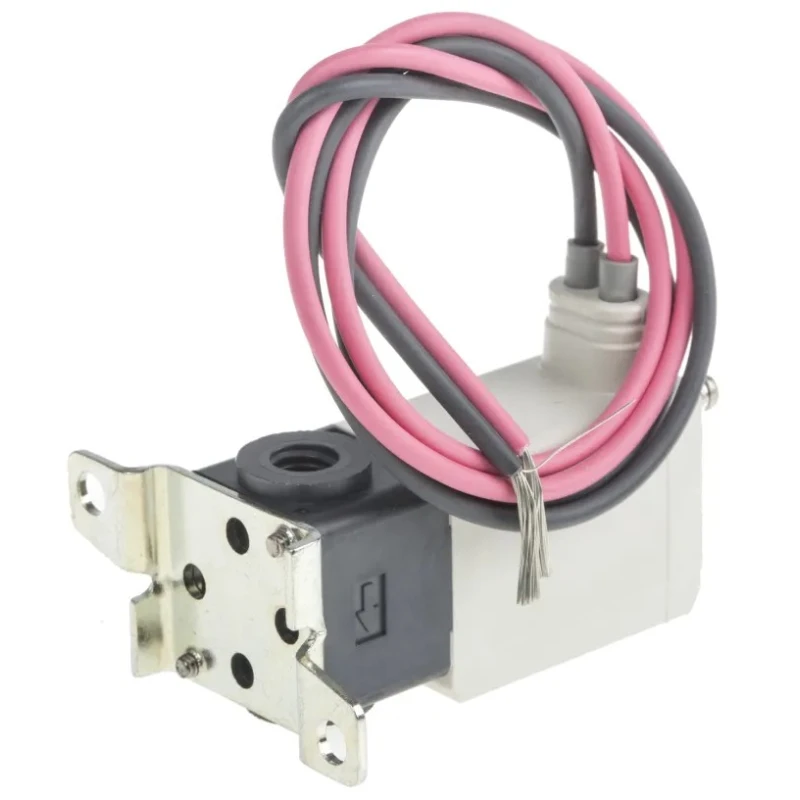

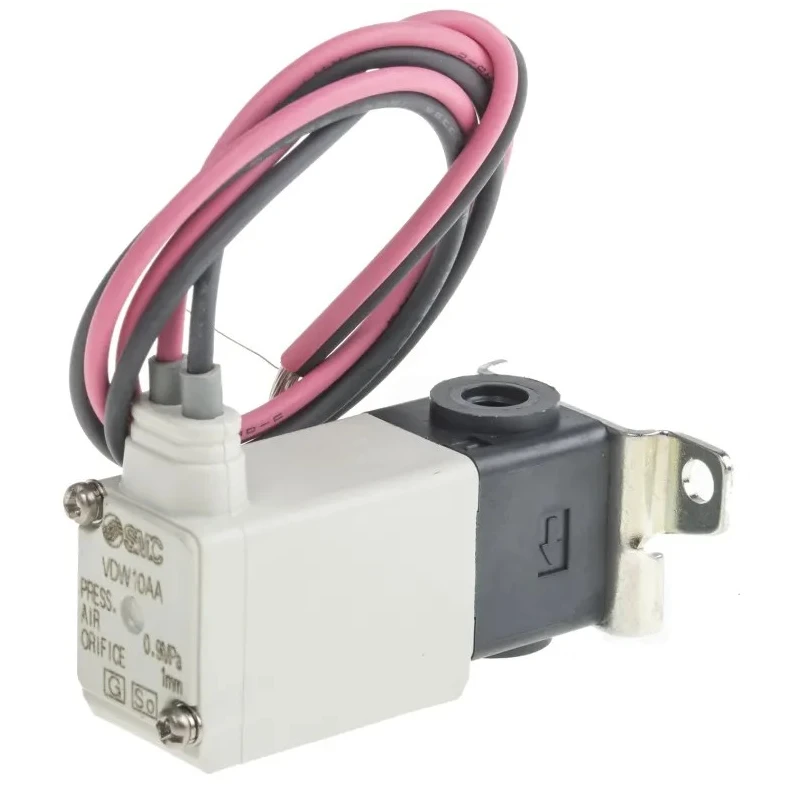

SMC Pneumatic Solenoid Valve 2/2 Solenoid/Spring Rc Threaded Port M5 24V dc 2.5W Resin Body VDW10AA

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 2/2 Solenoid/Spring Rc Threaded Port M5 24V dc 2.5W Resin Body VDW10AA



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Resin
Maximum Operating Pressure	1 Mpa
Height	34mm
Length	46mm
Model	VDW10AA
Width	15mm
Mount Type	Bracket
Series	VDW
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	2
Port Size	M5
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid/Spring
Standards/Approvals	CE, RoHS
Connection Thread Standard	Rc
Minimum Pilot Pressure	0.9MPa
Valve Function	2/2
Electrical Connection Type	Grommet
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	2.5W

Key Features

Compact direct-operated pneumatic solenoid valve with 2 ports.
Resin body material with nitrile rubber (NBR) seals for durability and corrosion resistance.
Operates at 24V dc with a solenoid power consumption of 2.5 watts.
Supports maximum operating pressure of 1 MPa and pilot pressure range 0.9 to 1 MPa.
Electrical connection via grommet with a bracket mount type.
Suitable for use with water, air, and vacuum applications.
Operating temperature range between -10°C and 50°C.
Meets CE and RoHS standards.

Product Description

SMC VDW10AA pneumatic solenoid valve is a direct-operated 2/2 port valve with solenoid and spring actuation designed for reliable pneumatic control in industrial, laboratory, manufacturing, and fluid power applications. The valve features Rc threaded M5 female ports and a resin construction body combined with nitrile rubber seals to offer excellent wear resistance and durability under pneumatic use.

Operating at 24V dc with a low solenoid power consumption of 2.5 watts, the valve supports a maximum operating pressure of 1 MPa and pilot pressures between 0.9 MPa and 1 MPa. It is designed for use with water, air, and vacuum media, ideal for compact manifolds and pneumatic circuits that require precise control with minimal resistance and optimized service life.

The VDW series solenoid valves feature a bracket mount type ensuring stable installation and electrical connection via grommet for secure wiring. Designed to operate efficiently within a temperature range of -10°C to 50°C, these valves meet CE and RoHS standards ensuring quality and compliance.

Dimensions of the valve are compact and space-saving, measuring 46mm in length, 15mm in width, and 34mm in height, facilitating integration into various pneumatic assemblies and industrial setups. Made in Japan, this valve is a trusted industrial valve for use across manufacturing, water treatment, HVAC, and other industrial process automation systems requiring durable and efficient pneumatic control valves.

Compact direct-operated 2-port valve ideal for manifold mounting. Resin body with nitrile rubber seals provides reliability under pneumatic media. Operates at 24V dc with 2.5W power consumption for energy efficiency. Designed for water, air, and vacuum pneumatic applications.

Supports pressures up to 1 MPa with a pilot pressure range of 0.9 to 1 MPa. Bracket mount type and grommet electrical connection for secure installation. Compact size enables easy integration into industrial pneumatic systems.

Meets CE and RoHS standards for safety and compliance. Manufactured in Japan ensuring high-quality industrial valve production.

This SMC VDW10AA pneumatic solenoid valve is ideal for industrial pneumatic applications including fluid power systems, laboratory automation, manufacturing machines, HVAC systems, and water treatment plants. Explore wide options of Pneumatic Solenoid Valves and accessories at EnvMart for enhanced industrial control solutions.
