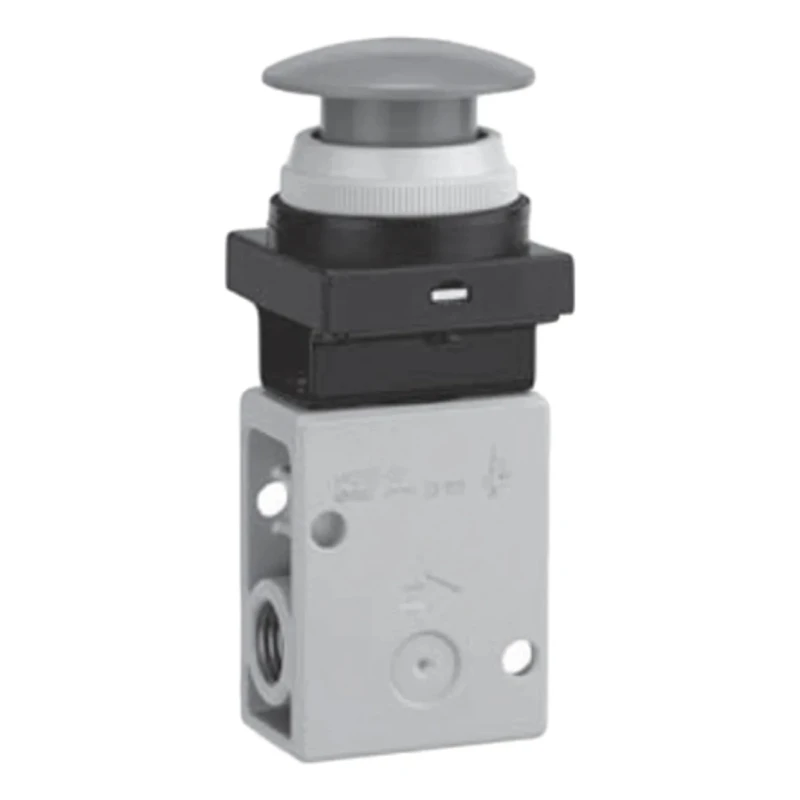

SMC Push Button Mushroom Pneumatic Manual Control Valve VM200 Series Rc NPT R 1/4 1 Mpa Max Pressure Green VM230-02-30GA



Category Pneumatic Manual Control Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Zinc Die Cast Alloy
Maximum Operating Pressure	1 Mpa
Model	VM230-02-30GA
Width	30mm
Series	VM200
Number Of Ports	3
Maximum Operating Temperature	50°C
Thread Size	1/4
Number of Positions	2
Port Size	R 1/4
Minimum Operating Temperature	-5°C
Maximum Flow Rate	1088L/min
Control Mechanism	Push Button (Mushroom)
Connection Thread Standard	Rc, NPT
Valve Function	Pneumatic Relay
Control Button/Switch Colour	Green

Key Features

The valve features a green push button switch for easy identification.
Constructed from Zinc Die Cast Alloy for durability and resistance to harsh conditions.
It operates at a maximum pressure of 1 Mpa with flow rate up to 1088 L/min.
Designed for temperatures ranging from -5°C to 50°C ensuring robust performance.
3 ports and 2 positions allow efficient pneumatic control in various systems.
Compatible with Rc and NPT connection thread standards with R 1/4 port size.
Compact width of 30 mm enables integration into pneumatic control panels.
Suitable for vacuum applications with poppet type construction enhances reliability.

Product Description

SMC VM230-02-30GA is a push button (mushroom) Pneumatic Manual Control Valve from the VM200 series, designed for industrial pneumatic applications requiring high durability and performance. Manufactured in Japan, it is constructed from zinc die cast alloy body material which ensures longevity and resistance against harsh working environments.

The valve operates as a pneumatic relay with a maximum permissible operating pressure of 1 Mpa and maximum flow rate of 1088 L/min, suitable for efficient air flow control. It features a green-colored push button control mechanism for quick visual recognition and ease of use.

Designed with 3 ports and 2 positions, it provides reliable pneumatic switching and control. The valve supports Rc and NPT thread standards with a port size of R 1/4 and thread size of 1/4. Operating temperature ranges from -5°C minimum to 50°C maximum, making it adaptable for many pneumatic systems and environments.

The compact 30 mm width housing is ideal for integration into pneumatic control panels or equipment requiring space-efficient components. This valve also supports vacuum applications through its poppet type construction and can be mounted on the side or bottom, providing installation flexibility.

The valve's push button mushroom control mechanism affords quick pneumatic actuation. Zinc die cast alloy body enhances durability in industrial conditions. High maximum flow rate of 1088 L/min supports efficient pneumatic circuit operation.

Wide operating temperature range from -5°C to 50°C suits diverse environments. 3 ports and 2 positions designed for effective pneumatic relay function. Rc and NPT connection thread standards with R 1/4 port size ensure compatibility.

Compact 30 mm width facilitates installation in control panels or tight spaces.

This pneumatic valve finds applications across industrial automation, pneumatic control systems, manufacturing processes, and laboratory pneumatic setups where precise pneumatic control is critical. Its robust construction and reliable functionality make it a vital component for assembly lines, machine controls, and pneumatic circuits requiring manual control with push button actuation.
