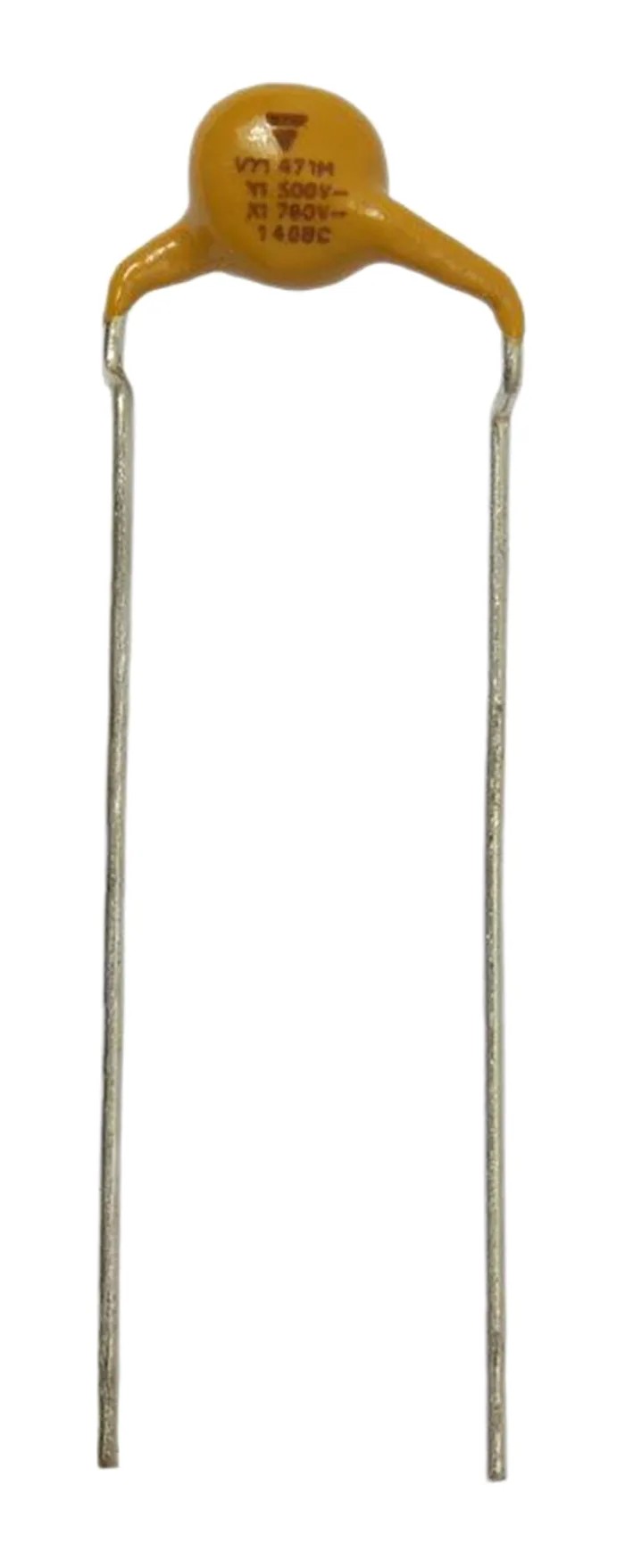

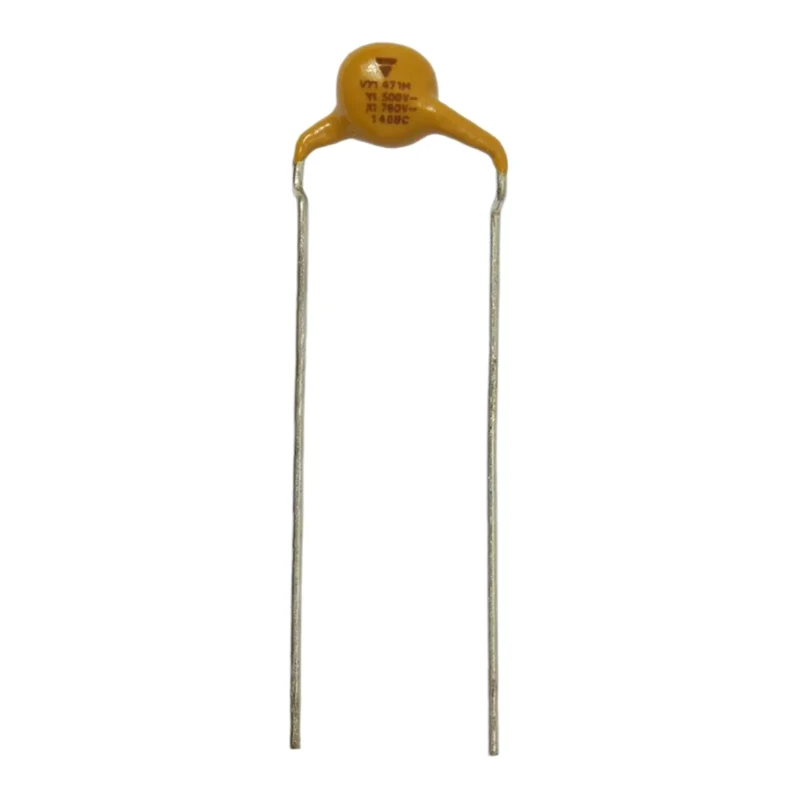

Vishay Single Layer Ceramic Capacitor 4.7 nF 500V AC, 760 V AC ±20% Y5U Dielectric Through Hole VY1472M61Y5UC63V0

Free Delivery in India | Lowest Global Shipping Charges

Vishay Single Layer Ceramic Capacitor 4.7 nF 500V AC, 760 V AC ±20% Y5U Dielectric Through Hole VY1472M61Y5UC63V0

Name: Vishay Single Layer Ceramic Capacitor 4.7 nF 500V AC, 760 V AC ±20% Y5U Dielectric Through Hole VY1472M61Y5UC63V0
Brand: Vishay
SKU: 109989
Price: 0.47 USD
Availability: InStock



Category Single Layer Ceramic Capacitors Brand Vishay Condition New

Specifications

Country of Origin	China
Voltage	500, 760V ac
Diameter	15.5mm
Brand	Vishay
Height	40mm
Model	VY1472M61Y5UC63V0
Width	5mm
Mount Type	Through Hole
Series	VY1
Maximum Operating Temperature	125°C
Tolerance	±20 %
Capacitance	4.7nF
Minimum Operating Temperature	-40°C
Terminal type	Radial
Dissipation Factor	2.5%
Standards/Approvals	IEC 60384-14, CSA, DIN EN 60384-14, RoHS
Pin Count	2
Dielectric	Y5U

Key Features

Single layer AC disc capacitor with radial terminal type.
Features Y5U dielectric with ±20% tolerance.
Maximum operating temperature of 125 °C for extended usage.
Through hole mounting design with silver-plated ceramic disc.
Complies with IEC 60384-14, CSA, DIN EN 60384-14, and RoHS standards.
Capable of withstanding 10 kV pulses for high reliability.
Pin count of 2 with tinned copper clad steel leads for durability.
Suitable for applications such as across-the-line and antenna coupling.

Product Description

Vishay VY1472M61Y5UC63V0 Single Layer Ceramic Capacitor is a through hole component designed with a ceramic disc that is silver-plated on both sides and encapsulated within flame retardant epoxy resin. This radial lead capacitor utilizes tinned copper clad steel leads, enhancing its robustness and electrical performance.

The capacitor exhibits a capacitance of 4.7 nF with an AC voltage rating of 500V, and its maximum voltage withstands up to 760V AC. It features a Y5U dielectric composition with a tolerance of ±20%, allowing for flexible use in a variety of electronic circuit designs where moderate capacitance variation is acceptable.

Engineered for high reliability, the component can operate safely at temperatures ranging from -40 °C to a maximum of 125 °C. Its design permits passing of 10 kV pulses, ensuring resiliency in harsh electrical environments, making it ideal for across-the-line, line bypass, and antenna coupling applications.

The Vishay VY1 series capacitors meet comprehensive international standards including IEC 60384-14, CSA, DIN EN 60384-14, and RoHS compliance, confirming their quality and environmental safety. Its dimensional attributes are 15.5 mm diameter, 5 mm width, and 40 mm height, making it compact for circuit board implementations.

Single layer AC disc capacitor with radial terminal type. Features Y5U dielectric with ±20% tolerance. Maximum operating temperature of 125 °C for extended usage. Through hole mounting design with silver-plated ceramic disc.

Complies with IEC 60384-14, CSA, DIN EN 60384-14, and RoHS standards. Capable of withstanding 10 kV pulses for high reliability. Dimensions include 15.5 mm diameter and 5 mm width. Pin count of 2 with tinned copper clad steel leads for durability.

Suitable for applications such as across-the-line and antenna coupling. Manufactured in China with new product condition.

This capacitor is ideal for use in industrial, electronic manufacturing, power and connector modules, and various electronic component assemblies requiring dependable Single Layer Ceramic Capacitors. Its flame retardant construction enhances safety and durability in demanding environments.
