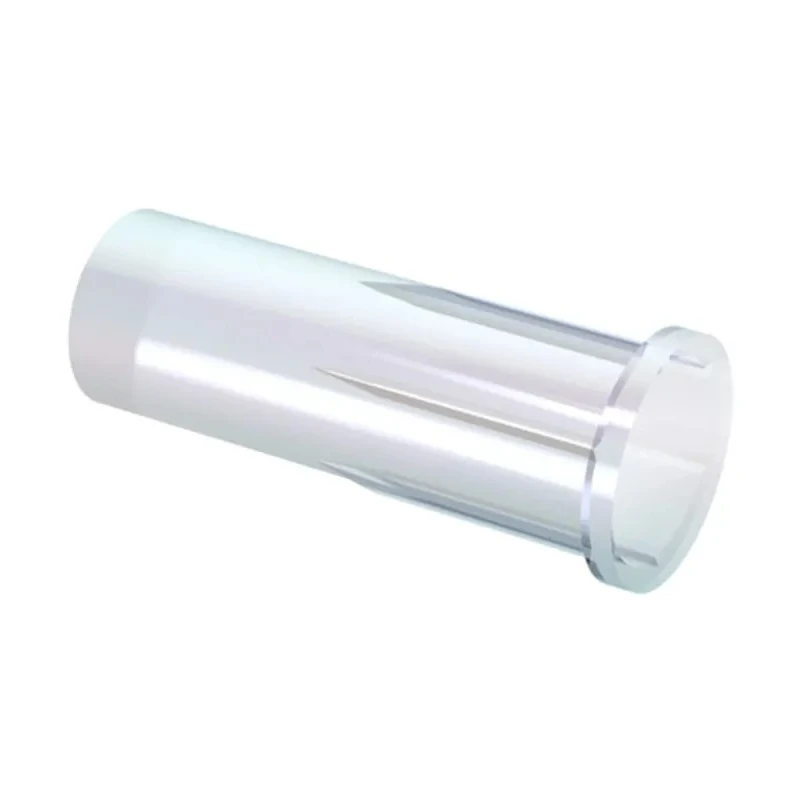

Mentor GmbH Panel Mount 1-Way Straight Rigid LED Light Pipe Clear, Yellow 1293.1800

Mentor GmbH 1293.1800 is a Panel Mount 1-Way Straight Rigid LED Light Pipe designed to efficiently transfer light from a PCB-mounted LED to the front panel. The light pipe is rigid with a length of 32.4 mm and a straight, 0° inject face that sits close to the LED, ensuring optimal light transmission without significant luminance loss or bleed.

The light pipe features a clear PC UL94 rated plastic construction that meets UL94 flammability standards. It has a spherical, planar, or counterbore shape to suit different design needs. The pipe measures 5 mm in outside diameter and 4 mm for the inside diameter, sized to fit typical LED configurations. This LED light pipe is designed to work efficiently with SMD LEDs from brands like OSRAM, including their SIDELED, TOPLED, and CHIPLED varieties.

Ideal for diverse industrial applications such as medical devices, security systems, communication equipment, and industrial controls, the Mentor GmbH 1293.1800 light pipe provides high ESD protection and is tested to function reliably in temperatures ranging from -40°C to +85°C.

The product enables simple front panel installation via push-fit mounting in holes, ensuring the light inject face aligns closely with the LED source. This design facilitates clean and precise panel illumination, avoiding light bleed between adjacent light pipes.

Manufactured in Germany, this panel mount light pipe conforms to strict quality and safety standards, making it a dependable choice for high-performance lighting applications in electronics and electrical engineering.

The light pipe is rigid and designed for panel mount applications. Its length measures 32.4 mm with a straight orientation. Constructed from clear PC material with UL94 flammability rating for safety. Features a spherical, planar, or counterbore light pipe shape.

The LED light pipe has an outside diameter of 5 mm and inside diameter of 4 mm. Compatible with SMD LEDs including SIDELED, TOPLED, and CHIPLED. Supports use in medical, security, communications, and industrial control equipment.

Operates in ambient temperatures from -40°C to +85°C. Provides excellent ESD protection and minimal luminance loss. Manufactured in Germany with UL94 certification. Explore the Electronics & Electricals category for additional LED Lighting Components and accessories available at EnvMart.
