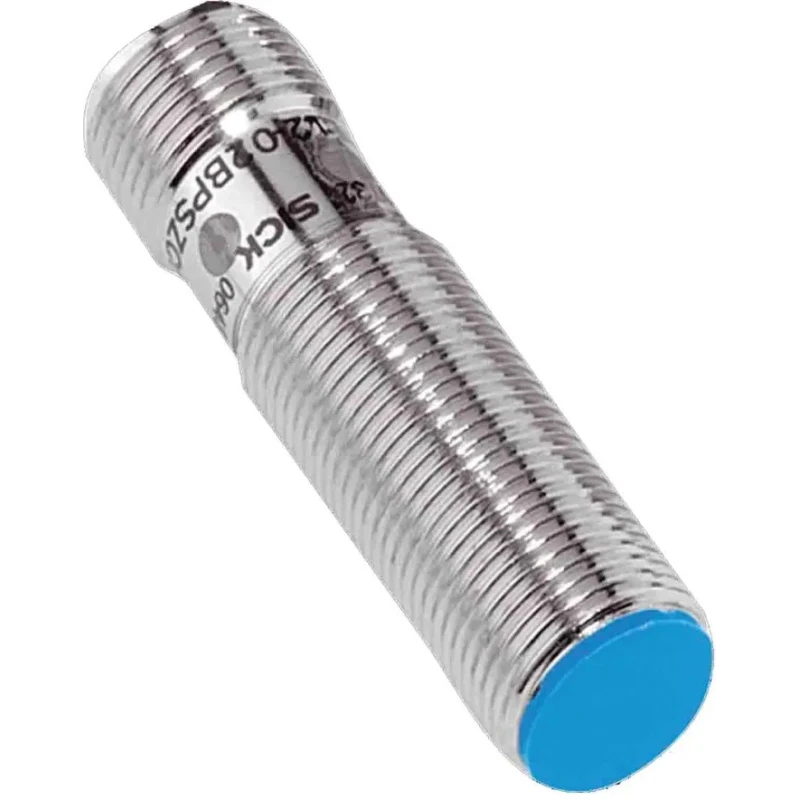

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 PNP 30V 200mA IME12-02BPOZC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 46mm |
| Model | IME12-02BPOZC0K |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IME12-02BPOZC0K |
| Maximum Operating Temperature | 75°C |
| Thread Size | M12 x 1 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Plastic |
| Maximum Detection | 2mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- The sensor features M12 x 1 threaded barrel body style with 46mm length and 12mm width.
- It operates at a maximum supply voltage of 30 V dc and switching current of 200 mA.
- Equipped with PNP output type and shielded design for reliable performance.
- IP67 rated metal housing ensures protection against dust and water ingress.
- Designed for a detection range of up to 2 mm on plastic materials.
- Operates reliably in temperature range from -25°C to 75°C.
- Flush mount type compatible with DC 3-/4-wire and DC 2-wire electrical configurations.
- Complies with EN 60947-5-2 standard ensuring industrial quality and safety.
Product Description
SICK IME12-02BPOZC0K is a Threaded Barrel Inductive Proximity Sensor designed for precise and reliable object detection in industrial automation environments. It features an M12 x 1 metal threaded barrel housing with a length of 46 mm and width of 12 mm, rated to IP67 for dust and water resistance, enabling robust operation in harsh conditions.
The sensor has a PNP output type with a maximum switching current of 200 mA and operates at up to 30 V dc supply voltage. Its shielded design provides accurate detection of plastic materials with a sensing distance of 2 mm. It supports flush mounting and is compatible with DC 2-wire and 3-/4-wire electrical configurations.
Operating reliably in temperatures from -25°C to 75°C, this proximity sensor meets the EN 60947-5-2 industrial standard, ensuring safety and compliance. Featuring a switching frequency up to 2 kHz, it is suitable for high-speed automation processes requiring fast and precise switching behavior.
This sensor is ideal for applications such as presence detection for car body parts, positioning tool carriers, end position detection, automated part handling, and zone detection in manufacturing, automotive, and material handling industries. The nickel-plated brass housing and integrated ASIC chip guarantee high repeatability and long service life.
Key benefits include high machine availability due to robust design, cost efficiency, wide selection from an extensive product portfolio, and high positioning accuracy aiding precise machine control. The encapsulated design increases shock and vibration resistance, supporting demanding industrial uses.
The sensor features M12 x 1 threaded barrel body with metal housing. Protection with IP67 enamel rated for dust and water ingress. Accurate detection up to 2 mm on plastic targets. Operating temperature range from -25°C to 75°C.
High switching frequency of 2 kHz for fast applications. PNP output type with 200 mA switching current. Flush mount and shielded design for precise sensing. Compatible with DC 2- and 3-/4-wire electrical configurations. Meets EN 60947-5-2 industrial standards.
Explore more industrial sensors and automation components in the Proximity Sensor category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is up to 2 mm on plastic materials.
It operates reliably in a temperature range from -25°C to 75°C.
This sensor features a PNP output type.
The maximum switching current is 200 mA.
The sensor has an IP67 rating, ensuring protection against dust and water ingress.
The sensor has a length of 46 mm and a width of 12 mm.
It supports DC 2-wire and DC 3-/4-wire electrical configurations.
The maximum supply voltage is 30 V dc.
The shielded design provides accurate detection, particularly for plastic materials, enhancing reliability in industrial applications.
It complies with the EN 60947-5-2 standard, ensuring industrial quality and safety.
The maximum switching frequency is 2 kHz, suitable for high-speed applications.
This model is designed to detect plastic materials.
