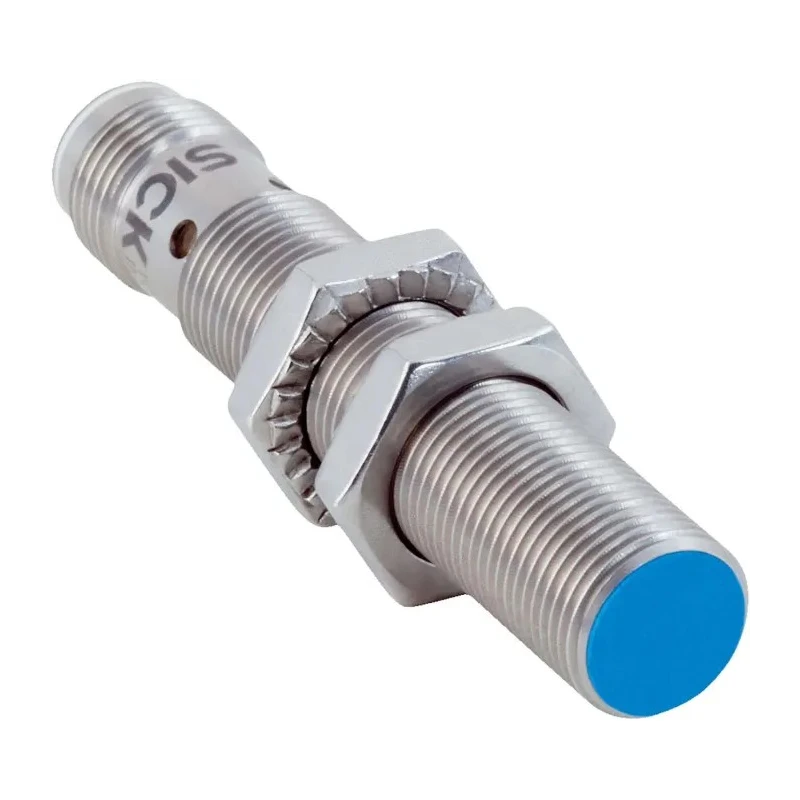

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 PNP 30 V dc 200mA 4 mm Sensing Distance IMB12-04BPSVC0S
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 40 °C to +100 °C |
| Length | 65mm |
| Model | IMB12-04BPSVC0S |
| IP Rating | IP68, IP69K |
| Width | 12mm |
| Mount Type | Flush |
| Housing Material | Stainless Steel |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IMB |
| Maximum Operating Temperature | 100°C |
| Thread Size | M12 x 1 |
| Enclosure Rating | IP 68, IP 69K |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 2kHz |
| Maximum Supply Voltage | 30V |
| Materials Detected | 304 V2A Stainless Steel, Aluminium, Brass, Copper, Steel |
| Maximum Detection | 4mm |
| Extended sensing ranges | 2 mm to 20 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
| Standards/ApprovalsEN 60529, EN 60947-5-2, ISO 20653 | 2013-03 |
Key Features
- Features a rugged stainless steel body with threaded M12 x 1 barrel design for flush mounting.
- Highly precise and extended sensing ranges enabled by advanced SICK ASIC technology.
- Supports operating temperatures from -40 °C to 100 °C and has an IP68, IP69K enclosure rating.
- Provides 4-pin terminal type with maximum switching frequency of 2 kHz and switching current of 200 mA.
- Compatible with materials including stainless steel, aluminum, brass, copper, and steel.
- Equipped with optical adjustment indicator and self-locking nuts for ease of installation.
- Includes IO-Link communication capabilities for enhanced automation integration.
- Ideal for industrial applications such as speed measurement, material transport monitoring, and door detection.
Product Description
SICK IMB12-04BPSVC0S Threaded Barrel Inductive Proximity Sensor, Model IMB12-04BPSVC0S, features a robust stainless steel housing with M12 x 1 threaded barrel design, operating at 30 V dc with a PNP output type supporting 200 mA switching current. This sensor delivers a maximum detection range of 4 mm with high precision, making it suitable for demanding industrial environments.
The sensor's extended sensing ranges and stability are achieved through advanced SICK ASIC technology, ensuring reliable performance even in harsh conditions including exposure to oils and cooling lubricants. It supports a temperature range from -40 °C to +100 °C and meets IP68 and IP69K ingress protection ratings for durability.
Installation is simplified with the inclusion of an optical adjustment indicator and self-locking nuts, allowing for quick and error-free setup. The sensor’s 4-pin terminal and IO-Link readiness offer flexible communication options for integration into automation systems.
Common applications include speed measurement, monitoring material transportation, position detection in automated doors, valve piston opening monitoring, and elevator shaft zone detection. The sensor detects various metals including 304 stainless steel, aluminum, brass, copper, and steel.
Rugged stainless steel threaded barrel design with M12 x 1 thread size. Extended sensing range up to 4 mm with high accuracy using ASIC technology. IP68, IP69K rated enclosure ensures protection against water and dust ingress.
Wide temperature operation range from -40 °C to 100 °C supports diverse environments. IO-Link communication enables versatile automation control capabilities. Maximum switching frequency of 2 kHz supports rapid response applications.
Optical adjustment indicator and self-locking nuts simplify installation and setup. Suitable for detecting stainless steel, aluminum, brass, copper, and steel.
Manufactured in Hungary, this new condition sensor adheres to standards EN 60529, EN 60947-5-2, and ISO 20653:2013-03. With its robust features and industrial-grade specifications, the SICK IMB12-04BPSVC0S is an excellent choice for automation and control gear applications requiring reliable metal detection and proximity sensing.
Explore the Electronics & Electricals category for more sensors and automation components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of the SICK IMB12-04BPSVC0S is 4 mm.
This model operates within a temperature range of -40 °C to +100 °C.
It can detect various metals including 304 stainless steel, aluminum, brass, copper, and steel.
The sensor has an IP68 and IP69K enclosure rating, ensuring protection against water and dust ingress.
The sensor features a 4-pin terminal type and operates with a PNP output configuration.
The maximum switching frequency of this model is 2 kHz.
It has an M12 x 1 thread size and is designed for flush mounting.
The sensor measures 65 mm in length and 12 mm in width.
The housing material is stainless steel, providing durability for industrial applications.
Yes, it includes IO-Link communication capabilities for enhanced automation integration.
This sensor adheres to standards EN 60529, EN 60947-5-2, and ISO 20653:2013-03.
The maximum switching current is 200 mA.
