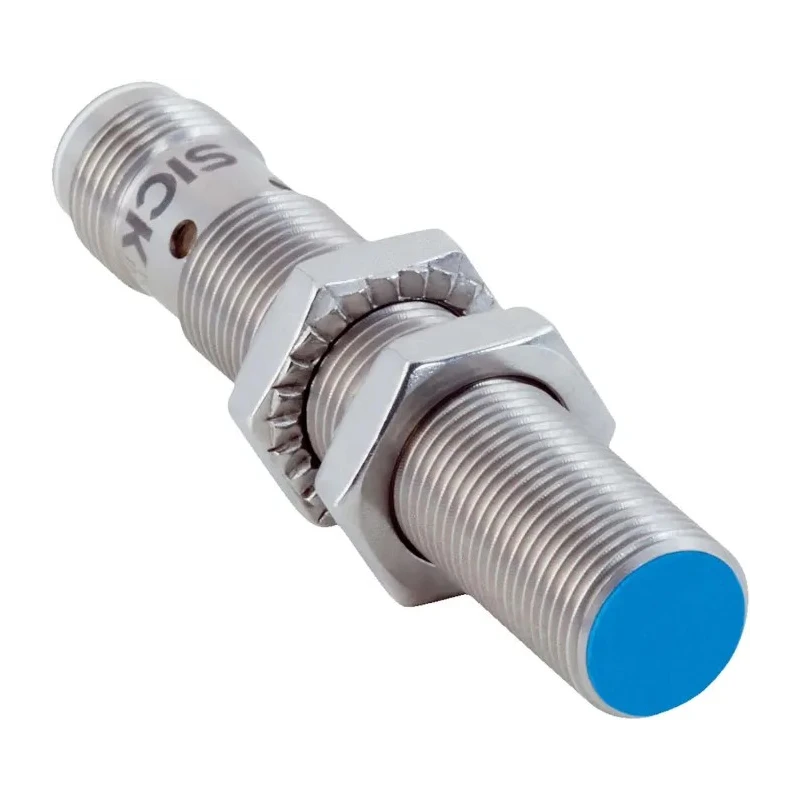

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 2-Wire 30 V dc 4 mm Sensing Range IMB12-04BDSVC0S
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 40 °C to +100 °C |
| Length | 65mm |
| Model | IMB12-04BDSVC0S |
| IP Rating | IP69K, IP68 |
| Width | 12mm |
| Mount Type | Flush |
| Housing Material | Stainless Steel |
| Types | M8 to M30 |
| Output type | 2-Wire |
| Series | IMB |
| Maximum Operating Temperature | 100°C |
| Thread Size | M12 x 1 |
| Enclosure Rating | IP 68, IP 69K |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance |
| Switching Current | 100mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 2kHz |
| Maximum Supply Voltage | 30V |
| Materials Detected | Plastic |
| Maximum Detection | 4mm |
| Extended sensing ranges | 2 mm to 20 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Robust stainless steel housing with plastic sensing face for durability.
- Extended sensing range enabled by latest SICK ASIC technology.
- IP68 and IP69K rated for resistance to water and dust ingress.
- Operates reliably between -40°C and 100°C temperature range.
- Support for IO-Link communication enabling flexible automation.
- Flush mount type with self-locking nuts for secure installation.
- Switching current of 100mA suitable for industrial control circuits.
- Maximum switching frequency of 2kHz ensuring quick response times.
Product Description
The SICK IMB12-04BDSVC0S is a high-performance threaded barrel inductive proximity sensor designed for industrial automation and control applications. Its robust stainless steel body with a plastic sensing face ensures durability and long service life even in harsh environments.
Featuring an M12 x 1 thread size and flush mounting, this sensor is easy to install and mechanically secure thanks to included self-locking nuts. The sensor operates reliably under extreme temperature ranges from -40°C to +100°C and is protected against water and dust ingress with IP68 and IP69K ratings.
Equipped with the latest SICK ASIC technology, it offers extended and highly precise sensing ranges of up to 4 mm, enabling stable process monitoring. The 2-wire output configuration supports a switching current of 100mA and a maximum switching frequency of 2kHz, suitable for fast industrial control signals.
This sensor is also IO-Link ready, allowing advanced communication capabilities and integration with automated manufacturing systems. Its shielded design helps minimize electromagnetic interference, ensuring reliable operation in demanding industrial conditions.
Applications include speed measurement, material transportation monitoring, valve piston position detection, forklift height measurement, door and gate detection in elevators and revolving doors, as well as position determination in various industrial machinery.
Robust stainless steel housing with plastic sensing face for durability. Extended sensing range enabled by latest SICK ASIC technology. IP68 and IP69K rated for resistance to water and dust ingress. Operates reliably between -40°C and 100°C temperature range.
Support for IO-Link communication enabling flexible automation. Flush mount type with self-locking nuts for secure installation. Switching current of 100mA suitable for industrial control circuits. Maximum switching frequency of 2kHz ensuring quick response times.
Shielded design minimizes electromagnetic interference. Complies with EN 60947-5-2 and ISO 20653 standards for industrial sensors.
This sensor is manufactured in Hungary and is ideal for a wide range of industrial, automation, manufacturing, HVAC, and material handling applications. Explore more Proximity Sensors and automation components on EnvMart for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensing range of this model is up to 4 mm, with extended sensing capabilities ranging from 2 mm to 20 mm.
It operates reliably within a temperature range of -40°C to +100°C.
This model features a 2-wire output configuration suitable for industrial control circuits.
The maximum switching frequency is 2 kHz, ensuring quick response times for industrial applications.
It has an IP68 and IP69K rating, providing resistance to water and dust ingress.
This model is designed to detect plastic materials.
It is a flush mount type and is secured using self-locking nuts for installation.
The housing is made of stainless steel, which contributes to its durability.
The maximum switching current is 100 mA, suitable for industrial control circuits.
It features an M12 x 1 thread size for compatibility with various mounting applications.
Yes, this model supports IO-Link communication, enabling flexible automation integration.
This sensor is manufactured in Hungary.
