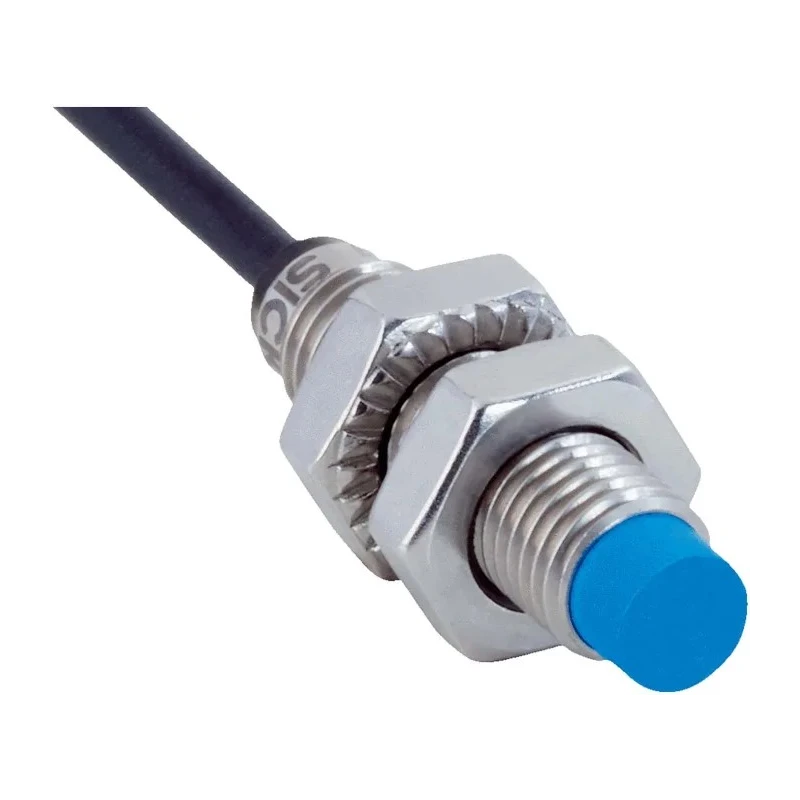

SICK Threaded Barrel Inductive Proximity Sensor M8 x 1 2-Wire 30 V dc 100 mA IMB08-04NDSVU2K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 40 °C to +100 °C |
| Length | 32mm |
| Model | IMB08-04NDSVU2K |
| IP Rating | IP68, IP69K |
| Width | 8mm |
| Mount Type | Non-Flush |
| Housing Material | Stainless Steel |
| Types | M8 to M30 |
| Output type | 2-Wire |
| Series | IMB |
| Maximum Operating Temperature | 100°C |
| Thread Size | M8 x 1 |
| Enclosure Rating | IP 68, IP 69K |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance |
| Switching Current | 100mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 4kHz |
| Maximum Supply Voltage | 30V |
| Materials Detected | Plastic |
| Maximum Detection | 4mm |
| Extended sensing ranges | 2 mm to 20 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
| Standards/ApprovalsEN 60947-5-2, EN 60529, ISO 20653 | 2013-03 |
Key Features
- Threaded barrel housing ensures stable mounting in industrial environments.
- Pre-cabled 2-wire output suitable for DC 30 V operation.
- Operating temperature range from -40°C to 100°C supports various applications.
- IP68 and IP69K ratings provide excellent protection against dust and water ingress.
- Unshielded sensor with a switching frequency up to 4 kHz for fast response.
- Designed for plastic material detection with a 4 mm sensing range.
- Optical adjustment indicator simplifies alignment and setup.
- Suitable for outdoor use and resistant to oils and cooling lubricants.
Product Description
SICK IMB08-04NDSVU2K Threaded Barrel Inductive Proximity Sensor M8 x 1 2-Wire 30 V dc 100 mA is a precision sensor designed for reliable detection of plastic materials in demanding industrial applications. Its rugged stainless steel housing with a threaded barrel ensures robust mounting and durability in harsh environments.
The sensor supports a maximum supply voltage of 30 V dc and delivers a switching current up to 100 mA with a fast switching frequency of 4 kHz, making it suitable for dynamic sensing tasks. It operates effectively within a wide temperature range from -40°C to +100°C and carries IP68 and IP69K ingress protection ratings, assuring resistance to dust, water, and high-pressure cleaning.
This inductive Proximity Sensor features a non-flush mounting design and an unshielded sensing face for extended sensing ranges between 2 mm to 20 mm, providing high precision and process stability thanks to SICK ASIC technology. The optical adjustment indicator and self-locking nuts facilitate quick and error-free installation and commissioning.
With IO-Link communication capability, the IMB08-04NDSVU2K offers flexibility for smart manufacturing and automation systems. It is well suited for applications such as speed measurement, material transportation monitoring, valve piston position sensing, door leaf detection, and position determination in various industrial settings including manufacturing, elevator systems, and logistics.
Its resistance to oils and cooling lubricants makes the sensor reliable for contact with industrial fluids and suitable for outdoor uses. The extensive standard portfolio allows for fast deployment and tailored configurations.
Threaded barrel housing for secure mounting. 2-wire electrical configuration with DC 30 V supply. IP68 and IP69K ratings for robust environmental protection. Operating temperature range from -40°C to 100°C. Maximum detection range of 4 mm for plastic materials.
Fast switching frequency of up to 4 kHz. Optical adjustment indicator and self-locking nuts simplify setup. Unshielded sensor for enhanced sensing range. Communication via IO-Link interface. Compact dimensions of 32 mm length and 8 mm diameter.
Explore more industrial sensors and proximity detectors in the Electronics & Electricals section at EnvMart for specialized automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 4 mm for plastic materials, with extended sensing ranges between 2 mm to 20 mm.
It operates effectively within a temperature range from -40°C to +100°C.
This sensor has IP68 and IP69K ratings, providing excellent protection against dust and water ingress.
It features a 2-wire output configuration suitable for DC 30 V operation.
The maximum switching frequency is up to 4 kHz, allowing for fast response in dynamic sensing tasks.
This model is designed for detecting plastic materials.
The housing material is stainless steel, which ensures durability in industrial environments.
The sensor has a length of 32 mm and a diameter of 8 mm.
Yes, it supports IO-Link communication, offering flexibility for smart manufacturing and automation systems.
It features an optical adjustment indicator and self-locking nuts, which facilitate quick and error-free installation.
It complies with EN 60947-5-2, EN 60529, and ISO 20653 standards.
The maximum supply voltage for this model is 30 V dc.
