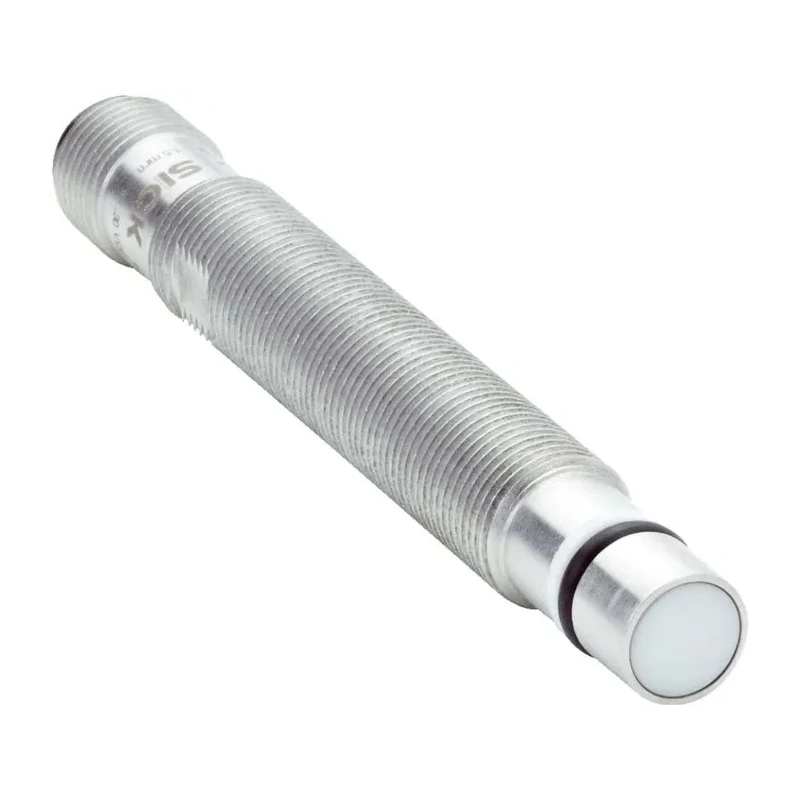

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1 PNP 30 V dc 200 mA IMP12-1B5PSVC0F

The SICK IMP12-1B5PSVC0F is a threaded barrel inductive Proximity Sensor designed for precise detection of metal objects. Featuring an M12 x 1 thread size and a robust stainless steel housing, this sensor provides durability and resistance in demanding industrial environments, supporting mounting flush with the surrounding surface.

Operating at a maximum supply voltage of 30 V dc, it delivers a reliable PNP output with a 4-pin terminal configuration suitable for various automation controls. The sensor detects metallic targets within a range of 1.5 mm and functions effectively within a temperature range of -25°C to 80°C.

This sensor is rated to IP68, ensuring protection against dust and water ingress, and features an unshielded design with a high switching frequency of up to 600 Hz. Its ceramic active surface and stainless steel body can withstand pressure up to 500 bar, making it ideal for hydraulic cylinder end position sensing and applications requiring high resilience.

With an expected service life of up to one million pressure cycles, the IMP12-1B5PSVC0F sensor reduces maintenance costs and enhances system reliability. Its compact and robust design ensures easy integration and compensates for cylinder tolerances in industrial automation systems.

Threaded barrel construction with M12 x 1 dimensions for secure mounting. Maximum supply voltage rating of 30 V dc with PNP output response. Detects metallic objects at distances up to 1.5 mm with high reliability. Stainless steel housing paired with ceramic active surface allows pressure resistance up to 500 bar.

Ingress protection rated at IP68 suitable for harsh industrial environments. Operating temperature span from -25°C to 80°C supports versatile applications. High switching frequency of 600 Hz for responsive sensing tasks.

Unshielded design ideal for end position detection in hydraulics and automation. Pressure-tight gas front ensures sensor longevity and durability. Perfect for controlling piston deceleration and collision prevention in hydraulic cylinders.

Typical industrial applications include hydraulic cylinder stroke end detection, piston position monitoring, and automated production lines requiring precise metal detection under high pressure and challenging conditions. The sensor complies with EN 60947-5-2 (EMC) standards for operational safety and electromagnetic compatibility.
