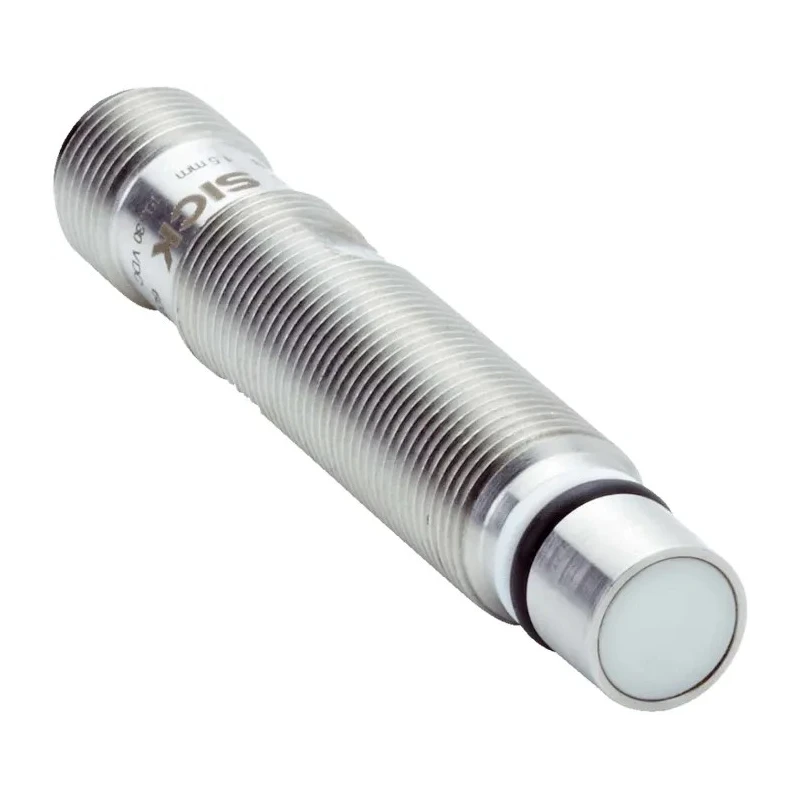

SICK Threaded Barrel Inductive Proximity Sensor M12 x 1, PNP Output, 30 V DC, 1.5 mm Sensing Distance IMP12-1B5PPVC0B
Specifications
| Country of Origin | China |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +100 °C |
| Length | 56mm |
| Model | IMP12-1B5PPVC0B |
| IP Rating | IP68 |
| Width | 12mm |
| Mount Type | Flush |
| Housing Material | Stainless Steel |
| Types | M5, M8, M12 and M14 |
| Output type | PNP |
| Series | IMP12 |
| Maximum Operating Temperature | 100°C |
| Thread Size | M12 x 1 |
| Enclosure Rating | IP 68 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 600Hz |
| Standards/Approvals | EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 1.5mm |
| Extended sensing ranges | 1 mm to 3 mm |
| Electrical configuration | DC 3- and 4-wire |
Key Features
- The sensor features an M12 x 1 threaded barrel design for flush mounting.
- It provides a PNP output with a maximum switching current of 200 mA.
- Operates reliably at supply voltages up to 30 V DC.
- Has a precise sensing distance of 1.5 mm for metal detection.
- Rated to IP68 for dust and water resistance in harsh environments.
- Designed for temperature ranges from -25°C to +100°C.
- Unshielded sensor housing made of stainless steel with ceramic active surface.
- Capable of withstanding pressure up to 500 bar, making it ideal for hydraulic cylinders.
Product Description
The SICK IMP12-1B5PPVC0B is a threaded barrel inductive proximity sensor designed for precision metal detection in industrial environments.
This sensor utilizes a robust stainless steel housing with an active surface made from high-performance ceramic, ensuring durability and resistance to pressure up to 500 bar, suitable for integration into hydraulic cylinders and other demanding applications.
Its compact M12 x 1 threaded barrel design enables flush mounting, facilitating secure and space-efficient installation.
The sensor operates on supply voltages up to 30 V DC, featuring a PNP output with a switching current capacity of 200 mA, supporting fast switching frequencies up to 600 Hz for high-speed detection tasks.
With an IP68 rating, the device offers excellent protection against dust ingress and prolonged water submersion, allowing reliable operation in harsh industrial settings.
The temperature range from -25°C to +100°C accommodates diverse operating environments, while unshielded sensing and extended sensing ranges (1 mm to 3 mm) enable precise piston stroke end-position detection in hydraulic systems.
This product is rated for compliance with EN 60947-5-2 standards, ensuring safety and interoperability in control systems.
Package contents and additional technical details can be found in the product datasheet. This sensor is a preferred choice for industrial automation, construction machinery, and hydraulic system monitoring, providing long service life with minimized maintenance.
The sensor features an M12 x 1 threaded barrel design for flush mounting. It provides a PNP output with a maximum switching current of 200 mA. Operates reliably at supply voltages up to 30 V DC. Has a precise sensing distance of 1.5 mm for metal detection.
Rated to IP68 for dust and water resistance in harsh environments. Designed for temperature ranges from -25°C to +100°C. Unshielded sensor housing made of stainless steel with ceramic active surface. Capable of withstanding pressure up to 500 bar, making it ideal for hydraulic cylinders.
Switching frequency is rated up to 600 Hz for rapid response. Electrical configuration supports DC 3- and 4-wire connections. Explore a wide range of Proximity Sensors and industrial sensors on EnvMart for varied automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sensing distance for this model is 1.5 mm for metal detection.
It has a maximum switching current capacity of 200 mA.
This sensor operates reliably at supply voltages up to 30 V DC.
It is designed to operate within a temperature range of -25 °C to +100 °C.
The sensor is rated IP68, providing excellent protection against dust and water.
It features a PNP output type.
This model is capable of detecting metal materials.
The housing is made of stainless steel with a ceramic active surface.
The sensor has a length of 56 mm and a width of 12 mm.
The maximum switching frequency is rated at 600 Hz.
It features a flush mounting type with a threaded barrel design.
This sensor complies with the EN 60947-5-2 standards.
