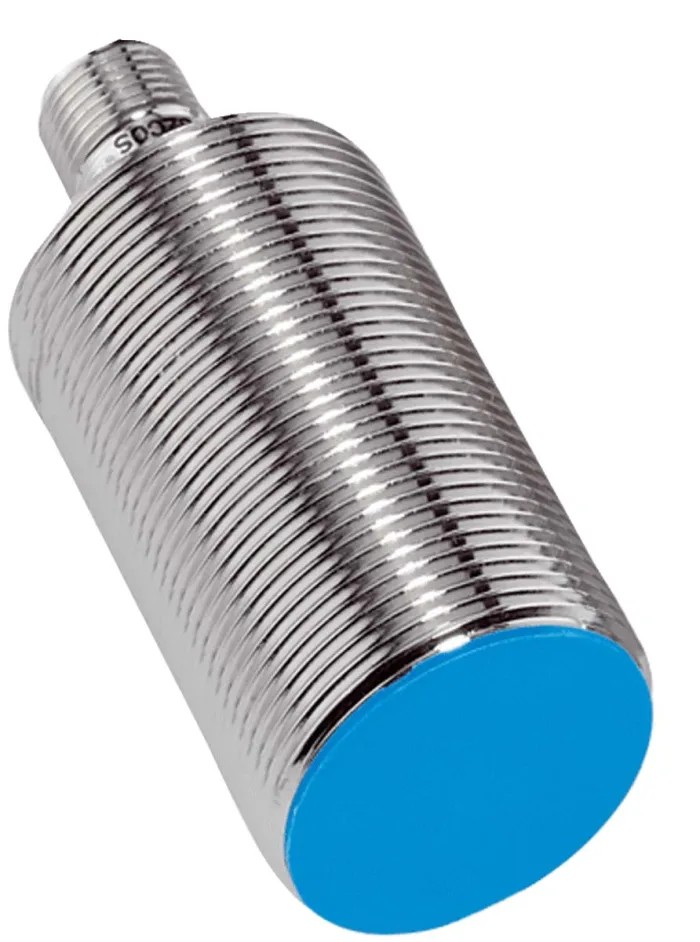

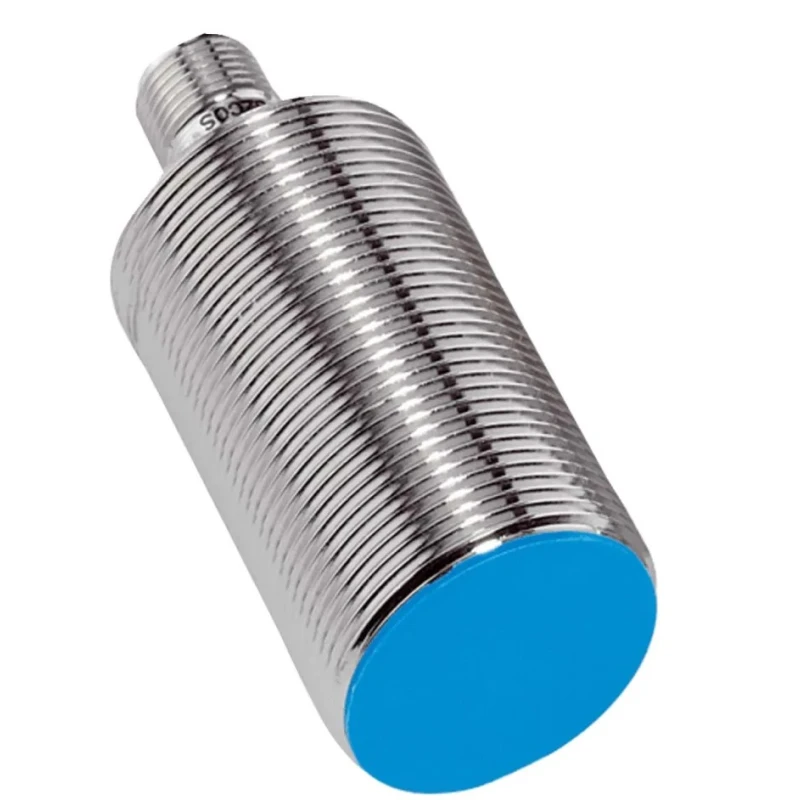

SICK Threaded Barrel Inductive Proximity Sensor M30 x 1.5 2-Wire 30V 100mA IME30-15BDSZC0S
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 71mm |
| Model | IME30-15BDSZC0S |
| IP Rating | IP67 |
| Width | 30mm |
| Mount Type | Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | 2-Wire |
| Series | IME30 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M30 x 1.5 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 500Hz |
| Standards/Approvals | EN 60947-5-2, EN 60529 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 15mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- Operates at 30V DC voltage for robust electrical compatibility.
- Offers a maximum detection range of 15 mm for metal objects.
- Equipped with a 2-wire output type ensuring straightforward wiring.
- Has an IP67 rating providing protection against dust and water ingress.
- Designed with a nickel-plated brass housing and plastic sensing face for durability.
- Functions accurately within an operating temperature range of -25°C to +75°C.
- Supports a maximum switching frequency of 500 Hz for high-speed applications.
- Includes 4-pin terminal type for connection flexibility.
Product Description
SICK IME30-15BDSZC0S Threaded Barrel Inductive Proximity Sensor is a precision device engineered for industrial detection of metal objects with high accuracy and reliability. Featuring a robust M30 x 1.5 threaded barrel design and nickel-plated brass body, it offers excellent mechanical strength and resistance to environmental factors. The sensor supports a maximum voltage supply of 30V DC and a switching current of up to 100mA through a 2-wire output configuration, making it adaptable for numerous automation and control systems.
This Proximity Sensor is rated IP67, ensuring ingress protection against dust and water, suitable for harsh industrial environments. Its sensing range extends up to 15 mm, optimized for reliable detection of metal targets. The device operates within a temperature range of -25°C to 75°C, accommodating typical industrial temperature variations.
The sensor includes a plastic sensing face that improves sensitivity and durability. High switching frequency capability of 500 Hz enables use in dynamic, high-speed manufacturing and automation processes. The shielded design minimizes signal interference, enhancing consistent sensor performance.
Certified to EN 60947-5-2 for industrial control equipment and EN 60529 for enclosure protection, this sensor adheres to industry standards, providing confidence for diverse applications. Typical uses include presence detection in automotive manufacturing, positioning in assembly lines, monitoring of machine components, end position detection, and non-contact metal object sensing in packaging and material handling equipment.
Integration possibilities include installation in conveyor systems, robotic tooling stations, sheet metal storage monitoring, and assembly verification tasks. Its robust construction and precise switching behavior help reduce downtime and increase machine availability in manufacturing, industrial automation, HVAC, and water treatment sectors.
Operates at 30V DC with 100mA switching current through 2-wire output. Threaded barrel housing M30 x 1.5 with IP67 protection rating. Maximum detection distance of 15 mm for metal objects. Operating temperature range from -25°C to +75°C for extended use.
Shielded design reduces interference for precise detection. High switching frequency of 500 Hz supports rapid operation. Constructed with nickel-plated brass and plastic sensing face for durability. Flush mountable for installation flexibility.
Certified to EN 60947-5-2 and EN 60529 standards. Explore more sensors and automation components within EnvMart’s Electronics & Electricals category for comprehensive industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 15 mm for metal objects.
It operates within a temperature range of -25°C to +75°C.
This model features a 2-wire output type, which simplifies wiring.
The maximum switching frequency is 500 Hz, allowing for high-speed applications.
It has an IP67 rating, providing protection against dust and water ingress.
It is designed to detect metal objects.
The sensor has a length of 71 mm and a width of 30 mm.
The housing is made of nickel-plated brass, ensuring durability.
It includes a 4-pin terminal type for connection flexibility.
It is certified to EN 60947-5-2 and EN 60529 standards for industrial control equipment and enclosure protection.
Yes, it is designed for flush mounting, providing installation flexibility.
The maximum supply voltage is 30V DC.
