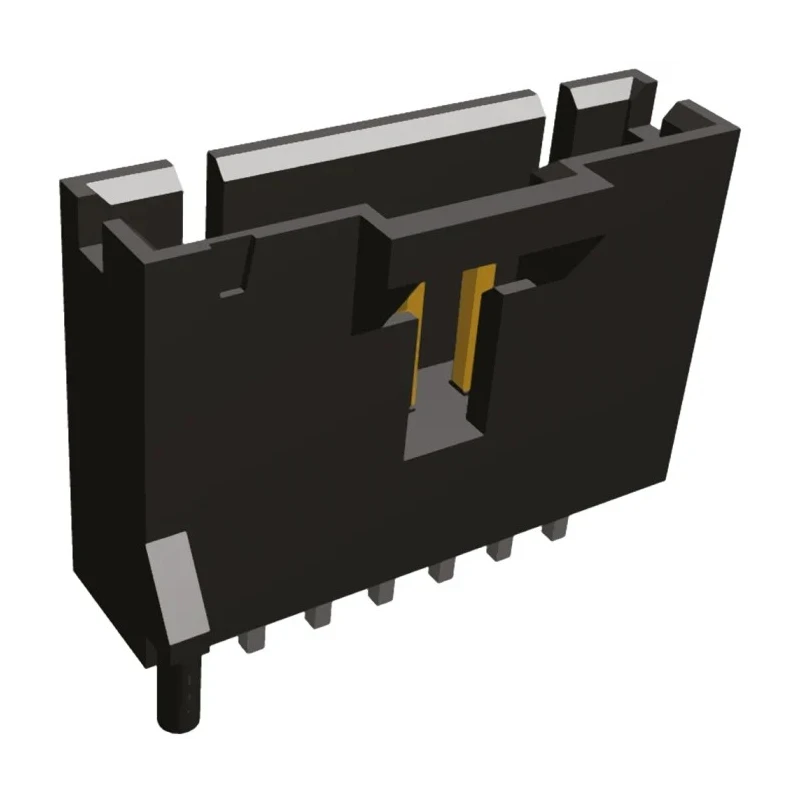

TE Connectivity AMPMODU MTE Series Straight Through Hole PCB Header 7 Contacts 2.54 mm Pitch 1 Row Shrouded 5-104809-6
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 40V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MTE |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
| Mating Pin Length | 5.84mm |
Key Features
- 7-contact straight through hole PCB header with 2.54 mm pitch.
- Constructed with thermoplastic housing for high-temperature applications.
- Brass contact material with gold plating ensures reliable conductivity.
- Designed with shrouded, single-row orientation to prevent misalignment.
- Supports up to 3A current and voltage rating of 40V.
- Solder termination type with male contact gender and 3.3 mm tail pin length.
- Operates reliably in temperature range from -55°C to 105°C.
- Mating pin length of 5.84 mm for secure interfacing.
Product Description
TE Connectivity 5-104809-6 AMPMODU MTE series Straight Through Hole PCB Header features 7 contacts with 2.54 mm pitch in a single-row, shrouded configuration. It supports a current rating of 3A and voltage up to 40V, making it suitable for various electronic circuit board designs.
The connector housing is made from high temperature UL 94V-0 rated thermoplastic, which confers high resistance to thermal stress during soldering processes. The brass contacts plated with gold ensure excellent electrical conductivity and corrosion resistance.
This PCB header supports through-hole mounting and features a solder termination type with a 3.3 mm tail pin length for reliable solder joints. Its design includes an integral latch to provide positive retention between header and receptacle, enhancing mechanical stability. Operating temperature ranges from -55°C to 105°C allow use in diverse industrial environments.
The AMPMODU MTE interconnection system enables efficient mass termination of wires using insulation displacement contact (IDC) technology, reducing assembly time and cost. Its compatibility with wire-to-board systems makes it versatile for industrial electronics, manufacturing, telecommunications, and automation applications.
Features include a secure single-row arrangement with shrouded housing to prevent accidental contact and ensure precise connector orientation. The connector is designed and manufactured in the United States, promising quality and compliance with industry standards.
7-contact straight through hole PCB header with 2.54 mm pitch. Thermoplastic housing material with high-temperature resistance. Gold-plated brass contacts for superior conductivity. Shrouded, single-row design for secure, precise connections.
Supports 3A current and 40V operating voltage. Solder termination type suitable for durable PCB mounting. Operating temperature from -55°C to 105°C. Includes integral latch for positive retention and PCB orientation. Suitable for industrial, manufacturing, and telecommunications uses.
Explore the TE Connectivity brand and AMPMODU MTE series for reliable PCB interconnections at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3A.
The voltage rating is 40V.
The pitch size is 2.54 mm.
It features a solder termination type.
It operates reliably within a temperature range from -55°C to 105°C.
The tail pin length is 3.3 mm.
This model has 7 contacts.
The housing is made of thermoplastic, and the contacts are brass with gold plating.
It features a straight orientation in a single-row, shrouded design.
It is manufactured in the United States.
It is suitable for industrial electronics, manufacturing, telecommunications, and automation applications.
The mating pin length is 5.84 mm.
