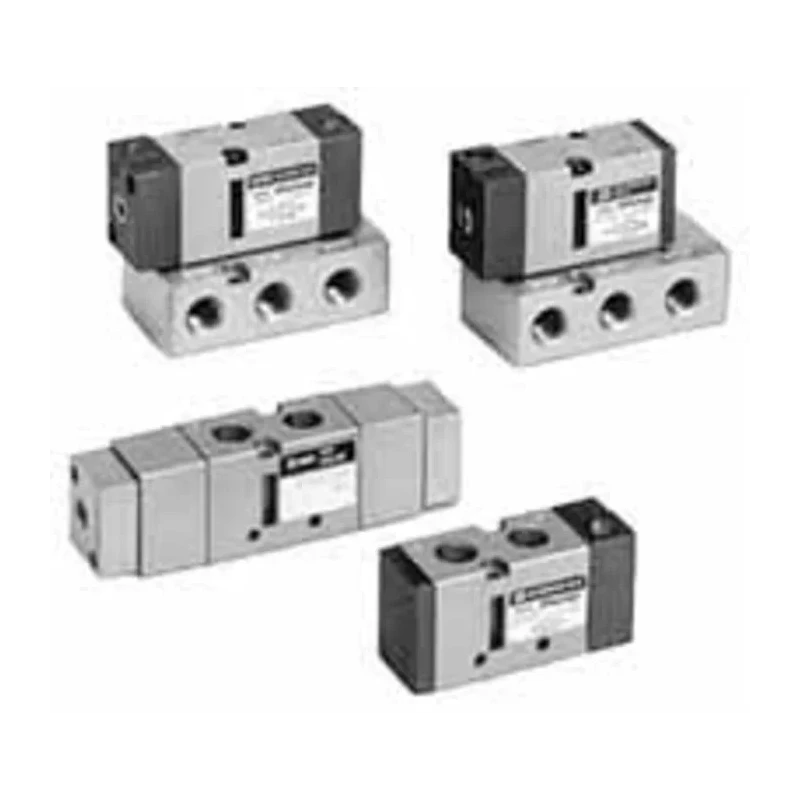

SMC Pneumatic Solenoid Valve 5/2 Solenoid NPT Manifold Type 1/4 in Port Size Double Solenoid Actuation VFA3230-02N

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 5/2 Solenoid NPT Manifold Type 1/4 in Port Size Double Solenoid Actuation VFA3230-02N



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	0.9 Mpa
Height	36mm
Length	63.5mm
Model	VFA3230-02N
Width	26.4mm
Mount Type	Manifold
Series	VFA
Number Of Ports	5
Maximum Operating Temperature	60°C
Port Type	Threaded
Number of Positions	2
Port Size	1/4 in
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Standards/Approvals	RoHS
Connection Thread Standard	NPT
Minimum Pilot Pressure	0.1MPa
Valve Function	5/2
Solenoid Type	Double
Port Gender	Female

Key Features

Features a 5-port, 2-position valve function enabling efficient control.
Constructed with a threaded 1/4 inch NPT female port for secure connections.
Double solenoid actuation provides reliable and precise valve operation.
Supports maximum operating pressure up to 0.9 MPa and pilot pressure range 0.1 to 0.9 MPa.
Operates reliably within temperature range from -10°C to 60°C ensuring versatility in different environments.
Compact dimensions with 63.5mm length, 36mm height, and 26.4mm width facilitate easy installation.
Complies with RoHS standards and is made in Japan assuring quality and environmental compliance.
Manifold mount type supports integration into pneumatic systems efficiently.

Product Description

SMC VFA3230-02N Pneumatic Solenoid Valve 5/2 Solenoid NPT is a compact and high-performance valve designed for precise control of pneumatic systems.

The valve features a 5-port configuration with two positions, ideal for pneumatic applications requiring effective directional control. Its threaded female port of size 1/4 inch conforms to the NPT standard, ensuring secure and leak-free connections in industrial setups.

The double solenoid actuation mechanism ensures reliable on-off control with quick response times. Operating pressure can be maintained up to 0.9 MPa, with pilot pressures ranging between 0.1 to 0.9 MPa. It functions efficiently within an operating temperature range of -10°C to 60°C, making it suitable for diverse industrial environments.

This valve’s compact design with dimensions 63.5mm length, 36mm height, and 26.4mm width allows for easy integration into pneumatic control manifolds and systems where space is limited. Manufactured in Japan, it adheres to RoHS compliance standards to ensure environmental safety and product reliability.

Applications for this valve include industrial automation, fluid power control, pneumatic machinery, and manufacturing process control where precise pneumatic flow direction and switching functions are needed.

Features a 5-port, 2-position valve function enabling efficient control. Constructed with a threaded 1/4 inch NPT female port for secure connections. Double solenoid actuation provides reliable and precise valve operation.

Supports maximum operating pressure up to 0.9 MPa and pilot pressure range 0.1 to 0.9 MPa. Operates reliably within temperature range from -10°C to 60°C ensuring versatility in different environments. Compact dimensions with 63.5mm length, 36mm height, and 26.4mm width facilitate easy installation.

Complies with RoHS standards and is made in Japan assuring quality and environmental compliance. Manifold mount type supports integration into pneumatic systems efficiently.

This SMC Pneumatic Solenoid Valve is suitable for use in industrial pneumatic systems, manufacturing lines, automation solutions, and fluid power plants requiring precise solenoid valve control. Explore EnvMart to find more pneumatic valves and related industrial automation products designed to optimize your system performance.
