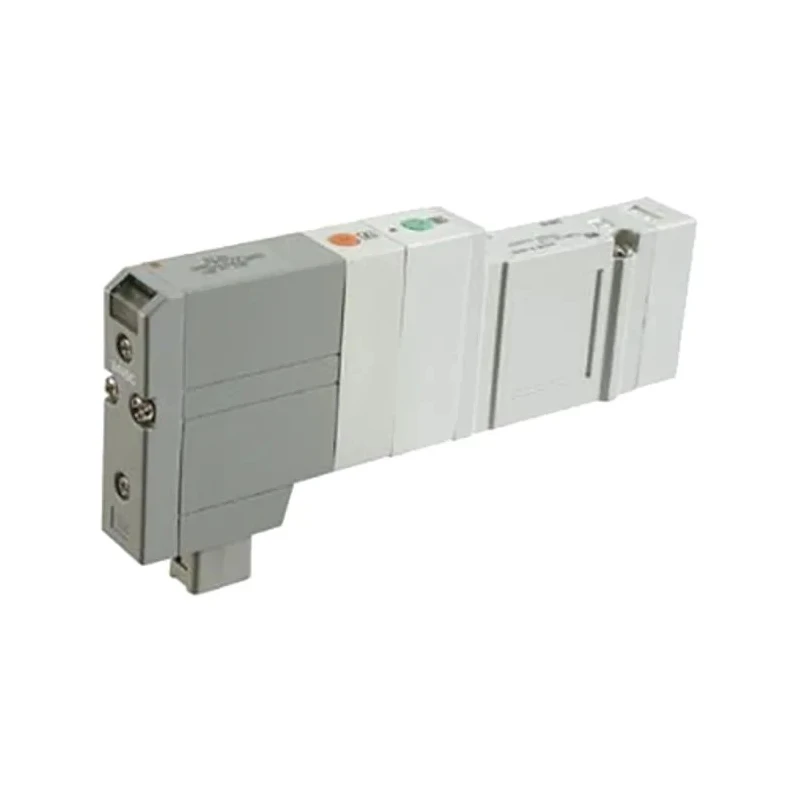

SMC Pneumatic Solenoid Valve 5/2 Port Single Solenoid 24V DC Die Cast Aluminium SV1000

SMC SV1100-5FUD Pneumatic Solenoid Valve 5/2 port single solenoid model from the SV1000 series, rated at 24V DC, is engineered for high performance and flexibility in pneumatic system applications. This valve is constructed from durable die cast aluminium and features a plug-in mount design, ensuring ease of installation and maintenance.

The valve operates with 5 female ports and offers 2 switching positions, facilitating diverse fluid power control requirements in industrial environments. It supports a maximum operating pressure of 0.7 MPa and a pilot pressure range between 0.15 MPa and 0.7 MPa, suitable for many pneumatic automation tasks.

Designed to perform reliably within a temperature range of -10°C to 50°C, the valve includes a rubber seal to prevent leaks and ensure operational integrity. Electrical connection is facilitated via a D-Sub connector, providing stable communication with control systems.

SMC's SV1000 series features a light/surge voltage suppressor and a push-turn locking slotted type for robust actuation. Response time at 0.5 MPa is 18 milliseconds or less, enabling swift control actions. The valve is CE and cULus approved, confirming adherence to industry safety and quality standards.

This valve caters to industrial, manufacturing, automation, and fluid power applications, where reliable pneumatic valve operation is critical. Its compact size with dimensions of 135.5mm length, 68.2mm width, and 92.2mm height ensures it fits well into various pneumatic manifolds.

Voltage rating is 24V DC for efficient solenoid operation. Valve features 5 ports with 2 positions for versatile pneumatic control. Constructed with die cast aluminium body ensuring durability and lightweight. Operating pressure range up to 0.7 MPa suitable for various industrial conditions.

Includes D-Sub electrical connection type for secure interfacing. Compact dimensions of 135.5mm length, 68.2mm width, and 92.2mm height enable easy installation. Operating temperature ranges from -10°C to 50°C for wide environmental adaptability.

Seal material is rubber providing reliable sealing performance. Features light/surge voltage suppressor and push-turn locking slotted type mechanism. Meets CE and cULus standards for quality and safety assurance. Discover the versatile SMC SV1100-5FUD series solenoid valves for all your pneumatic valve control needs in industrial automation and fluid power management, available at EnvMart.
