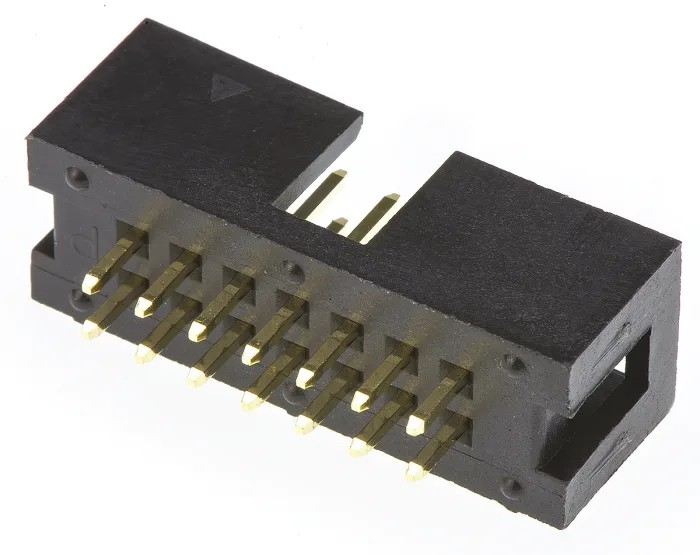

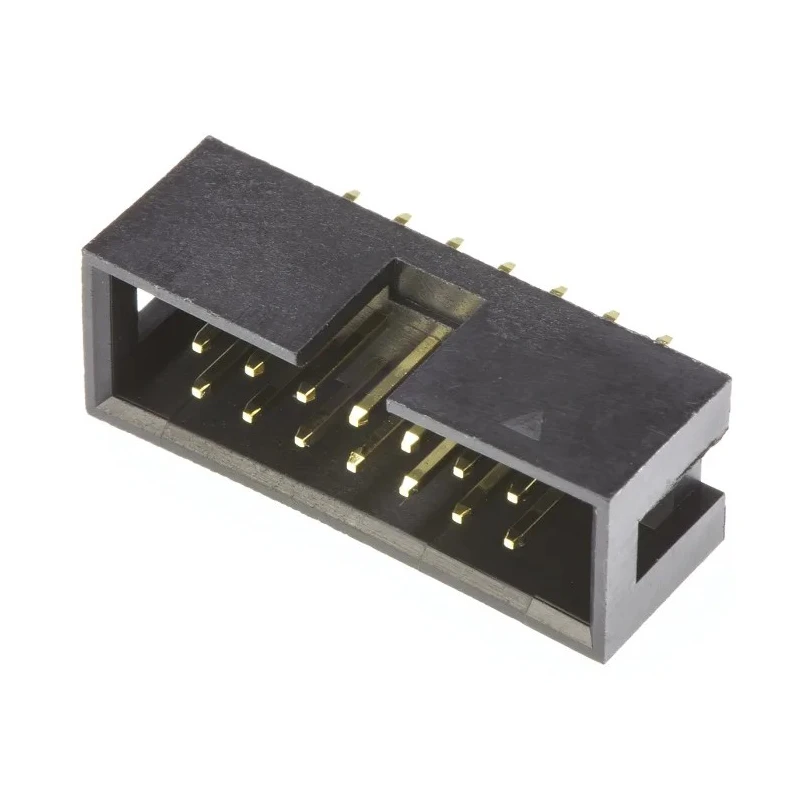

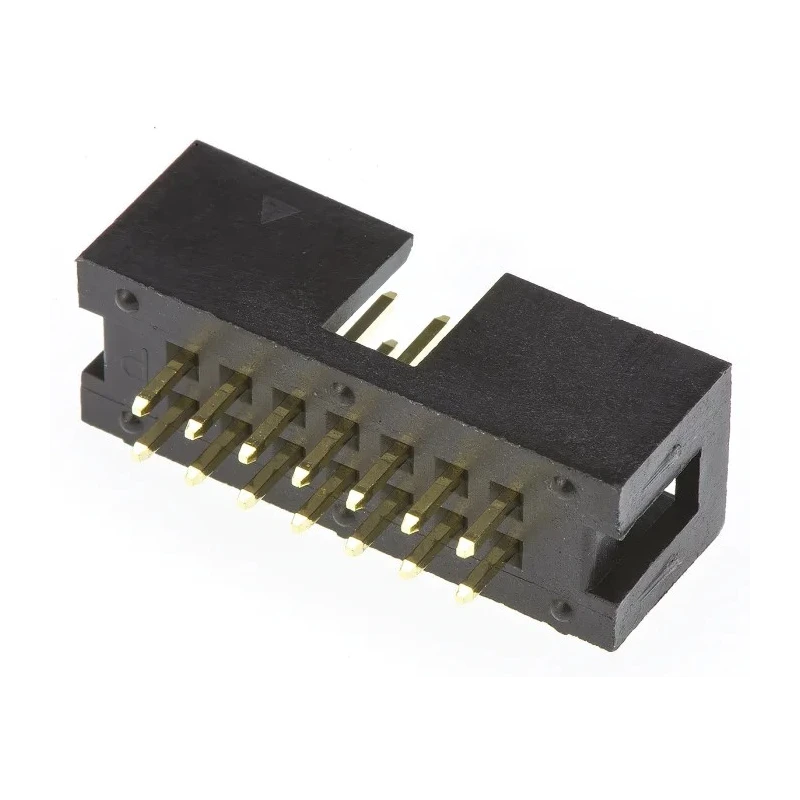

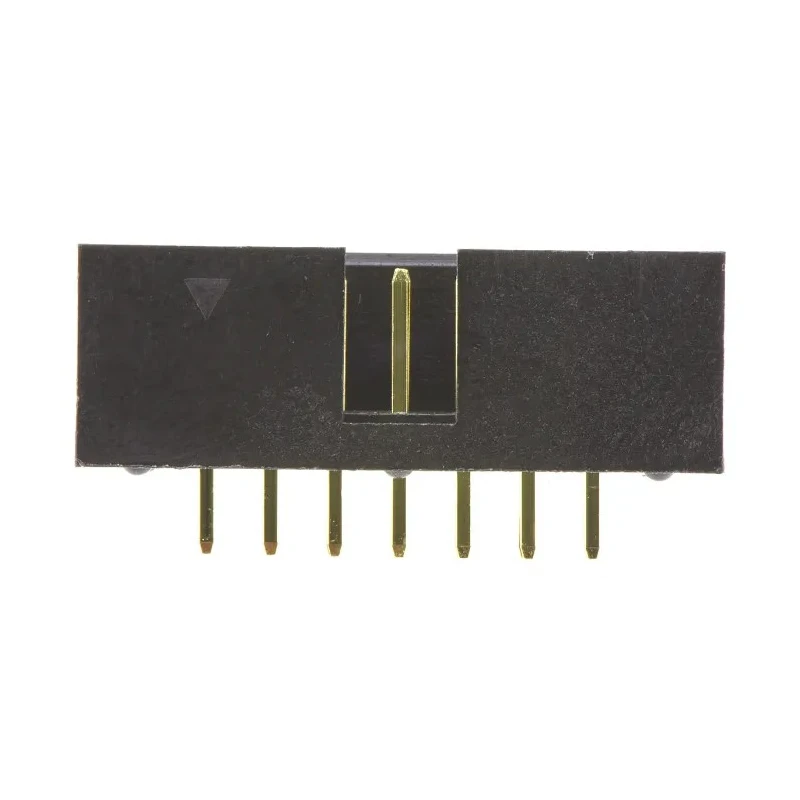

Amphenol Communications Solutions T821 Series 14-Contact 2 Row Straight Through Hole PCB Header 2.54 mm T821114A1S100CEU
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | T821114A1S100CEU |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | T821 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
| Mating Pin Length | 5.7mm |
Key Features
- Features 14 gold-plated brass male contacts ensuring excellent conductivity.
- Constructed with black UL 94V-0 thermoplastic housing for durability and safety.
- Designed for through hole mounting on PCBs for firm mechanical and electrical stability.
- Operates reliably between -40°C and 105°C temperature range.
- Supports current rating of 3A with voltage rating up to 250V AC.
- Contact tail pin length is 3.3 mm, mating pin length 5.7 mm for secure connection.
- Shrouded design prevents accidental contact and enhances overall connector safety.
- Connector system is wire-to-board with a straight orientation ideal for versatile PCB applications.
Product Description
Amphenol Communications Solutions T821114A1S100CEU PCB Header is a high-quality 14-contact, 2-row, straight through hole connector with a 2.54 mm pitch. This connector is manufactured with precision to ensure reliable electrical connections in a variety of electronics applications.
The housing is made from black UL 94V-0 thermoplastic material, which provides excellent fire resistance and durability. The contacts consist of brass material with gold plating to achieve superior conductivity and corrosion resistance, ensuring long-term performance.
Designed primarily for through hole PCB mount, this product supports a current rating of 3 amperes and a voltage rating of 250 volts AC, suitable for a wide range of low-voltage electronic circuits and devices. It operates in a temperature range from -40°C to 105°C which makes it robust in both cold and hot industrial environments.
The T821 series connector features a shrouded shell that offers extra protection by preventing accidental touching of the contacts and helping to avoid contamination. The male contact gender and solder termination type facilitate secure and dependable solder joints on the printed circuit board.
With a tail pin length of 3.3 mm and mating pin length of 5.7 mm, the connector provides secure mechanical retention and efficient mating with counterpart connectors. Its orientation is straight, making it suitable for various electronic assembly designs requiring wire-to-board connections.
14 gold-plated brass male contacts ensure excellent conductivity. Black UL 94V-0 thermoplastic housing provides durability and fire resistance. Through hole mount type secures firm placement on PCBs. Operating temperature range from -40°C to 105°C.
Rated for 3A current and 250V AC voltage applications. Solder termination offers reliable electrical connections. Shrouded design prevents accidental contact and contamination. Straight orientation for versatile PCB assembly uses.
This connector is ideally suited for use in industrial electronics, communications equipment, consumer devices, and other applications requiring secure, reliable PCB header connections. Its robust construction and precise specifications make it a dependable choice for designers and manufacturers.
Explore the complete range of PCB Headers and related components at EnvMart for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A and a voltage rating of up to 250V AC.
It operates reliably within a temperature range of -40°C to 105°C.
This connector is designed for through hole mounting on printed circuit boards (PCBs).
The housing is made from black UL 94V-0 thermoplastic, and the contacts are brass with gold plating for excellent conductivity.
The T821114A1S100CEU features 14 male contacts arranged in 2 rows.
The tail pin length is 3.3 mm, while the mating pin length is 5.7 mm.
This model has a straight orientation, making it suitable for various electronic assembly designs.
It utilizes a solder termination type for secure and reliable electrical connections.
Yes, it features a shrouded design that prevents accidental contact and enhances connector safety.
It is ideally suited for industrial electronics, communications equipment, and consumer devices requiring secure PCB connections.
The country of origin for this PCB header is China.
This model is part of the T821 series of PCB headers.
