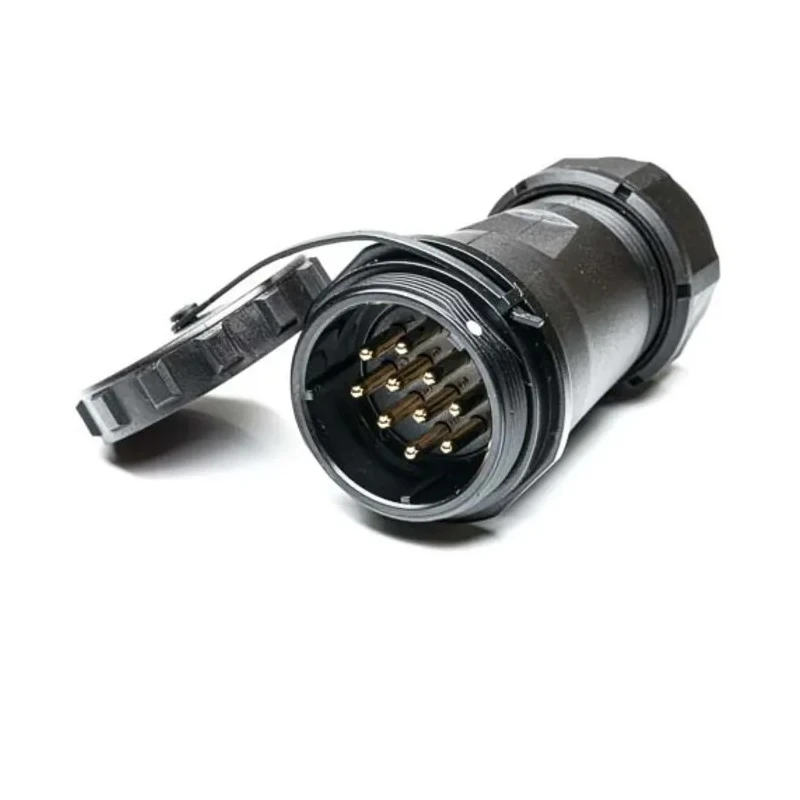

RS PRO Circular Connector, 10 Contacts, Cable Mount, Socket Male, IP68 Rated, 500V 25A, Series SP29 Model 207-0714
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 25A |
| Model | 207-0714 |
| IP Rating | IP68 |
| Mount Type | Cable |
| Housing Material | Nylon, Polycarbonate |
| Contact Material | Brass |
| Series | SP29 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 10 |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shell Size | 38.8 mm |
| Mating Type | Threaded |
| Plug/Socket | Socket |
Key Features
- Constructed from polycarbonate and nylon for heat, corrosion, and abrasion resistance.
- Features threaded coupling for secure mating in harsh environments.
- Rated for 500 V voltage and 25 A current per contact.
- Operates reliably from -40°C to +85°C temperature range.
- Solder termination provides solid and reliable electrical connection.
- Integrated rubber seal and dust cap ensure moisture and dust protection.
- Suitable for power and data applications in industrial and medical fields.
- Compact form factor with a shell size of 38.8 mm and straight orientation.
Product Description
RS PRO 207-0714 Circular Connector is a high-quality industrial electrical component providing a reliable 10-contact male socket with cable mounting. Manufactured using robust polycarbonate and nylon materials, this connector offers excellent resistance against heat, corrosion, and abrasion, making it ideal for harsh industrial environments.
This connector is sealed to an IP68 standard, ensuring it is waterproof and dust-tight. The threaded coupling mechanism secures the connection to prevent accidental disconnection, which is critical in demanding applications.
With a voltage rating of 500 V and a current capacity of 25 A per contact, the connector supports medium-power applications. Operating reliably within temperatures from -40°C to +85°C, it suits a wide range of environments including outdoor, industrial, and commercial settings.
The solder termination type guarantees a strong and stable electrical contact, while the integrated rubber seal within the inner lid and attached dust cap provide added protection against moisture and particle ingress.
Its compact size, featuring a shell diameter of 38.8 mm and straight orientation, allows for installation in confined spaces. The gold-plated brass contacts enhance conductivity and durability, making the connector suitable for transmitting both power and data signals.
These connectors are commonly used in shipyards, heavy industry, entertainment venues, construction sites, food processing, and agriculture due to their resilience and versatility. The RS PRO 207-0714 model is especially well-suited for applications in medical devices, communications, and test & measurement equipment, where reliability and sealing against environmental factors are essential.
Constructed from polycarbonate and nylon for durability. IP68 waterproof rating ensures protection from dust and moisture. Threaded coupling for secure and reliable mating. Solder termination prevents loose electrical contacts.
Gold-plated brass contacts for long-lasting conductivity. Operates in a wide temperature range from -40°C to +85°C. Rated for 500 V and 25 A per contact. Compact 38.8 mm shell size with straight orientation. Includes integral dust cap and rubber seal for enhanced protection.
For professionals requiring dependable industrial connectors, the RS PRO 207-0714 Circular Connector ensures excellent performance in challenging environments. Explore more industrial electrical components and connectors on EnvMart to find solutions tailored to your specific technical requirements.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 500V voltage and 25A current per contact.
It has an IP68 rating, ensuring it is waterproof and dust-tight.
The housing is made from nylon and polycarbonate, while the contacts are made of brass with gold plating.
It operates reliably within a temperature range of -40°C to +85°C.
This connector features 10 contacts in a male configuration.
It utilizes a solder termination type for a solid electrical connection.
The shell size of this model is 38.8 mm.
It features a threaded coupling mechanism that prevents accidental disconnection.
It is suitable for power and data applications in industrial and medical fields, including shipyards and food processing.
It includes an integrated rubber seal and a dust cap to protect against moisture and dust ingress.
This model has a straight orientation, making it suitable for various installation scenarios.
This connector is part of the SP29 series by RS PRO.
