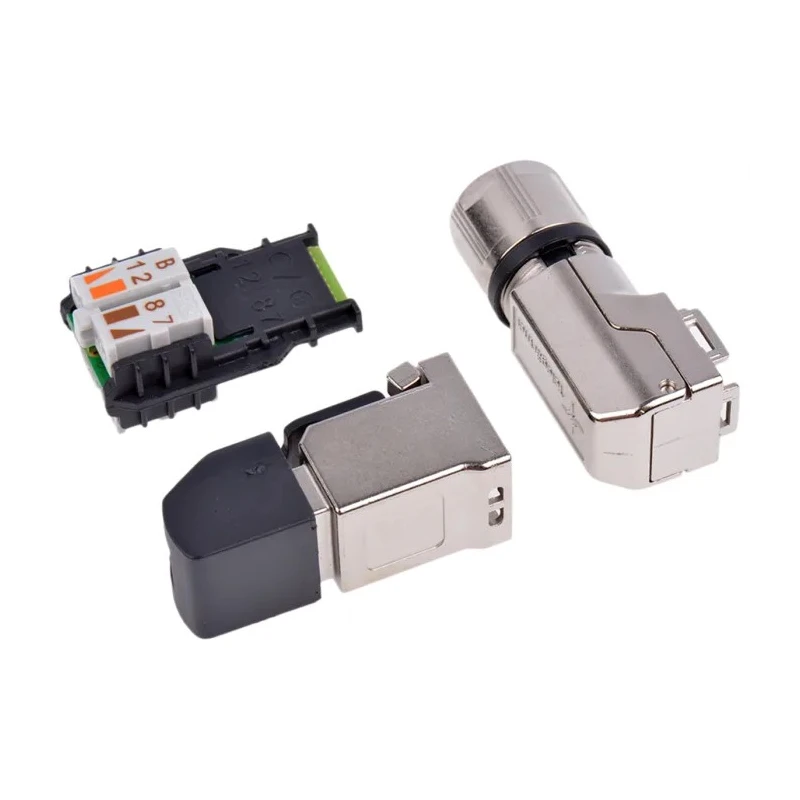

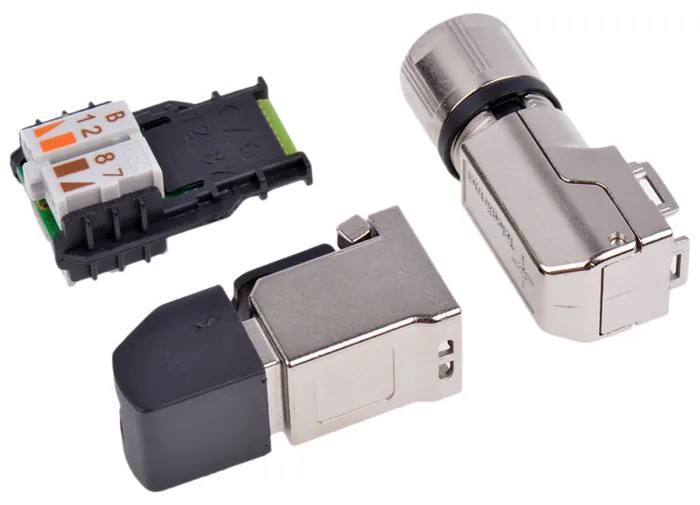

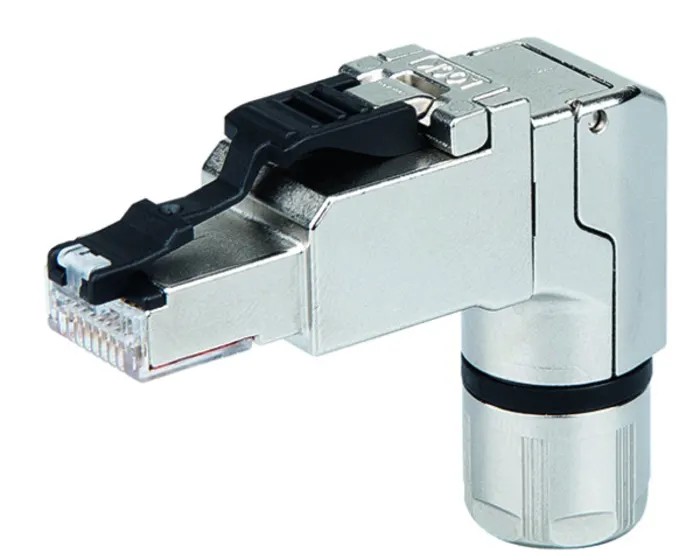

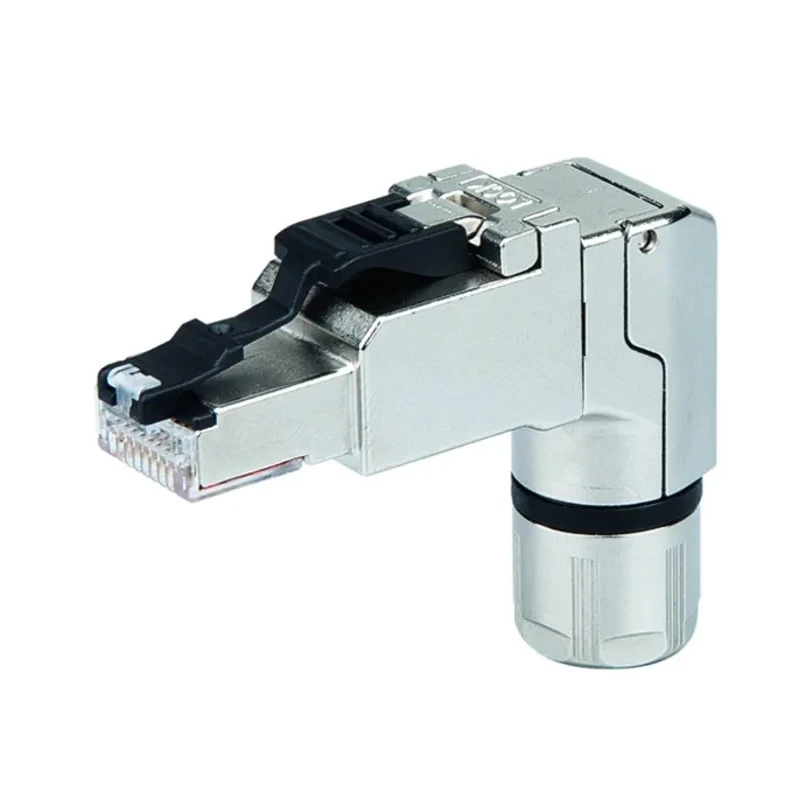

Dexlan J00026A Series Connector Male, Cable Mount, Cat6a Shielded Right Angle 1 Port 4 Way RJ45

Telegartner J00026A4003 RJ45 Connector Male Cat6a Shielded Cable Mount Right Angle is a cable-mounted Ethernet connector designed to provide fast and reliable network connectivity in demanding industrial and commercial environments. This shielded plug supports a single port with 4 way cable entry at 90° increments, allowing flexible cable management and installation in tight spaces.

The connector complies with Cat6a standards, supporting transfer rates up to 10 Gigabit Ethernet (10GBase-T), suitable for modern high-speed LANs including data centers, office buildings, and home cabling systems. Featuring a durable die-cast zinc housing with 360° shielding and gold over nickel plated phosphor bronze contacts, it ensures minimal signal loss and EMI protection for secure data transmission.

Its compatibility with various cable types and solid or stranded conductors ranging from AWG24/1 to 22/1 and AWG27/7 to 22/7 expands its application versatility. Operating at temperatures from -40°C up to 85°C and rated IP20, this connector withstands industrial environmental conditions. The design includes a long release latch for convenient connector release in confined areas and a pre-assembled protection cap to safeguard contacts from dirt and physical damage.

This product is manufactured in Germany, meeting strict quality and reliability criteria, and supports Power over Ethernet Plus (PoE+) for simultaneous power and data transmission over Ethernet cables. The J00026A series from Telegartner is ideal for data centers, industrial systems, office infrastructure, and home networks where high performance and durability are essential.

Compatible with Cat6a LAN standard for 10GBase-T speeds. Shielded connector construction with 360° EMI protection. Right angle cable entry from 4 directions enhances installation flexibility. Durable die-cast zinc housing ensures robustness.

Gold over nickel plating on phosphor bronze contacts provides excellent conductivity and corrosion resistance. Operating temperature range from -40°C to +85°C enables industrial use. Long release latch for easy insertion and removal.

Includes a protective cap to shield contacts from contaminants. Supports PoE+ for combined data and power transmission. Explore a broad range of Ethernet Connectors and network components on EnvMart for your industrial and commercial applications.
