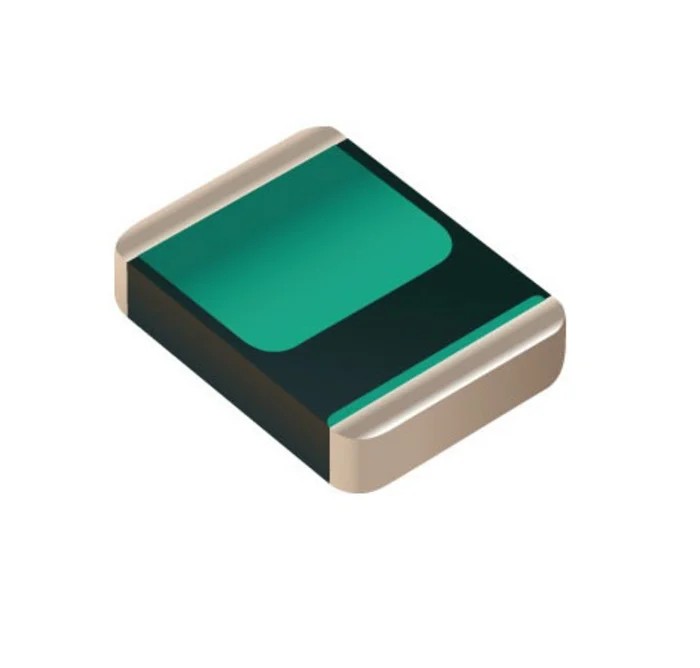

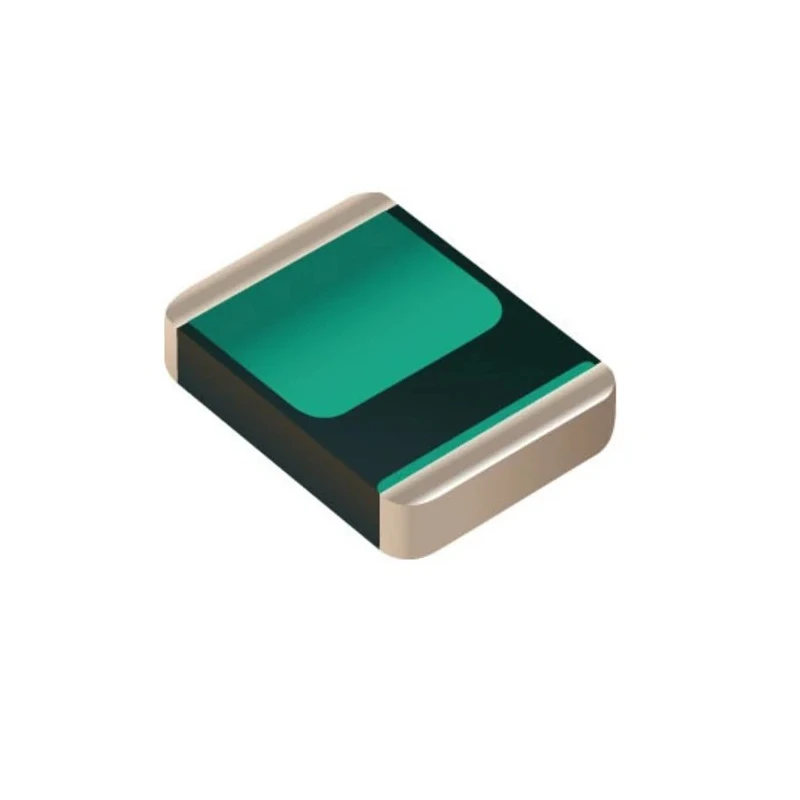

Bourns Medium Voltage Surface Mount DV Series Varistor 390 V, Clamping Voltage 650 V, 5 A Clamping Current, 100 DV250K3225R2
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | Bourns |
| THICKNESS | 2mm |
| Length | 8mm |
| Model | DV250K3225R2 |
| Depth | 2mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | DV |
| Energy Rating | 11J |
| Maximum Operating Temperature | 125°C |
| Capacitance | 100pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 250V dc |
| Standards/Approvals | RoHS |
| Package/Case | 3225 |
| Termination Style | Surface Mount |
| Maximum AC Voltage | 250V ac |
| Clamping Voltage VC | 650V |
| Clamping Current | 5A |
| Maximum Surge Current | 400A |
| Varistor Voltage | 390 V |
Key Features
- This varistor features a clamping current of 5 A for transient surge protection.
- The device has a capacitance of 100 pF suitable for high frequency operation.
- It comes in a 3225 package size with low profile design for compact device integration.
- Operates reliably across a wide temperature range from -40°C to 125°C.
- Energy rating of 11 joules ensures efficient transient energy absorption.
- RoHS compliant and designed to withstand common water cleaning procedures and humid environments.
- Tape & reel packaging facilitates automatic pick-and-place assembly.
- Surface mount termination style enables easy PCB mounting.
Product Description
Bourns DV250K3225R2 is a medium voltage surface mount varistor designed to safeguard electronic equipment against high voltage surges in the medium voltage range. It operates at a varistor voltage of 390 V with a clamping voltage of 650 V, offering a clamping current capacity of 5 A and maximum surge current of 400 A.
This varistor is housed in a compact 3225 package, measuring 8 mm in length, 2 mm in thickness, and 2 mm in depth, designed to fit modern electronic designs with tight space constraints.
It provides excellent transient energy absorption with an energy rating of 11 joules and supports continuous operation up to 125°C. The device is suitable for use in industrial electronics, power supply units, telecommunications equipment, and other circuits requiring surge protection.
With surface mount termination, the varistor allows for easy integration on printed circuit boards using automated assembly processes, facilitated by tape and reel packaging. It is RoHS compliant and built to endure common humidity and water cleaning procedures, rated with climatic category 55/125/56.
This component is manufactured in Slovenia and does not carry automotive standard certification. Its compact design ensures minimal inductance, improving response time to transient voltage events.
This varistor protects against transient voltage surges effectively. Compact 3225 case size suits modern surface mount technology. Energy handling and clamping current rating support various medium voltage applications. Wide operating temperature range assures reliability in harsh environments.
RoHS compliant with tape & reel packaging for automated assembly. Ideal for industrial, telecommunications, power supply, and electronic manufacturing applications requiring robust surge protection. Explore more Electronic Components and varistors with Bourns at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The varistor voltage of this model is 390 V, designed to protect against high voltage surges in the medium voltage range.
This varistor can handle a maximum surge current of 400 A, providing effective transient voltage surge protection.
The clamping voltage for the DV250K3225R2 is 650 V, which helps to limit the voltage during surge events.
This varistor has a length of 8 mm, a thickness of 2 mm, and a depth of 2 mm, fitting well in compact electronic designs.
The energy rating of this varistor is 11 joules, ensuring efficient absorption of transient energy.
This model operates reliably across a wide temperature range from -40°C to 125°C, suitable for various environmental conditions.
It comes in tape and reel packaging, which facilitates automatic pick-and-place assembly during PCB manufacturing.
The capacitance of this varistor is 100 pF, making it suitable for high-frequency operation.
The termination style of this varistor is surface mount, allowing for easy integration on printed circuit boards.
Yes, this varistor is RoHS compliant, meeting environmental standards for hazardous substances.
This varistor is suitable for use in industrial electronics, power supply units, telecommunications equipment, and other circuits requiring surge protection.
This varistor is manufactured in Slovenia, ensuring adherence to quality standards.
