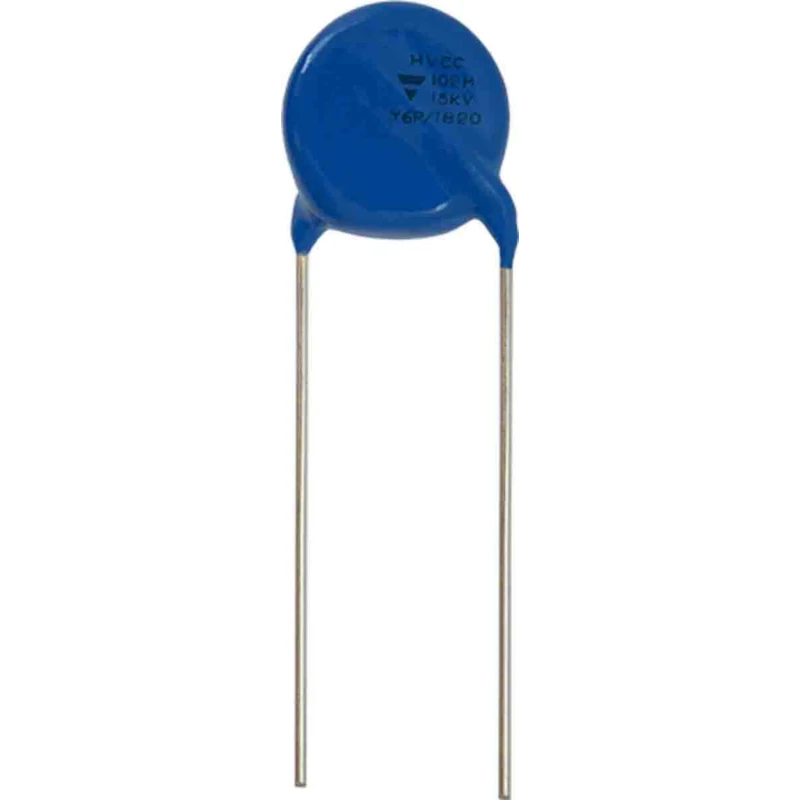

Vishay High Voltage Single Layer Ceramic Capacitor 220 pF 10kV DC ±20% Through Hole Disc HVCC Series HVCC203Y6P221MEAX
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 10kV dc |
| Diameter | 9mm |
| Brand | Vishay |
| Height | 13mm |
| Length | 39mm |
| Model | HVCC203Y6P221MEAX |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Series | HVCC |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 220pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Radial |
| Dissipation Factor | 1.5% |
| Standards/Approvals | RoHS |
| Package/Case | Disc |
| Suppression Class | Class II |
Key Features
- Constructed with a radial-leaded single layer ceramic disc design.
- Capacitance of 220 pF with a tolerance of ±20% for precise applications.
- Rated for 10 kV DC voltage with low dissipation factor of 1.5%.
- Silver-plated ceramic disc for enhanced conductivity and durability.
- Radial terminal type with tinned copper-clad steel connection leads.
- Operating temperature range from -30 °C to 105 °C ensuring stability.
- Compliant with RoHS standards and classified as Class II suppression capacitance.
Product Description
Vishay HVCC203Y6P221MEAX is a high voltage single layer ceramic capacitor designed for robust electronic applications requiring stable capacitance and voltage endurance. This capacitor features a radial-leaded single layer ceramic disc construction, with both sides silver-plated to optimize electrical conductivity and environmental resistance.
The device is a through hole mount type, making it suitable for various PCB designs and industrial circuits. It offers a capacitance of 220 pF with a tolerance of ±20%, capable of handling up to 10 kV DC voltage. The dissipation factor is maintained low at 1.5%, minimizing energy losses during operation.
The capacitor dimensions are 39 mm in length, 13 mm in height, and 9 mm in diameter, with radial terminals providing reliable mechanical connection via tinned copper clad steel wire leads. This form factor supports easy integration into electronic assemblies.
It operates effectively within a temperature range from -30 °C to 105 °C, ensuring use in demanding environments and industrial settings including power supplies, high voltage circuits, and specialized filtering. Classified as Class II suppression capacitance, the capacitor complies with RoHS standards, reflecting its environmental compatibility.
Radial-leaded single layer ceramic disc design with silver plating. Capacitance 220 pF ±20% tolerance for precision applications. Voltage rating 10 kV DC suitable for high voltage circuits. Low dissipation factor (1.5%) reducing power loss.
Compact 39x13x9 mm size with radial terminals. Operating temperature range -30 °C to 105 °C. Class II suppression capacitance complying with RoHS.
This Vishay capacitor is ideal for industrial electronics, power and connectors, passive component integration, and specialized circuit design requiring reliable high voltage endurance. Explore more components in the Single Layer Ceramic Capacitors category on EnvMart for comprehensive selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a capacitance of 220 pF with a tolerance of ±20%.
This model is rated for a maximum voltage of 10 kV DC.
The dissipation factor is low at 1.5%, which helps minimize energy losses during operation.
The dimensions of this capacitor are 39 mm in length, 13 mm in height, and 9 mm in diameter.
It features a through hole mount type, which is suitable for various PCB designs and industrial circuits.
It operates effectively within a temperature range from -30 °C to 105 °C.
This capacitor has radial terminals made of tinned copper-clad steel for reliable mechanical connections.
Yes, it complies with RoHS standards, reflecting its environmental compatibility.
It features a radial-leaded single layer ceramic disc design, with both sides silver-plated to enhance conductivity.
This capacitor is suitable for industrial electronics, power supplies, high voltage circuits, and specialized filtering applications.
It is classified as Class II suppression capacitance, making it suitable for various electronic applications.
The capacitor is packaged in bulk, making it suitable for large-scale applications.
