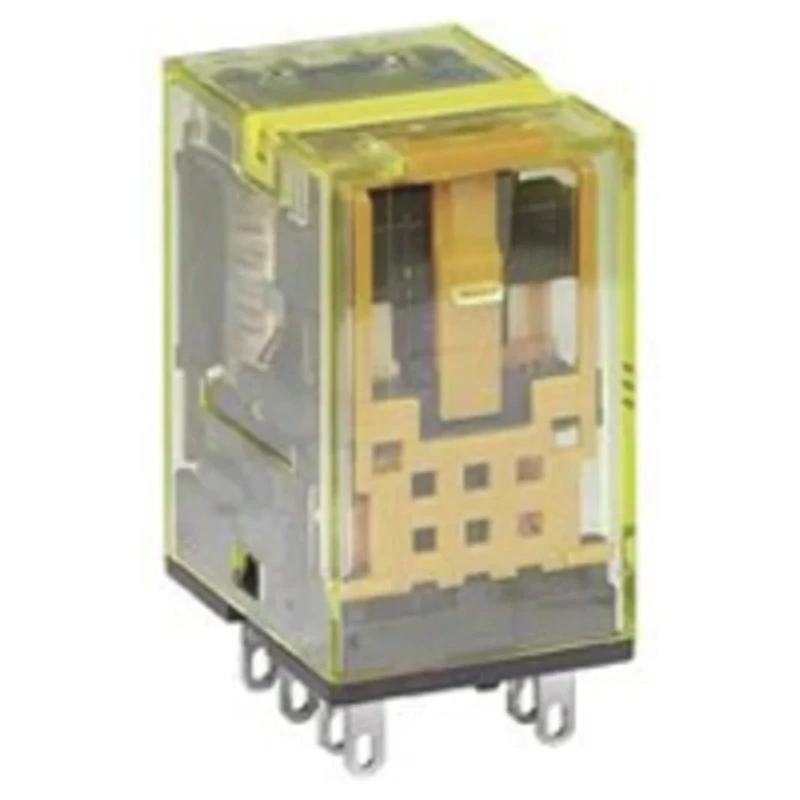

Idec Power Relay PCB Mount 24V Coil 6A Switching Current 4PDT RJ2S RU4S-D24
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Idec |
| Operating Temperature | -55 ºC to 70 ºC |
| Height | 41.4mm |
| Length | 27.5mm |
| Model | RU4S-D24 |
| Width | 21mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RJ2S |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Blade |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UR, CSA, UL |
| Coil Resistance | 605Ω |
| Coil Voltage | 24V |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 30V ac |
| Coil Power | 1W |
Key Features
- The relay features a robust RJ2S series design with blade terminals for easy connection.
- Gold-plated contacts ensure reliable conductivity and low contact resistance of 50mΩ.
- Operating temperature range is from -55 ºC to 70 ºC, allowing versatile industrial applications.
- Equipped with a non-polarised green LED and mechanical flag for visual operation verification.
- The coil resistance is 605 ohms, supporting stable coil power consumption of 1 watt.
- Complies with UR, CSA, and UL standards, assuring safety and performance.
Product Description
Idec RU4S-D24 Power Relay is a PCB mount relay featuring a 24V coil and a switching current capacity of 6 amperes with a 4PDT contact configuration from the RJ2S series.
This relay supports an operating temperature range from -55 ºC to 70 ºC, making it suitable for diverse industrial and automation applications requiring reliable switching performance.
The relay terminals use blade type contacts with gold plating, reducing contact resistance to 50 milliohms and enhancing electrical reliability over frequent operational cycles.
This model's coil resistance is precisely 605 ohms with coil power consumption rated at 1 watt, ensuring energy-efficient coil activation while maintaining robust switching capability.
Equipped with a mechanical flag indicator visible through five windows and a non-polarized green LED, this relay provides clear visual feedback for operational status and coil energization, assisting maintenance and diagnostics.
Its compact size makes it ideal for PCB mounting with height 41.4mm, length 27.5mm, and width 21mm, facilitating integration within control panels and electronic assemblies. Robust 4PDT contact configuration supports complex switching circuits with 6A current rating.
Gold plated contacts for enhanced conductivity and durability. Mechanical flag indicator and LED provide operation and coil status feedback. Wide temperature range supports industrial, automation, and HVAC applications. Compliant with UR, CSA, and UL for reliable and safe operation.
This Idec relay can be used across industrial manufacturing, HVAC control systems, laboratory equipment, and automation system projects requiring compact, reliable switching components.
Explore more industrial relay solutions and components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a switching current capacity of 6 amperes.
The coil voltage for this model is 24V.
It features a 4PDT contact configuration.
The relay has a height of 41.4mm, length of 27.5mm, and width of 21mm.
The operating temperature range is from -55 ºC to 70 ºC.
It uses blade type terminals for easy connection.
The contact resistance is 50 milliohms (50mΩ).
This relay complies with UR, CSA, and UL standards.
The coil resistance is 605 ohms.
The coil power consumption is rated at 1 watt.
It is suitable for industrial manufacturing, HVAC control systems, and automation system projects.
It is equipped with a non-polarized green LED and a mechanical flag for visual operation verification.
