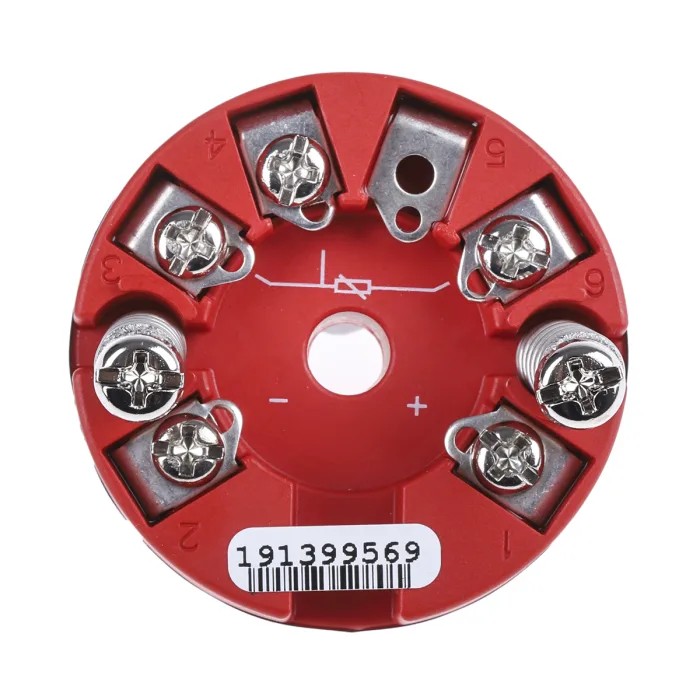

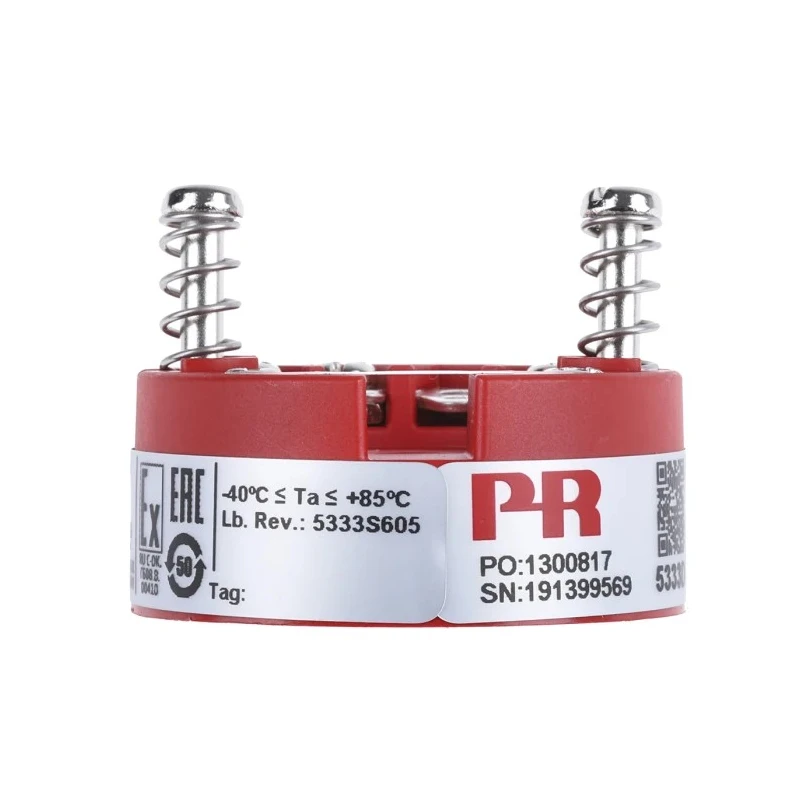

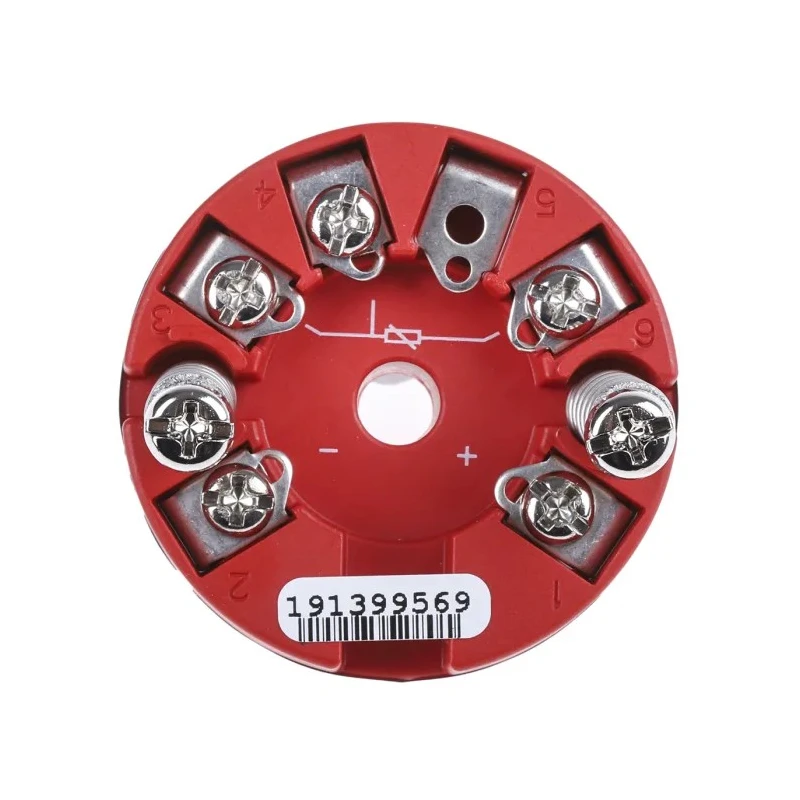

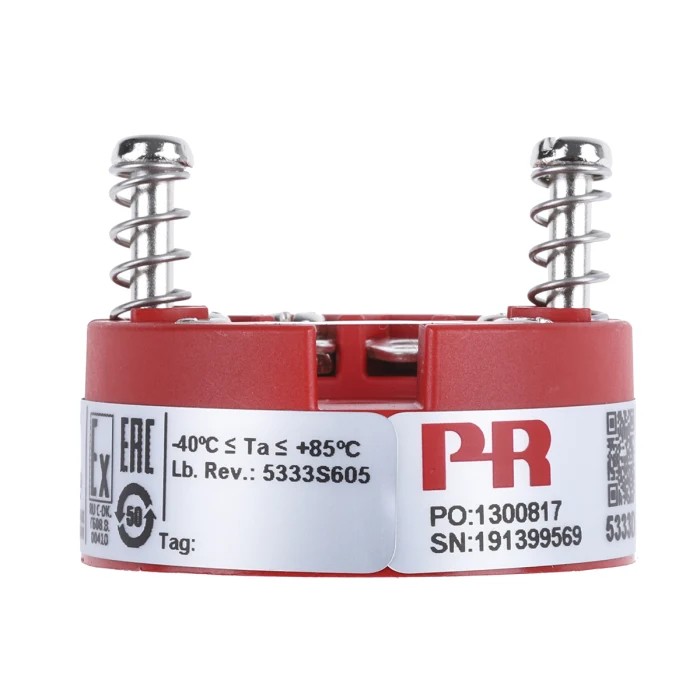

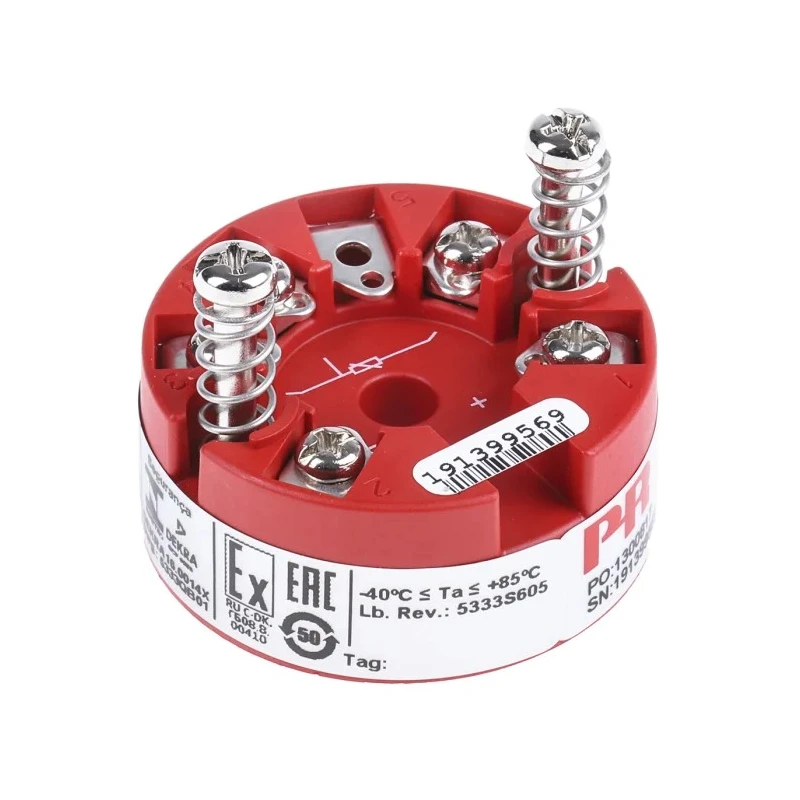

PR Electronics Temperature Transmitter RTD Input 30V DC, -40°C to 85°C 4 to 20 mA Output 44mm Diameter 5333D

PR Electronics 5333D Temperature Transmitter is a high-performance RTD input device designed for industrial and process control applications requiring accurate temperature measurement and conversion to a 4 to 20 mA output signal. It operates reliably within a voltage supply limit of 30V DC and temperature range from -40°C to 85°C ambient, supporting sensor inputs from -200°C to 850°C.

This transmitter supports 2 and 3 wire RTD sensors with resistance up to 10 kΩ and includes sensor redundancy functionality, which maintains process availability and safety if the primary sensor fails. The compact form factor of 44mm diameter and 20.2mm depth allows DIN form B sensor head mounting, ideal for tight installation spaces.

Featuring superior accuracy and fast response times, the 5333D model is suitable for safety-critical and cost-sensitive industrial processes. It is designed with high immunity to conducted noise, tested against 10 Vrms in the 15 Hz to 100 MHz range, ensuring reliable operation in electrically noisy environments.

Configuration and calibration of input, output modes, sensor error detection, and process variables are achievable using the free downloadable PReset software, facilitating rapid setup via a standard PC connection.

Additional benefits include continuous integrity checks of stored vital data, runtime meters for process and ambient temperature history, and very low temperature coefficient assuring measurement accuracy across varying ambient conditions. The transmitter is certified for hazardous area use with ATEX approval and complies with multiple EMC standards (2014/30/EU, EAC:TR-CU 020/2011) and DNV-GL Marine certification, making it suitable for demanding industrial environments.

Manufactured in Denmark, the 5333D temperature transmitter is ideal for applications in industrial automation, process control, HVAC, and related sectors demanding precise and reliable temperature measurement and signal transmission.

Supports 2 and 3 wire RTD sensor input up to 10 kΩ resistance. Sensor redundancy enhances process safety and availability. Compact DIN form B sensor head mounting with 44mm diameter and 20.2mm depth. High noise immunity tested against 10 Vrms in 15 Hz - 100 MHz frequency range.

Fast response time and superior accuracy for critical applications. Configuration via free PReset PC software for ease of setup. Continuous data integrity checks ensure reliable operation. ATEX hazardous area certification and multiple EMC approvals.

Runtime meters record process and ambient temperature history. Manufactured in Denmark for quality assurance. Explore more Temperature Transmitters and process control instruments on EnvMart to meet your precision automation requirements.
