STMicroelectronics STM32F205VGT6 32-Bit ARM Cortex M3 Microcontroller 120MHz 1024kB FLASH 100-Pin LQFP

STMicroelectronics STM32F205VGT6 is a high-performance 32-bit ARM Cortex M3 microcontroller designed for advanced embedded applications. Featuring a 120 MHz CPU and 1024kB of FLASH program memory, this microcontroller delivers robust computation capabilities for complex tasks.

The device integrates 128kB RAM and offers a comprehensive set of peripherals including 16 channels of 12-bit ADCs and 2 channels of 12-bit DACs, enabling precise analog signal processing. Its 14 timers - including 16-bit and 32-bit PWM timers - facilitate sophisticated motor control and timing applications.

With multiple communication interfaces such as USB OTG high-speed, CAN, I2C, SPI, and USART, the STM32F205VGT6 ensures versatile connectivity for various industrial and consumer electronics systems. The microcontroller supports supply voltages ranging from 1.8V to 3.6V and is qualified for operation within -40°C to +105°C, making it suitable for harsh environmental conditions.

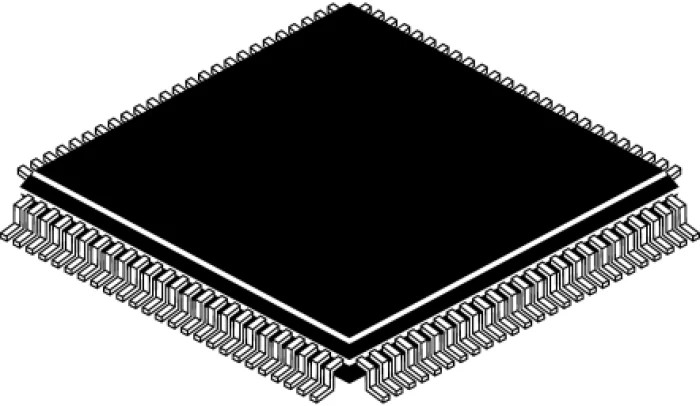

Its 100-pin Low-profile Quad Flat Package (LQFP) footprint of 14.2 mm square and height of 1.45 mm allows for compact and space-saving PCB designs. These features make the STM32F205VGT6 ideal for applications such as motor drives, medical equipment, industrial control, alarm systems, video intercoms, HVAC systems, and home audio appliances.

The device also includes a real-time clock (RTC), advanced connectivity options, and a true random number generator (RNG), enhancing its utility across secure and time-sensitive embedded systems.

Features a 32-bit ARM Cortex M3 core enabling efficient embedded applications. Supports up to 1024kB FLASH program memory for extensive code storage. Operates at a maximum clock frequency of 120 MHz ensuring fast processing.

Includes 128kB RAM size for ample data storage during operation. Supplies a voltage range from 1.8V minimum to 3.6V maximum for flexible power inputs. Equipped with 16 x 12-bit ADC channels and 2 x 12-bit DACs for precise analog interfacing.

Offers 14 timers including 16-bit and 32-bit PWM timers suited for motor control. Supports multiple interfaces including USB OTG high-speed, CAN, I2C, SPI, and USARTs. Designed to operate across a temperature range from -40°C to +105°C for rugged environments.

Compact 14.2mm x 14.2mm x 1.45mm LQFP package optimized for surface mounting.

This microcontroller series from STMicroelectronics provides excellent real-time performance, power efficiency, and peripheral integration, making it well-suited for industrial, laboratory, manufacturing, and commercial embedded systems.
