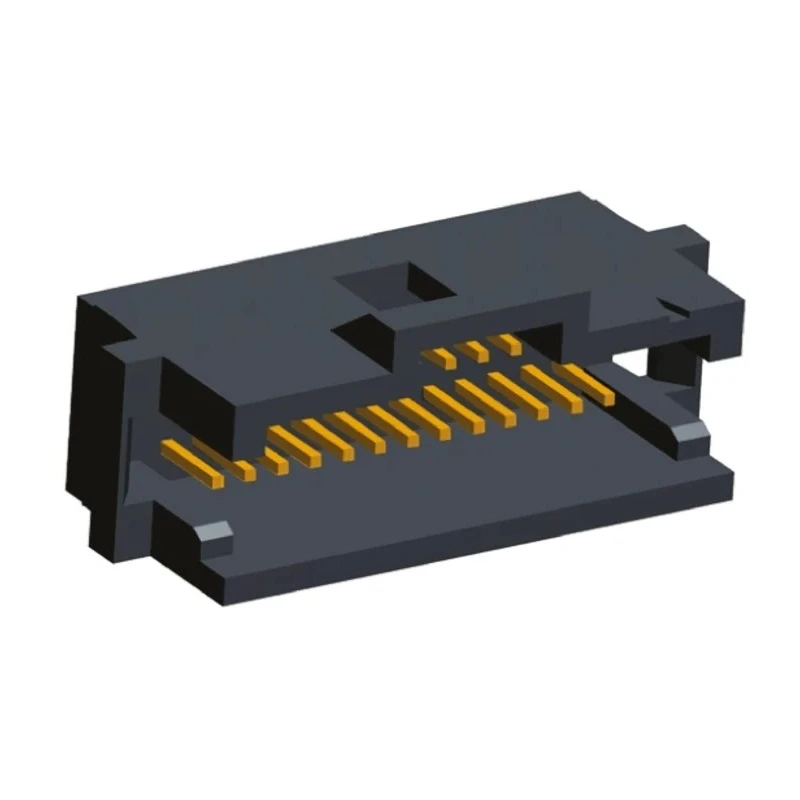

TE Connectivity AMPMODU System 50 Series Straight Through Hole PCB Header 80 Contacts 1.27 mm Pitch 2 Row Shrouded 6-104068-6

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPMODU System 50 Series Straight Through Hole PCB Header 80 Contacts 1.27 mm Pitch 2 Row Shrouded 6-104068-6

Name: TE Connectivity AMPMODU System 50 Series Straight Through Hole PCB Header 80 Contacts 1.27 mm Pitch 2 Row Shrouded 6-104068-6
Brand: TE Connectivity
SKU: 106384
Price: 27.21 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	Mexico
Voltage	30V
Brand	TE Connectivity
Orientation	Straight
Current	1A
Mount Type	Through Hole
Contact Material	Phosphor Bronze
Series	AMPMODU System 50
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	80
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board

Key Features

Compact high-density connector with 80 male contacts for efficient PCB space utilization.
Features 1.27 mm pitch and a 2-row straight orientation suitable for through hole mounting.
Constructed with phosphor bronze contacts plated with gold for high conductivity and corrosion resistance.
Operates reliably between -65°C and 105°C temperature range.
Supports a voltage rating up to 30 V and current rating of 1 A per contact.
Shrouded design ensures polarized connection with proper alignment and prevents mismating.
Compatible with AMPMODU System 50 interconnection components including PCB headers, receptacles, and IDC ribbon cable connectors.
Ideal for industrial, electronic manufacturing, and telecommunications applications requiring robust PCB interconnect solutions.

Product Description

TE Connectivity 6-104068-6 AMPMODU System 50 Series Straight Through Hole PCB Header features an 80 contact shrouded male connector with a 1.27 mm pitch and 2 rows. Designed for high-density interconnection, this PCB header is made for board-to-board and wire-to-board applications.

The contacts are manufactured from phosphor bronze and selectively gold plated to deliver excellent electrical conductivity and durability. The connector housing is constructed from high-temperature thermoplastic ensuring long-term mechanical stability and reliability in harsh environments.

This connector supports a maximum operating voltage of 30 V and can safely carry currents up to 1 A per contact. Its operating temperature range from -65°C to 105°C enables use in demanding industrial and electronic environments.

The shrouded design features polarized housing that aids correct alignment during mating and protects contacts from damage or contamination. The PCB header utilizes a through hole mount technique providing secure solder termination on circuit boards.

The TE Connectivity AMPMODU System 50 connector family includes board-to-board headers, receptacles, and wire-to-board IDC ribbon cable connectors. This compact, space-saving design supports close stacking of daughter cards and high-density configurations without compromising performance.

Compact 80 contact PCB header for space-saving interconnection. Gold-plated phosphor bronze contacts for high reliability. Shrouded for polarized and secure mating. Temperature range from -65°C to 105°C for rugged applications.

Rated for 30 V and 1 A operation per contact. Through hole mount for robust mechanical and electrical connection. Compatible with AMPMODU System 50 connector range. Suitable for industrial, telecommunications, and manufacturing environments.

This product is made in Mexico and supplied new, meeting quality standards expected for professional electronics manufacturing. Explore EnvMart's extensive selection of PCB Headers and electronic connectors for reliable system design and enhanced production efficiency.
