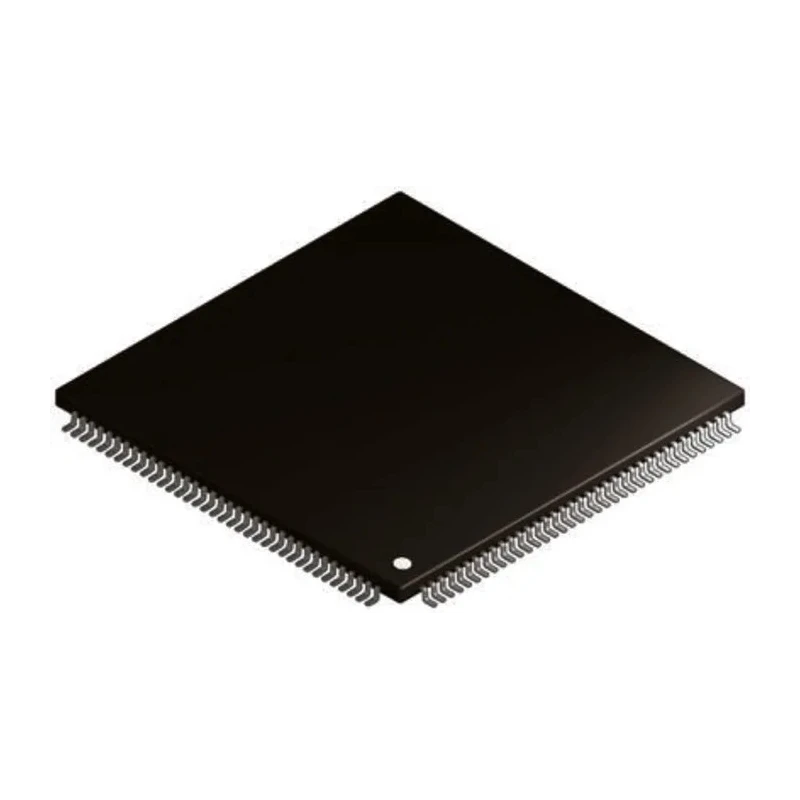

STMicroelectronics STM32F429ZGT6 32 Bit ARM Cortex M4 Microcontroller, 180 MHz, 1024kB Flash, 256kB SRAM, 144-Pin LQFP

STMicroelectronics STM32F429ZGT6 is a high-performance 32-bit ARM Cortex M4 microcontroller operating at 180 MHz, equipped with 1024kB FLASH program memory and 256kB SRAM. It is designed for advanced embedded applications requiring efficient processing and rich peripheral integration.

This microcontroller combines DSP and Floating Point Unit capabilities, enabling complex digital signal processing tasks. The device operates within a broad supply voltage range of 1.7 V to 3.6 V and can withstand industrial temperature conditions from -40°C to 85°C, ensuring robust use in demanding environments.

The STM32F429ZGT6 includes 14 timers, multiple 12-bit DACs and ADCs, as well as comprehensive communication interfaces including USART, SPI, I2C, CAN, and SDIO. It offers extended memory support with dual bank Flash and SRAM along with flexible memory controllers supporting Compact Flash, SRAM, PSRAM, NOR, NAND, and SDRAM.

Additional features comprise an LCD-TFT controller with Chrom-ART acceleration for graphics, audio connectivity options with dedicated PLL and serial audio interface (SAI), a true random number generator, and a real-time clock for applications needing accurate timing and security.

This device is excellently suited for a wide range of industrial and commercial applications, such as motor control, industrial automation, HVAC systems, video intercoms, home audio devices, and medical equipment. The 144-pin LQFP package provides a compact form factor facilitating surface mounting on PCBs.

Features an ARM Cortex M4 core with DSP and Floating Point Unit for advanced computing tasks. Equipped with 1024kB of FLASH program memory and 256kB SRAM for efficient data handling. Supports a wide supply voltage range from 1.7 V to 3.6 V for versatile power management.

Includes 14 timers, 2 x 12-bit DACs, and 24 x 12-bit ADCs providing extensive analog interfacing. Offers rich communication interfaces including USARTs, UARTs, SPI, I2C, CAN, and SDIO. Comes in a 144-pin LQFP surface mount package measuring 20.2 mm x 20.2 mm x 1.45 mm.

Operates reliably in temperatures ranging from -40°C to 85°C for industrial-grade applications. Supports advanced peripherals such as LCD-TFT controller, Chrom-ART accelerator, and audio interfaces. Includes a true random number generator and real-time clock for security and timing functions.
