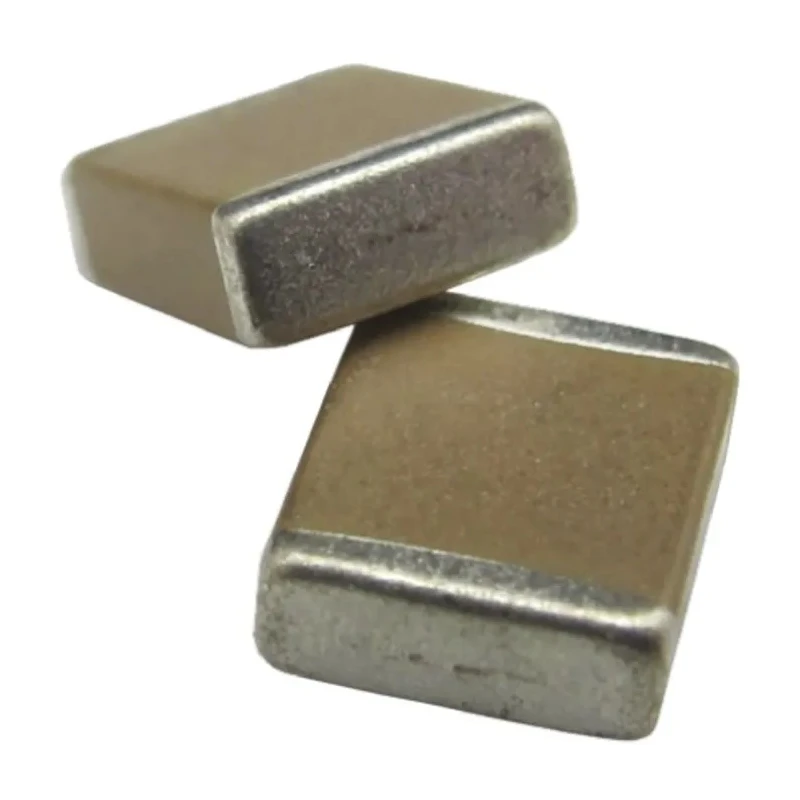

Murata 1206 Shielded Multilayer Surface Mount Inductor with Ferrite Core 470 nH ±20% 1.3A LQM31P
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 3.2mm |
| Model | LQM31P |
| Depth | 1.6mm |
| Packaging | Embossed Tape |
| Series | LQM31P_C0 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 470nH |
| Standards/Approvals | RoHS |
| Package/Case | 1206 |
| Maximum DC Current | 1.3A |
| Pin Count | 2 |
| Maximum DC Resistance | 107mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 90MHz |
| Inductor Construction | Multilayer |
Key Features
- This inductor utilizes a ferrite core construction for enhanced magnetic shielding.
- Compact 1206 package size enables tight pitch SMT board mounting.
- Low DC resistance of 107 mΩ contributes to efficiency and reduced power loss.
- Operating temperature range spans from -55°C to 125°C, suitable for demanding applications.
- Offers maximum self-resonant frequency of 90 MHz, supporting high-frequency circuits.
- Complies with RoHS standards indicating lead-free and environmentally safe manufacturing.
- Embossed tape packaging facilitates automated pick and place assembly processes.
Product Description
Murata LQM31P model 1206 shielded multilayer surface mount inductor provides a reliable inductance of 470 nH with a tolerance of ±20%, designed for use in electronic power and signal conditioning circuits.
Constructed with a ferrite core and a multilayer chip choke design, this SMT inductor offers superior magnetic shielding and low DC resistance of 107 mΩ, supporting continuous maximum DC current of 1.3 A.
The compact dimensions of 3.2 mm length, 1.6 mm depth, and 0.5 mm height ensure it fits densely packed PCBs and tight pitch mounting. Operating within a temperature range of -55°C to 125°C, the component meets industrial temperature requirements and maintains performance stability.
This product is RoHS compliant, molded for durability, and terminated by soldering to ensure secure mechanical and electrical connections.
The maximum self-resonant frequency of 90 MHz enables efficient performance in high-frequency applications such as power supplies, telecommunications, and signal filtering in industrial and commercial electronics.
This inductor features a ferrite core contributing to stable inductance and low electromagnetic interference. Its multilayer construction supports compact size and high current handling. Shielding minimizes magnetic flux leakage, allowing use in sensitive circuits.
Compliant with environmental regulations for lead-free manufacturing. Available in embossed tape packaging ideal for automated SMT processes. Originating from Japan, this Murata LQM31P inductor is a quality product for manufacturing, industrial electronics, telecommunications, and consumer electronics applications.
Discover a wide range of surface mount Inductors and electronic components tailored for various industrial and commercial uses on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an inductance of 470 nH with a tolerance of ±20%.
It supports a maximum DC current of 1.3 A.
The dimensions are 3.2 mm in length, 1.6 mm in depth, and 0.5 mm in height.
It operates within a temperature range of -55°C to 125°C.
The maximum self-resonant frequency is 90 MHz, suitable for high-frequency applications.
The inductor utilizes a ferrite core construction for enhanced magnetic shielding.
It is packaged in embossed tape, which facilitates automated pick and place assembly processes.
The maximum DC resistance is 107 mΩ, contributing to efficiency and reduced power loss.
Yes, it complies with RoHS standards, indicating lead-free and environmentally safe manufacturing.
It features a solder termination style for secure mechanical and electrical connections.
It is designed for use in electronic power and signal conditioning circuits, including telecommunications and signal filtering.
This model belongs to the LQM31P_C0 series.
