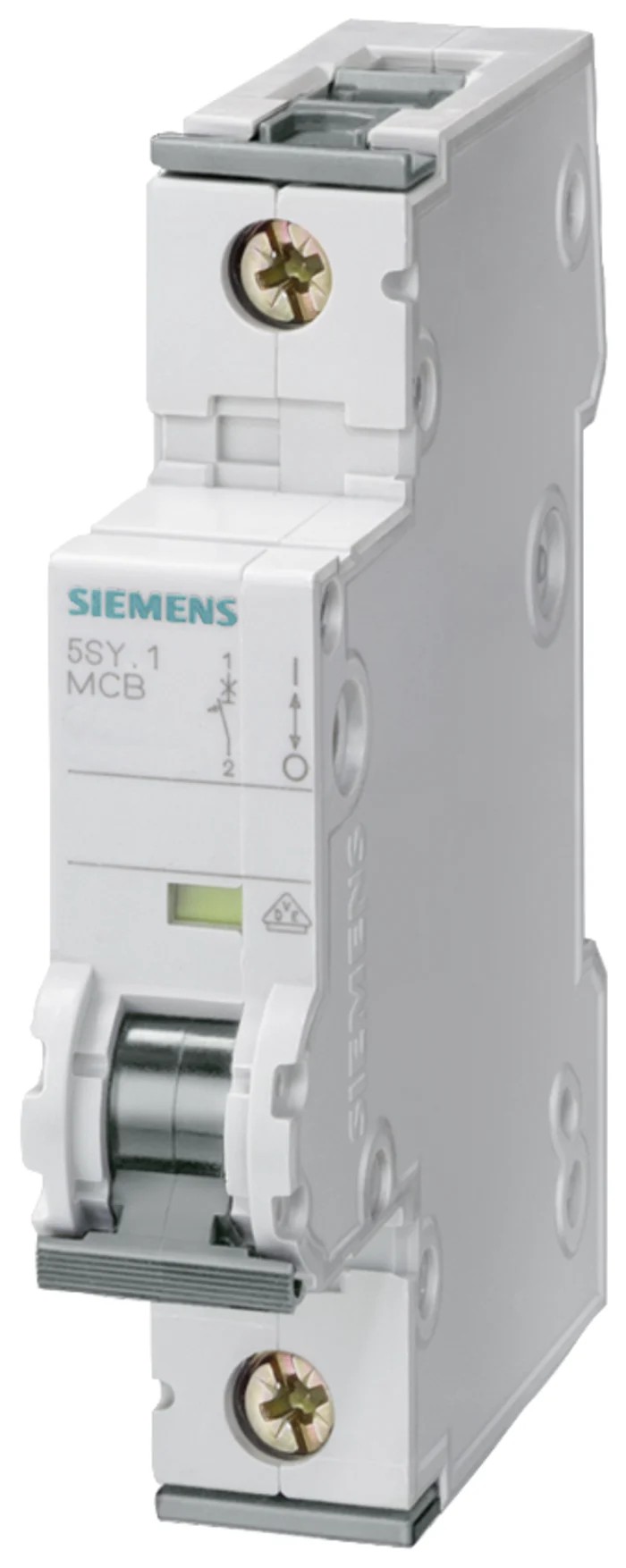

Siemens SENTRON Miniature Circuit Breaker 1-Pole 2A Type D 400V AC 60V DC 10kA Breaking Capacity 5SY4102-8
Specifications
| Country of Origin | Germany |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SY4102-8 |
| Depth | 76mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 2A |
| Series | 5SY4 |
| Terminal type | Combined Terminal |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2/UL1077 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 60V dc |
| Tripping Characteristics | Type D |
| Better World Claim | Extended Product Life |
| Curve C | Tripping: 5 to 10 times the rated current |
| Curve D | Tripping: 10 to 14 times the rated current |
Key Features
- Rated for 2A current with Type D tripping characteristic for high inrush currents.
- Supports rated AC voltage up to 400V and DC voltage up to 60V.
- Breaking capacity of 10kA ensures safe disconnection in fault conditions.
- Compact design with 17.5mm width for DIN rail mounting.
- IP20 rated enclosure suitable for indoor electrical panels.
- Complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards.
- Automatic cut-out feature provides fast and reliable overload protection.
- Supports additional supplementary components like shunt releases and fault signal contacts.
Product Description
Siemens 5SY4102-8 SENTRON Miniature Circuit Breaker is a high-quality 1-pole device rated for 2 amperes with a Type D tripping characteristic. This circuit breaker is designed to provide exceptional protection for electrical circuits against overload and short circuits, particularly suited for high inrush current applications such as motors, transformers, and welders.
The device supports a rated AC voltage of up to 400 volts and a rated DC voltage of 60 volts, with a robust 10 kA breaking capacity, ensuring reliable disconnection of faulty circuits under high fault currents. Its compact form factor with a width of 17.5 mm allows convenient DIN rail mounting in electrical panels, facilitating quick and secure installations.
Incorporating a combined terminal type and IP20 rated enclosure, the miniature circuit breaker ensures safety and ease of connectivity in protected indoor environments. The Siemens 5SY4 series meets international standards IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 guaranteeing compliance with global safety and performance requirements.
This robust circuit breaker provides extended product life as part of Siemens' Better World initiative, promoting sustainability through durable electrical components. It is widely used in industrial, commercial, and residential applications where fast tripping for high surge currents is essential.
Potential supplementary components include control current switches, shunt releases, fault signal contacts, and remote operating mechanisms, allowing customization and enhanced protection tailored to specific installation needs.
Rated current: 2A with Type D tripping characteristic for high surge protection. Supports 400V AC and 60V DC rated voltages. Breaking capacity of 10 kA for safe circuit interruption. Compact 17.5 mm width for DIN rail mounting.
Operating compliance with IEC/EN 60898-1, IEC/EN 60947-2, UL1077. Automatic cut-out ensuring reliable overload protection. IP20 enclosure suitable for indoor electrical installations. Manufactured in Germany with extended product life.
Compatible with supplementary control and signaling accessories.
Choose Siemens SENTRON 5SY4 Miniature Circuit Breakers for robust electrical circuit protection across industrial, residential, and commercial installations. Explore more Siemens electrical products and accessories on EnvMart for quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 10 kA, ensuring reliable disconnection of faulty circuits under high fault currents.
It supports a rated AC voltage of up to 400V and a rated DC voltage of 60V.
The current rating of this circuit breaker is 2A.
This unit features a Type D tripping characteristic, suitable for high inrush current applications.
It has a width of 17.5 mm, a height of 90 mm, and a depth of 76 mm, making it compact for installations.
No, it has an IP20 rating, which makes it suitable for indoor electrical panels only.
This model is designed for DIN rail mounting, facilitating quick and secure installations.
It complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards.
It features a combined terminal type for ease of connectivity.
Potential supplementary components include control current switches, shunt releases, fault signal contacts, and remote operating mechanisms.
This model is manufactured in Germany, ensuring adherence to high standards.
It is widely used in industrial, commercial, and residential applications where fast tripping for high surge currents is essential.
