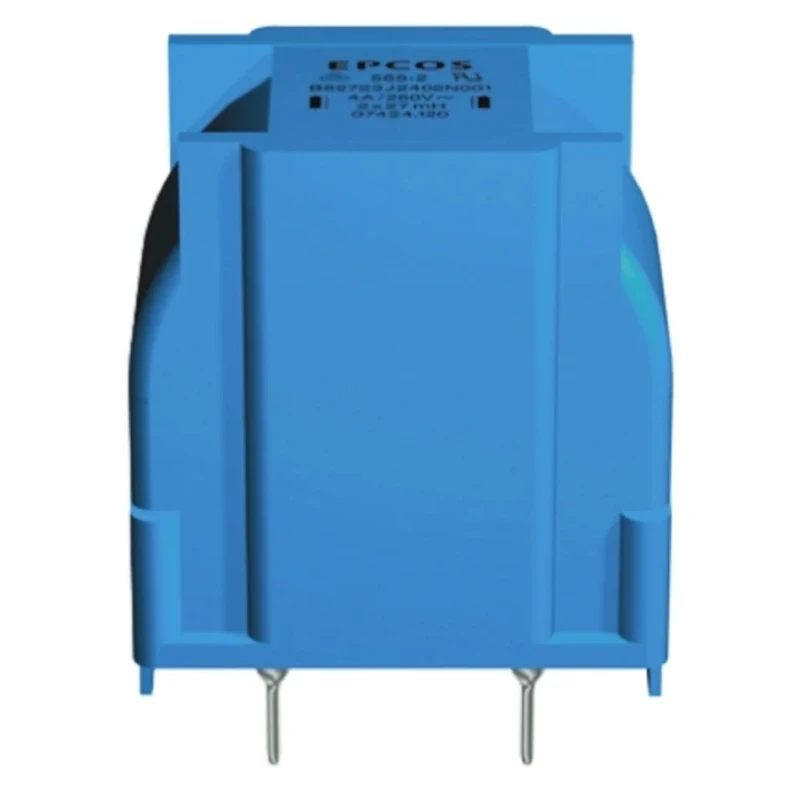

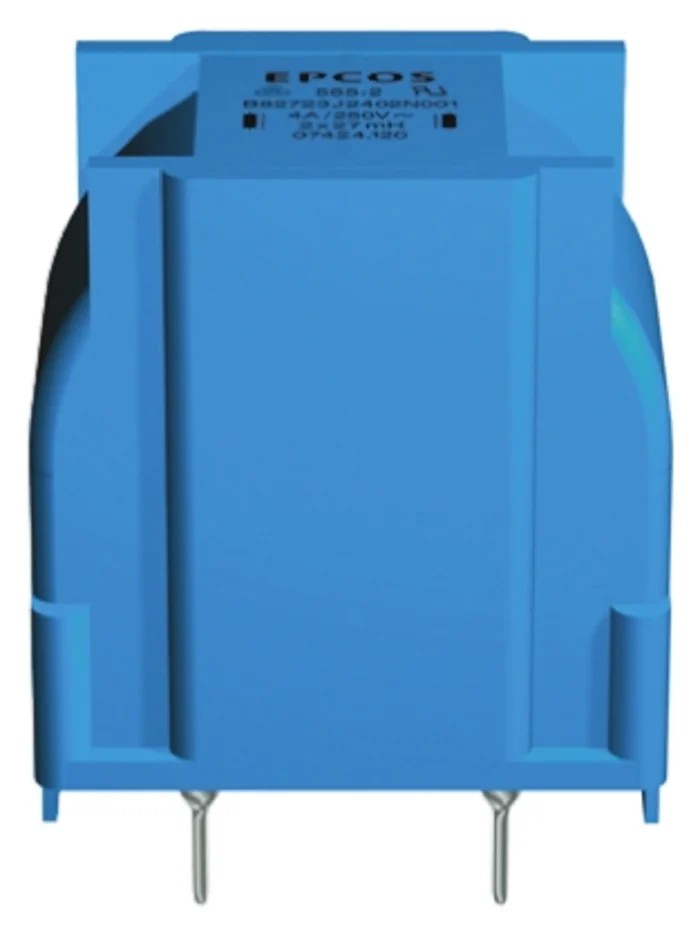

TDK 27 mH Ferrite Power Line Choke Radial Lead 1 A 750 mΩ Max DC Resistance 250V AC B82723J2102N001

Free Delivery in India | Lowest Global Shipping Charges

TDK 27 mH Ferrite Power Line Choke Radial Lead 1 A 750 mΩ Max DC Resistance 250V AC B82723J2102N001



Category Power Line Filters Brand TDK Condition New

Specifications

Country of Origin	Hungary
Brand	TDK
Height	30.5mm
Length	28mm
Model	B82723J2102N001
Depth	18.6mm
Packaging	Tray
Mount Type	Radial
Series	B82721A
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Maximum Voltage	250V ac
Inductance	27mH
Standards/Approvals	VDE, UL, RoHS
Maximum DC Current	1A
Maximum DC Resistance	750mΩ
Inductance Tolerance	±30 %
Termination Style	Radial Lead
Maximum Self Resonant Frequency	10kHz
Lead Pitch	15mm
Lead Diameter	0.7mm

Key Features

Utilizes a ferrite core providing excellent magnetic properties and temperature stability.
Maximum DC resistance of 750 milliohms ensures minimal power loss.
Designed with a maximum operating voltage of 250V AC for industrial applications.
Features a maximum self-resonant frequency of 10 kHz for effective filtering.
Operates reliably between -40°C and 125°C, suitable for harsh environments.
Packaged in trays facilitating efficient insertion into machinery.
Complies with VDE, UL, and RoHS standards for quality and safety.
Radial lead style with 0.7 mm lead diameter and 15 mm lead pitch for easy PCB mounting.

Product Description

TDK B82723J2102N001 is a 27 mH ferrite power line choke with a radial lead style designed for industrial and electronic applications requiring reliable noise suppression and power conditioning. This power line choke features a ferrite core which enhances magnetic performance, allowing for efficient inductance with low losses.

The choke supports a maximum DC current of 1 A and a maximum DC resistance of 750 milliohms ensuring minimal voltage drop and power dissipation. It is rated for a maximum voltage of 250V AC and operates well within a temperature range of -40°C to 125°C, making it suitable for demanding environments in industrial machines and electronic equipment.

Its construction with radial leads (0.7 mm diameter leads and 15 mm lead pitch) facilitates ease of mounting on printed circuit boards. The maximum self-resonant frequency of 10 kHz ensures effective operation in noise filtering for switch-mode power supplies, computers, televisions, and other sensitive electronic devices.

This product series, B82721A, conforms to international standards including VDE 0565-2, UL 1283, and RoHS, assuring compliance, safety, and environmental responsibility. It is commonly used in applications such as electronic ballasts for lamps and power line filter circuits.

The component is supplied in trays for efficient handling and assembly in manufacturing processes. Originating from Hungary, this part combines quality engineering with industrial applicability for power line noise suppression tasks.

Utilizes a ferrite core providing excellent magnetic properties and temperature stability. Maximum DC resistance of 750 milliohms ensures minimal power loss. Designed with a maximum operating voltage of 250V AC for industrial applications.

Features a maximum self-resonant frequency of 10 kHz for effective filtering. Operates reliably between -40°C and 125°C, suitable for harsh environments. Packaged in trays facilitating efficient insertion into machinery.

Complies with VDE, UL, and RoHS standards for quality and safety. Radial lead style with 0.7 mm lead diameter and 15 mm lead pitch for easy PCB mounting. Explore more TDK power line chokes and inductors to meet your industrial, electronic, and power supply application needs at EnvMart.
