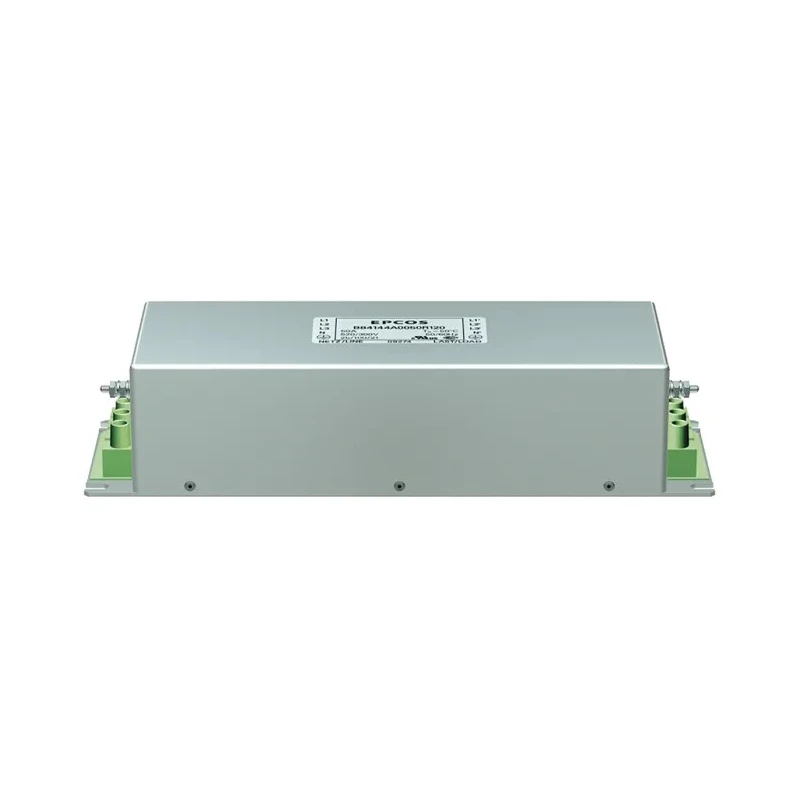

TDK Flange EMC Power Line Filter 90A 520V AC 50Hz/60Hz Screw Termination 3 Phase B84144A0090R120

TDK B84144A0090R120 is a high-quality flange EMC filter designed specifically for power line filtration in demanding industrial environments. This 3-phase filter is rated for a maximum current of 90A and maximum voltage of 520V AC, compatible with standard 50Hz and 60Hz frequencies. It features a flange mount type and screw termination style, ensuring stable and reliable connections.

The filter’s robust metal case is potted in polyurethane (UL 94 V-0), providing excellent protection and durability for extended operational life. Its single filtration stage is optimized for long motor cables under full load conditions, making it ideal for frequency converters used in motor drives, such as those found in elevators, pumps, conveyor systems, and HVAC machinery.

With operating temperatures ranging from -25°C to 100°C and a leakage current of 13mA, it guarantees safe and efficient performance. The device dimensions - 100mm height, 130mm length, and 327mm depth - allow for compact installation in various industrial setups.

This EMC filter complies with the stringent EN 133200, UL 1283, and CSA C22.2 No.8 standards, ensuring compatibility with international safety and quality requirements. It is designed to reduce electromagnetic interference on power lines, enhancing the reliability and longevity of electrical equipment in industrial and manufacturing applications.

Its applications include industrial power supplies, motor drive frequency converters in elevators, HVAC systems, pumps, and conveyor systems, expanding its utility across multiple sectors.

Choose the TDK B84144A0090R120 for efficient power line filtering solutions in commercial and industrial environments. Rated maximum current of 90A for robust power handling. Operates at a maximum voltage of 520V AC with 50Hz/60Hz frequency compatibility.

Features a flange mount type with screw termination for secure installation. Designed as a 3-phase EMC filter with a single filtration stage. Constructed with a metal case potted in UL 94 V-0 polyurethane for durability and safety.

Optimized for long motor cable applications and full load operation. Suitable for frequency converters in motor drives including elevators and HVAC systems. Complies with industry standards EN 133200, UL 1283, and CSA C22.2 No.8.

Operating temperature range from -25°C to 100°C with a leakage current of 13mA. Dimensions: Height 100mm, Length 130mm, Depth 327mm for compact industrial fitting. Browse more EMI Filters and power line filters on EnvMart for comprehensive industrial electrical solutions.
