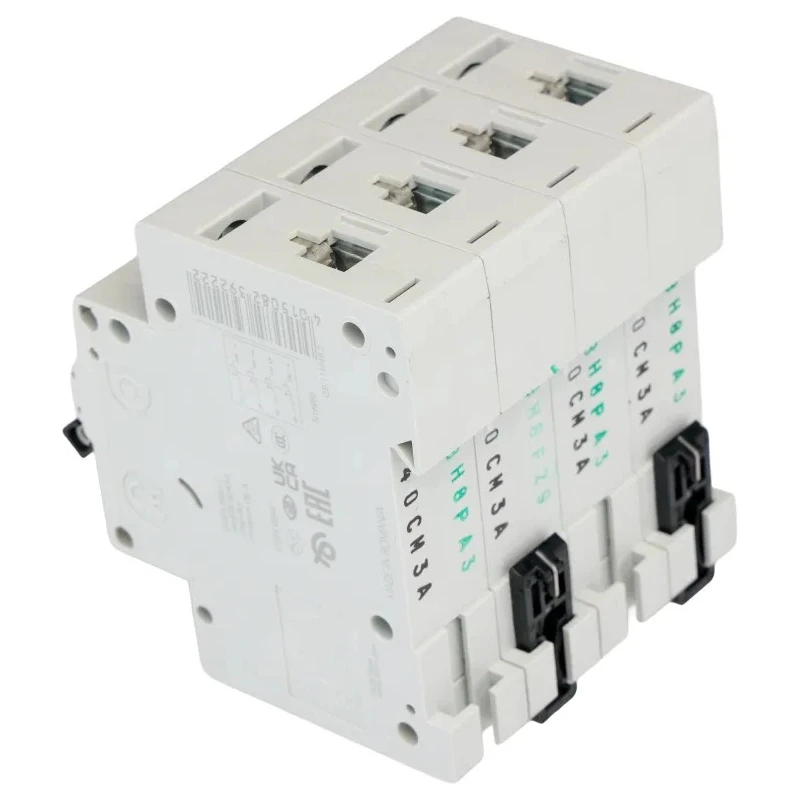

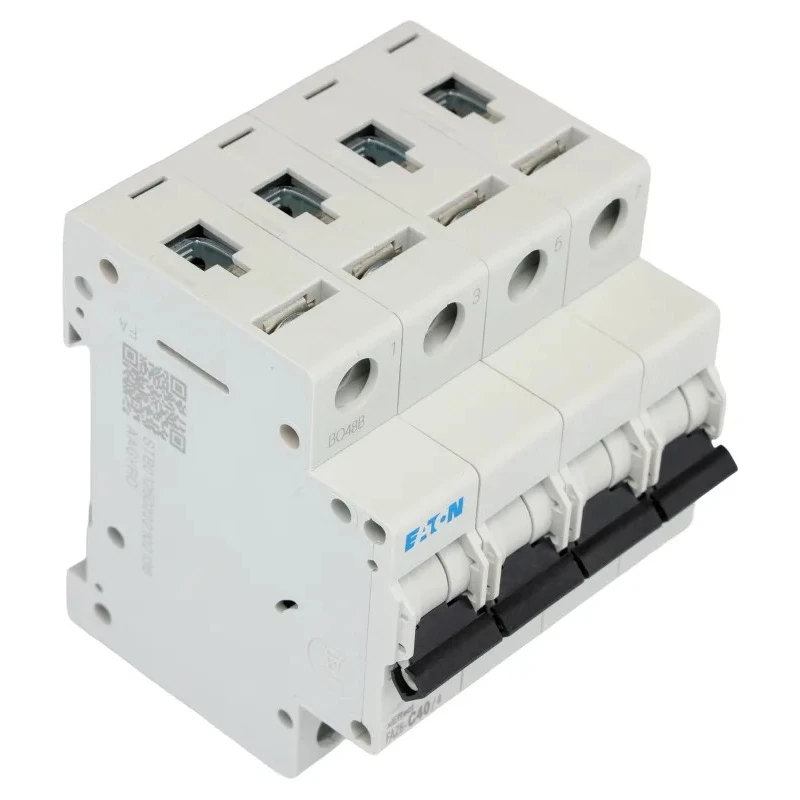

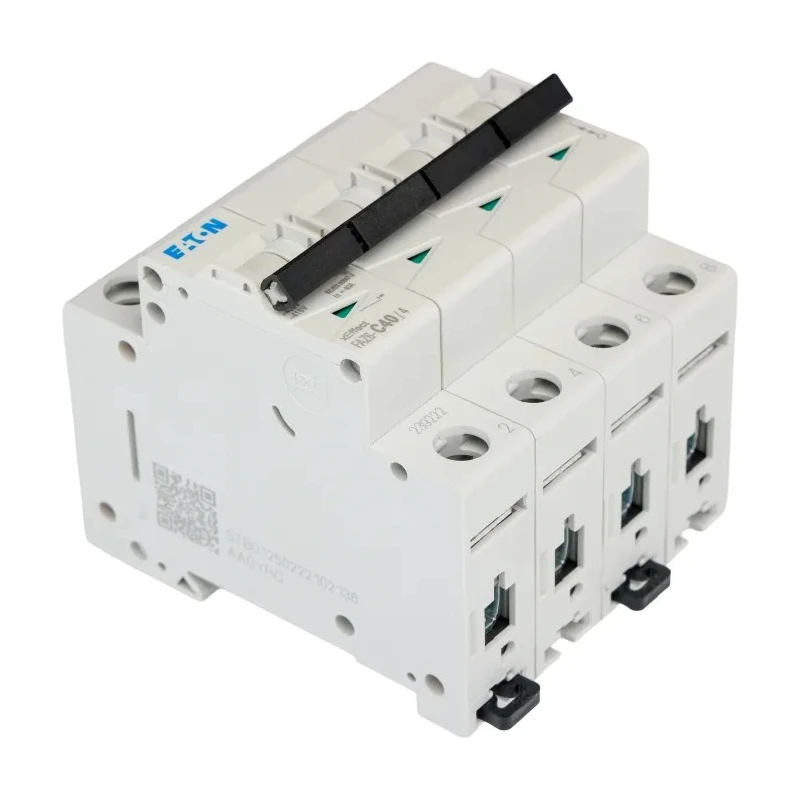

Schneider Electric xEffect Miniature Circuit Breaker 4-Poles 40A Type C 400V AC 6 kA Breaking Capacity 239222 FAZ6-C40/4

Eaton 239222 FAZ6-C40/4 is an xEffect series miniature circuit breaker designed for efficient and reliable electrical circuit protection. This 4-pole MCB supports a current rating of 40A and a Type C tripping characteristic, optimized for inductive loads such as motors and transformers.

It features a thermal magnetic tripping mechanism for fast disconnection to prevent damage from overloads and short circuits. With a rated AC voltage of 400V and a breaking capacity of 6 kA, it ensures safety and compliance in residential, commercial, and industrial electrical installations.

The MCB is designed for DIN rail mounting, facilitating easy and secure installation within distribution boards and control panels. Its compact dimensions of approximately 70mm width, 62mm depth, and 85mm length allow for effective space utilization.

This device supports conductor cross-sectional areas ranging from 1 mm² to 25 mm² for both solid and stranded wire connections, offering flexibility in wiring choices. The IP20 rating provides protection against finger access and low voltage compliance.

Engineered to operate in ambient temperatures from -25°C to 75°C, the MCB is well-suited for diverse environments including industrial automation, commercial electrical systems, and low voltage power installations.

Built to meet IEC/EN 60947-2 standards, it ensures conformity with international safety and electromagnetic compatibility regulations. The robust design makes it ideal for safeguarding electrical circuits against fault currents with instantaneous break times.

This MCB offers robust circuit protection for residential, commercial, and industrial uses. Type C tripping characteristic suits inductive loads and prevents nuisance trips during motor start-up. High breaking capacity of 6 kA ensures reliable protection from short circuits.

Designed for easy DIN rail installation within electrical panels. Supports a wide range of conductor sizes for flexible wiring. Compact form factor and IP20 rating enhance safe and space-efficient installation. Operates over a broad temperature range suitable for multiple environments.

Complies with IEC/EN 60947-2 standards ensuring quality and safety.

This Eaton MCB is part of the xEffect series, formerly from Moeller, delivering dependable performance for low voltage circuit protection in electrical distribution systems. Explore the range of Miniature Circuit Breakers at EnvMart for advanced electrical safety solutions.
