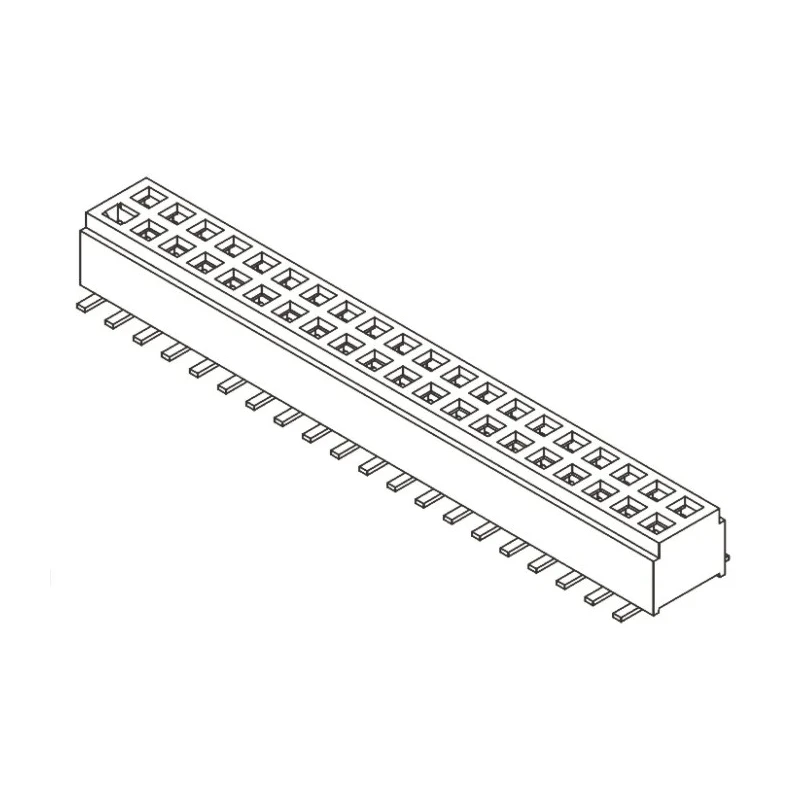

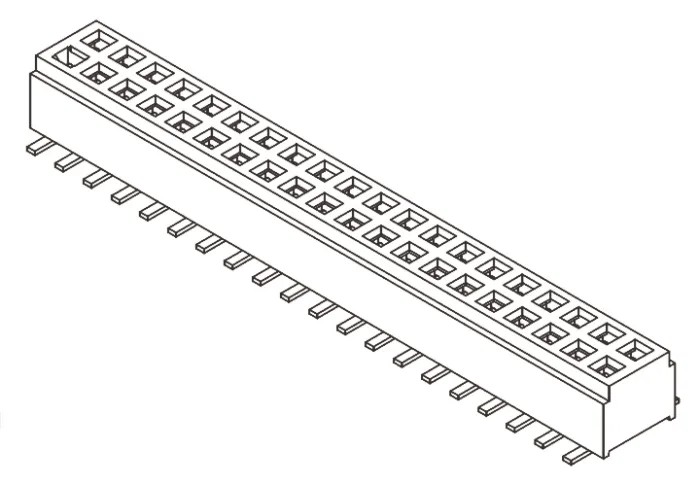

Samtec CLM Series Straight Surface PCB Socket 40-Contact 2 Row 1 mm Pitch Solder CLM-120-02-L-D

Samtec CLM-120-02-L-D is a high-quality straight surface PCB socket from the CLM Series featuring 40 contacts arranged in 2 rows with a 1 mm pitch for solder termination.

This board-to-board socket is engineered for precision and durability using a black liquid crystal polymer housing and bronze contacts plated with 0.25 μm gold on the Tiger Claw contacts to ensure optimal electrical performance and corrosion resistance.

Rated for 12 amperes nominal current and 270 volts, it is suitable for demanding industrial, electronic manufacturing, and laboratory applications requiring reliable connectivity. The socket supports operating temperatures from -55°C to 125°C, offering stability across harsh temperature variations.

Its low profile height of 2.26 mm optimizes space on compact printed circuit boards, making it ideal for high-density electronic assemblies. Mounting is surface type compatible with SMT processes supporting efficient automated assembly.

This socket mates specifically with Samtec FTMH Series Headers, facilitating robust board-to-board connections in electronic device manufacturing. The socket features a straight orientation with a rugged design for reliable micro socket performance.

It supports a current rating of up to 12 A at 270 V. Constructed with a black liquid crystal polymer housing to ensure durability and high-temperature resistance. Contacts are made of bronze with 0.25 μm gold plating for enhanced conductivity and corrosion resistance.

Operating temperature ranges from -55°C to 125°C, suitable for various industrial environments. Designed for surface mount technology (SMT) mounting on PCBs. Low profile height of 2.26 mm allows compact board stacking. Compatible with Samtec FTMH Series Headers for board-to-board connection.

This product is widely used in electronics manufacturing, industrial control systems, communications equipment, and laboratory instrumentation. Explore more electronic components and PCB Sockets from Samtec at EnvMart for reliable performance and quality assurance.
