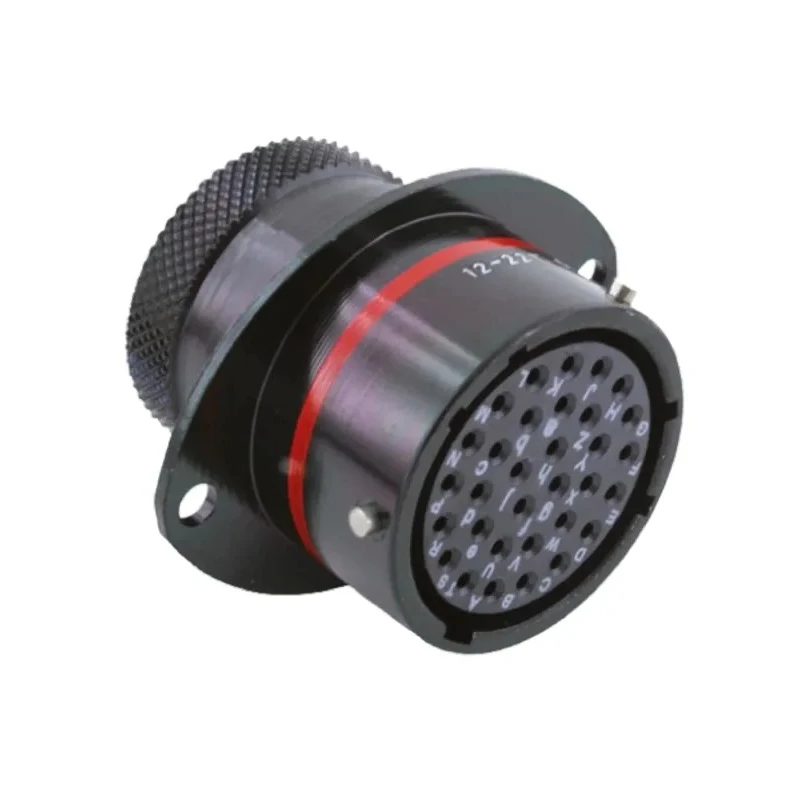

Souriau Sunbank by Eaton Circular Connector 32 Contacts Panel Mount Socket Female IP67 1000V 7.5A 8STA01832SN

Souriau Sunbank by Eaton 8STA01832SN is a high-performance circular connector with 32 contacts designed for demanding industrial and motorsport environments. This panel mount, socket, and female connector offers IP67 ingress protection, ensuring robustness against dust and water immersion up to 1 meter for 30 minutes.

Constructed from aluminium alloy with conductive black zinc plating, it provides an excellent balance of strength and light weight. The connector supports up to 7.5A current and withstands voltages up to 1000V, making it suitable for power and signal transmission in compact spaces.

With a temperature operating range from -55°C to 175°C, this connector is engineered to function reliably under extreme environmental conditions. Gold-plated copper alloy contacts guarantee excellent conductivity and corrosion resistance, essential for high-reliability applications.

The 8STA series connectors feature a quick mating bayonet lock mechanism, enabling connection with a one-third turn accompanied by an audible click, ensuring secure and fast installation. Its design exhibits excellent shock resistance (300g for 3ms) and vibration endurance (147m/s² from 10 to 2000 Hz), tailored for motorsport (Formula 1, Moto GP, WRC, Nascar) and military use including UAVs, ground vehicles, and infantry systems.

This circular connector incorporates EMI-RFI shielding and a scoop-proof design for enhanced electromagnetic compatibility and reliability. The colour-coded banding system simplifies identification and connectivity in complex systems.

This circular connector supports a current of 7.5 amperes. It operates at up to 1000 volts and features a bayonet mating type for secure connection. Constructed with an aluminium alloy housing and black zinc plating for durability.

Rated for temperatures from -55°C to 175°C, suitable for harsh environments. The contacts are gold-plated copper alloy ensuring reliable electrical conductivity. Designed for motorsport, military, and industrial applications with shock resistance and EMI-RFI shielding.

Compact and lightweight with a quick mate in one-third turn and audible click. Complies with no specific standards or approvals but built to MIL-DTL-38999 derived specifications.

Suitable for industrial, laboratory, military, motorsport, and aerospace sectors. This connector ensures secure, reliable connections under high vibration and impact conditions. Browse more Industrial Circular Connectors at EnvMart for your professional applications.
