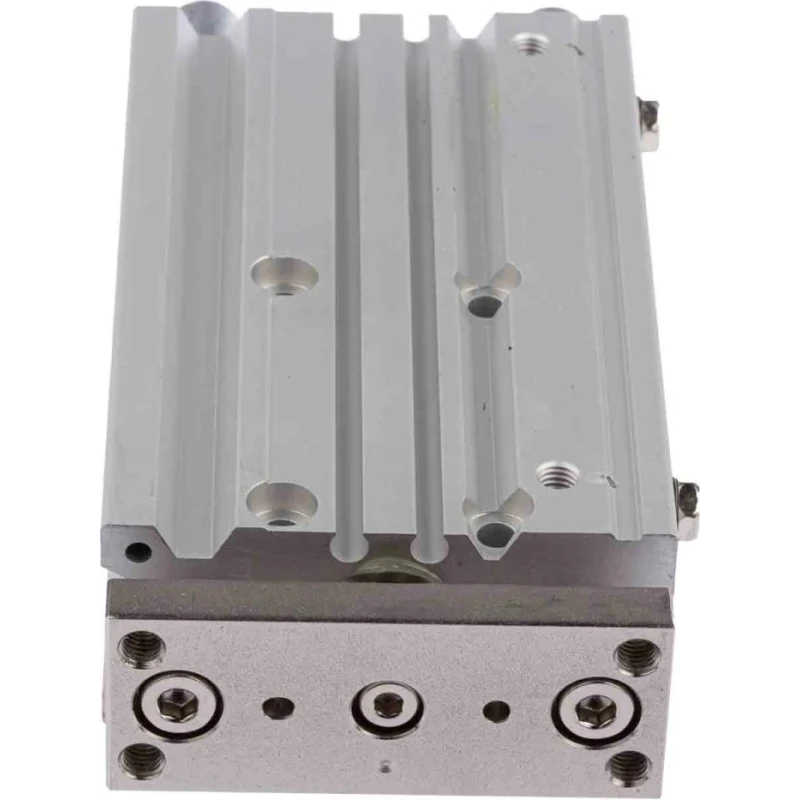

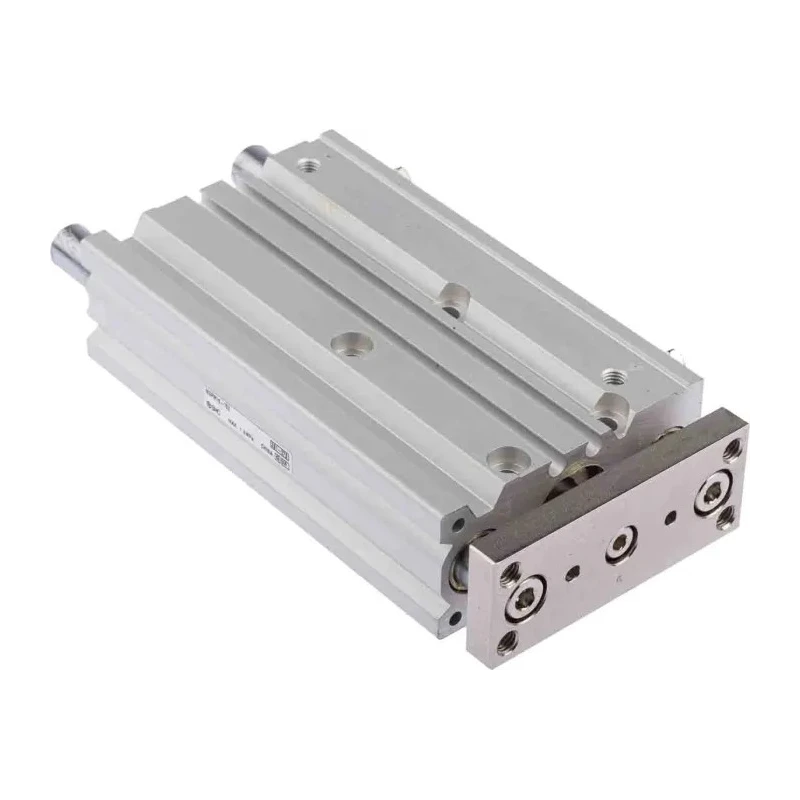

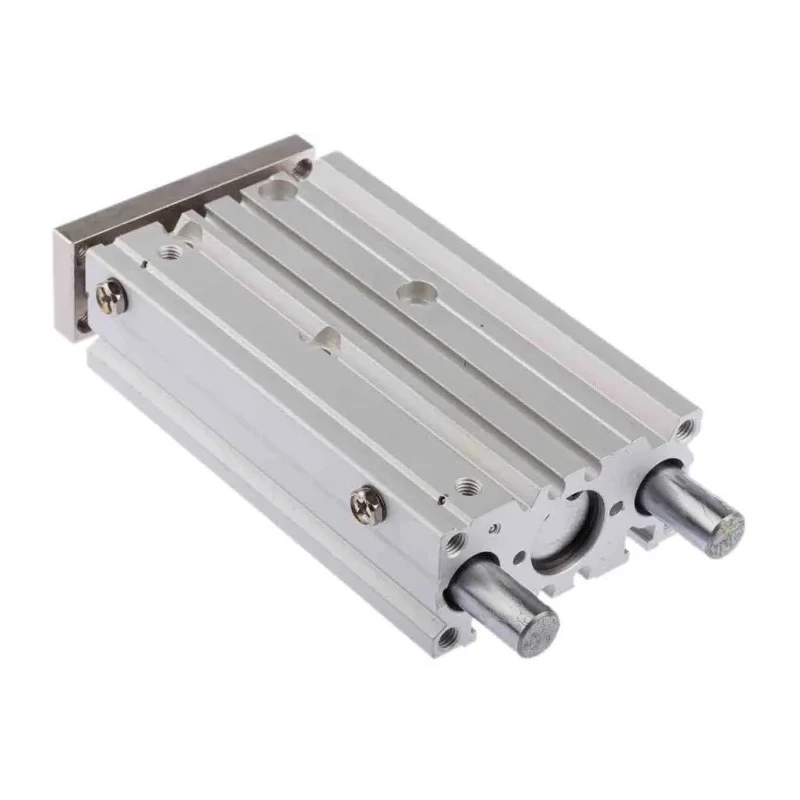

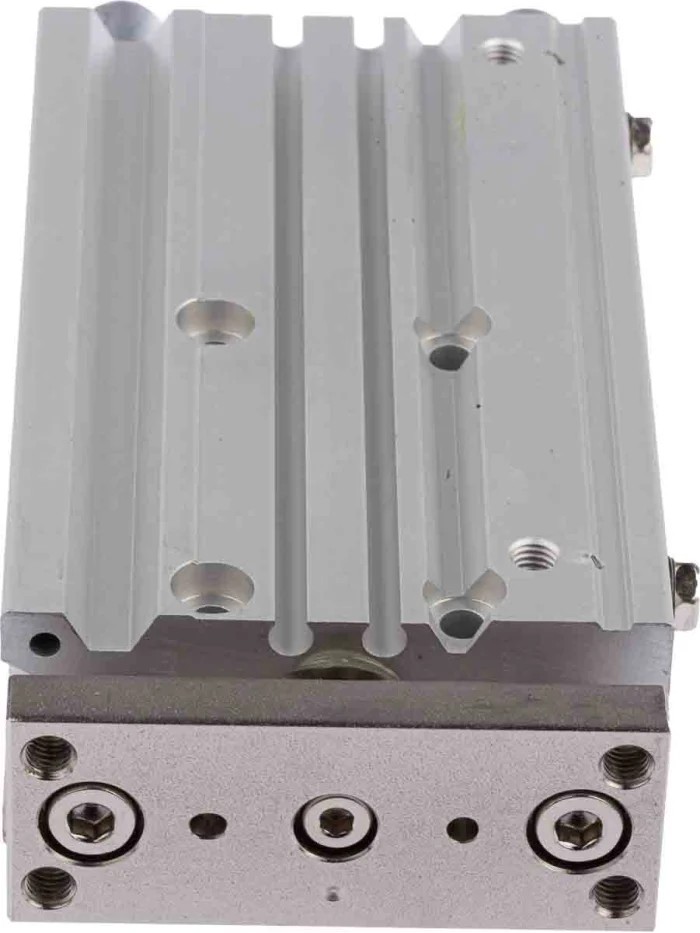

SMC Pneumatic Guided Cylinder 16mm Bore Aluminium Alloy Body Double Acting 1 Mpa Max Operating Pressure 75mm MGPM16-75Z
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Height | 58mm |
| Length | 139.5mm |
| Model | MGPM16-75Z |
| Gross Weight | 680g |
| Width | 26mm |
| Series | MGP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 75mm |
| Bore Diameter | 16mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Rubber |
| Guide Type | Slide Bearing |
| Piston Rod Thread Standard | Rc |
| Piston Rod Thread Size | M5 x 0.8 |
Key Features
- Compact aluminium alloy body ensures lightweight and easy integration.
- Double acting cylinder design with 1 Mpa maximum operating pressure.
- 75mm stroke length providing precise short-travel positioning.
- Slide bearing guide enhances lateral support and side-load tolerance.
- Rubber cushioning reduces impact shock at both ends for smooth operation.
- Piston rod with M5 x 0.8 thread allows standardized mounting.
- Operates reliably between -10°C to 60°C for industrial environments.
- Maximum piston speed of 500mm/s supports high cycle automation.
Product Description
SMC MGPM16-75Z Pneumatic Guided Cylinder is a compact, double-acting linear actuator designed for applications requiring guided motion in restricted spaces. With a 16mm bore and 75mm stroke, this cylinder combines a lightweight aluminium alloy body with slide bearing guidance to ensure precise and smooth linear movement.
The cylinder operates at a maximum pressure of 1 Mpa and supports piston speeds up to 500mm/s, making it suitable for high-cycle industrial automation tasks. Rubber bumpers at both ends provide cushioning to minimize end stroke impact and vibration, enhancing component longevity.
The piston rod features an M5 x 0.8 threaded end conforming to Rc standards for compatibility with common mounting hardware and tooling. Its operating temperature range from -10°C to 60°C makes it ideal for typical indoor industrial environments.
With its slim profile - 58mm height, 26mm width, and 139.5mm length - the MGPM16-75Z fits well in compact automation cells, pick-and-place stations, and test rigs where guided short strokes are required. Its slide bearing guide adds lateral stability, improving resistance to side loads compared to unguided cylinders.
This Pneumatic Guided Cylinder is widely used in electronics manufacturing, assembly lines for component alignment, gating or latching in automation systems, and transfer or feed actions in manufacturing processes.
Compact aluminium alloy body ensures lightweight and easy integration. Double acting cylinder design with 1 Mpa maximum operating pressure. 75mm stroke length providing precise short-travel positioning. Slide bearing guide enhances lateral support and side-load tolerance.
Rubber cushioning reduces impact shock at both ends for smooth operation. Piston rod with M5 x 0.8 thread allows standardized mounting. Operates reliably between -10°C to 60°C for industrial environments. Maximum piston speed of 500mm/s supports high cycle automation.
Choose this SMC MGP series guided cylinder for reliable, compact pneumatic actuation in diverse industrial and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this cylinder is 1 Mpa.
The stroke length of the MGPM16-75Z is 75mm, providing precise short-travel positioning.
This model has a bore diameter of 16mm.
The dimensions are 58mm in height, 26mm in width, and 139.5mm in length.
It features rubber cushioning to reduce impact shock at both ends for smooth operation.
The MGPM16-75Z operates reliably between -10°C and 60°C.
This cylinder uses a slide bearing guide, which enhances lateral support and side-load tolerance.
The maximum piston speed is 500mm/s, supporting high cycle automation tasks.
The piston rod has an M5 x 0.8 thread size, conforming to Rc standards for compatibility with common mounting hardware.
The body is made of aluminium alloy, ensuring a lightweight design for easy integration.
This model is widely used in electronics manufacturing, assembly lines for component alignment, and transfer actions in manufacturing processes.
The gross weight of this cylinder is 680g.
