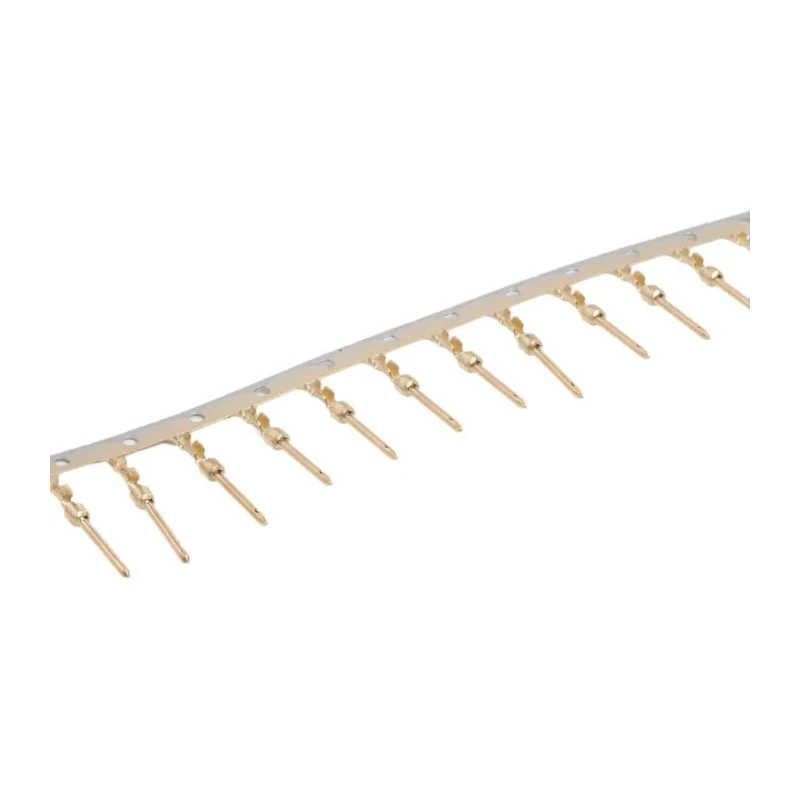

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold over Nickel Pin 24 AWG 66507-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 1.2A |
| Length | 14.61mm |
| Model | 66507-3 |
| Gender | Male |
| Contact Material | Brass |
| Series | AMPLIMITE HDP-20 |
| Termination Type | Crimp |
| Contact Type | Pin |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 24AWG |
| Contact Size | 20 |
| Maximum Contact Resistance | 15mΩ |
| • Pin diameter | 0.04 (1.02) |
Key Features
- Constructed from brass for excellent conductivity and durability.
- Gold over nickel plated pins enhance corrosion resistance and signal integrity.
- Designed for size 20 AMPLIMITE HDP-20 series connectors.
- Supports wire sizes from 28 AWG to 24 AWG, suitable for fine wiring.
- Rated for a current of 1.2 amperes ensuring efficient power handling.
- Maximum contact resistance of 15 milliohms to maintain signal quality.
- Pin diameter of 1.02 mm (0.04 inch) for secure mating.
- Ideal for use in electronic equipment, computing devices, and power connector assemblies.
Product Description
TE Connectivity 66507-3 AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact features brass construction with gold over nickel plating for enhanced durability and conductivity. This contact is designed for the AMPLIMITE D-Sub connector system and allows secure termination of wires sized between 28 AWG and 24 AWG via crimping.
With a compact length of 14.61 mm and a pin diameter of 1.02 mm, this high-quality contact offers reliable electrical performance with a maximum contact resistance of 15 milliohms and current rating up to 1.2 A. It is essential for establishing durable electrical connections in industrial, laboratory, manufacturing, and computing applications where precise and efficient signal transmission is critical.
The contacts are gold plated over nickel to resist corrosion and wear, ensuring longevity in demanding operating environments. The crimp termination type facilitates easy installation using compatible tools such as the TE Connectivity Crimp Tool 446-816 and Insertion/Extraction Tool 446-822, enhancing productivity in assembly lines.
This part fits within the AMPLIMITE HDP-20 product series, widely used in electronic connectors for professional equipment. It helps improve signal integrity and mechanical stability in connectors used in power and computing applications.
Constructed from brass with gold over nickel plating for durability. Supports wire sizes from 28 AWG to 24 AWG. Rated current of 1.2 amperes and low contact resistance of 15 mΩ. Length of 14.61 mm and pin diameter of 1.02 mm.
Designed for crimp termination ensuring reliable connections. Compatible with dedicated crimping and extraction tools from TE Connectivity. Suitable for industrial, electronic, laboratory, and manufacturing use cases. Facilitates improved production efficiency with reel packaging.
This TE Connectivity product is part of the trusted AMPLIMITE HDP-20 series, supporting assembly and maintenance of high-performance D-Sub connectors. Browse EnvMart's extensive catalog for complementary electronic components and connectors from TE Connectivity.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp contact is rated for a maximum current of 1.2 amperes.
It supports wire sizes from 28 AWG to 24 AWG, suitable for fine wiring applications.
The pin diameter is 1.02 mm (0.04 inch), ensuring a secure mating connection.
The length of this contact is 14.61 mm.
It is constructed from brass, providing excellent conductivity and durability.
The contact features gold over nickel plating, enhancing corrosion resistance and signal integrity.
The maximum contact resistance is 15 milliohms, which helps maintain signal quality.
This model uses a crimp termination type for secure wire connections.
It is compatible with TE Connectivity's Crimp Tool 446-816 and Insertion/Extraction Tool 446-822 for installation.
It is suitable for use in electronic equipment, computing devices, and power connector assemblies.
This contact is part of the AMPLIMITE HDP-20 series, designed for D-Sub connector systems.
The country of origin for this product is India.
