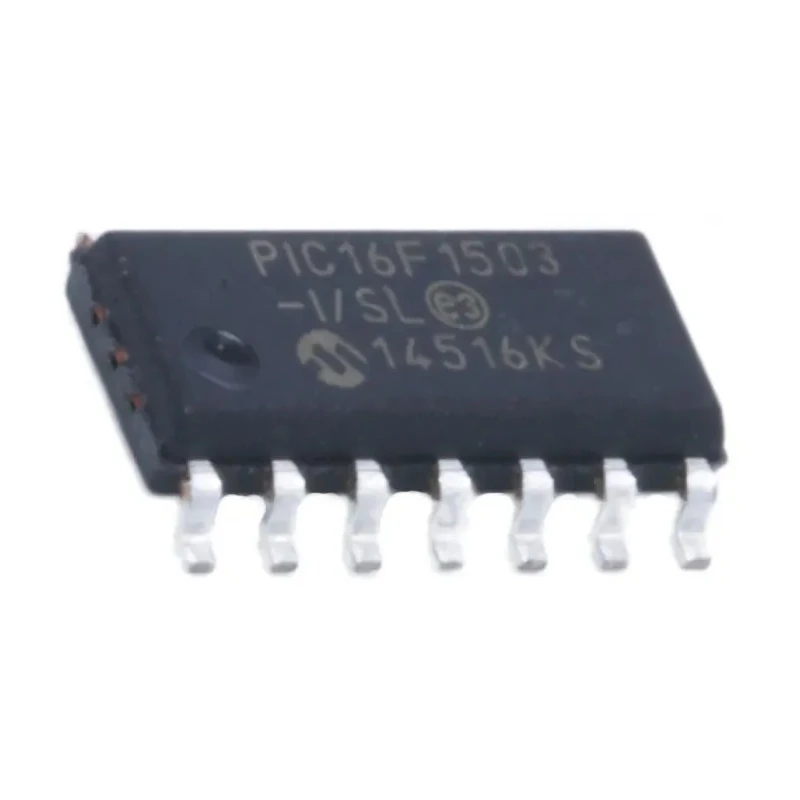

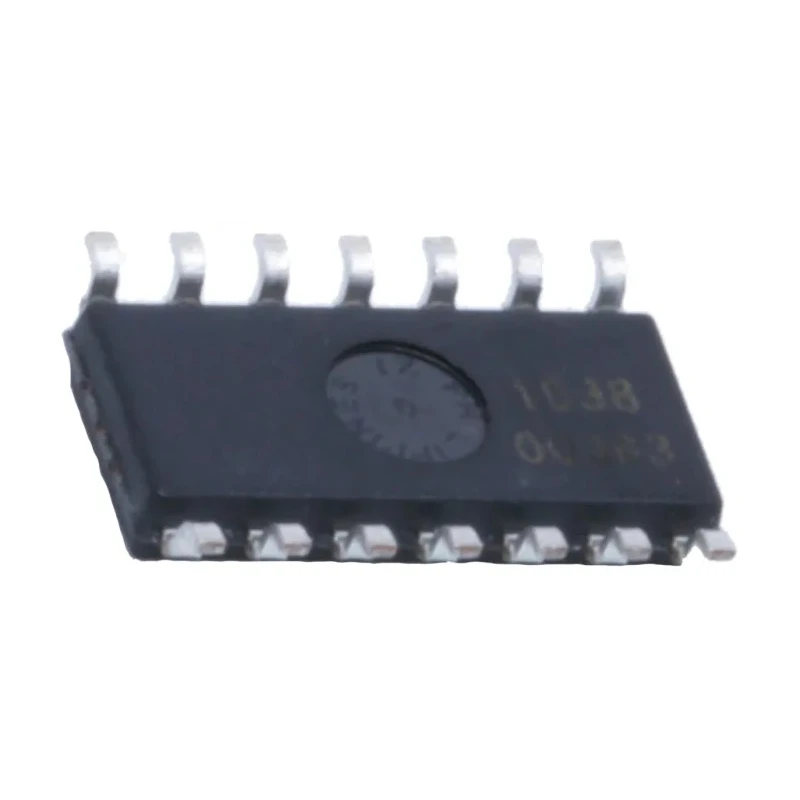

Microchip 8 bit PIC Microcontroller, 3.5 kB FLASH, 20 MHz CPU Speed, 14-Pin SOIC Package PIC16F1503-I/SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.25mm |
| Length | 8.65mm |
| Model | PIC16F1503-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC16F1503 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Pin Count | 14 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 10 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates on a maximum supply voltage of 5.5 V and minimum voltage of 2.3 V.
- Contains 12 programmable input/output pins supporting flexible interfacing.
- Features an 8-channel 10-bit ADC and one 5-bit DAC for analog conversion and output.
- Built with a RISC architecture providing 49 instruction sets and 16 level hardware stack.
- Integrated power management with power-on reset, low-power brown-out reset, and watchdog timer.
- Advanced peripherals include digital comparators, configurable logic cells, and a master synchronous serial port with SPI and I2C support.
- Designed to operate reliably from -40°C to +85°C for industrial applications.
- Compliant with automotive standard ISO/TS 16949 for quality assurance in automotive systems.
Product Description
Microchip PIC16F1503-I/SL is an 8 bit enhanced mid-range PIC microcontroller combining advanced features in a 14-pin SOIC package. It operates at a maximum CPU speed of 20 MHz and incorporates 3.5 kB of FLASH memory and 128 bytes of RAM, ensuring efficient program execution and data handling.
This microcontroller supports a wide range of embedded system applications including industrial control, automotive electronics, consumer devices, and automation systems. The device core employs a reduced instruction set computing (RISC) architecture with 49 instructions and a 16-level deep hardware stack providing robust program flow control.
The integrated configurable oscillator provides ±1% accuracy, supporting flexible clock options. With 12 programmable I/O pins, 10-bit ADC channels, a 5-bit DAC, and multiple timers including 8-bit and 16-bit types, the PIC16F1503-I/SL facilitates precise analog and timing control for complex embedded tasks.
It includes power management features such as power-on reset, power-up timer, programmable low power brown-out reset, and extended watchdog timer for improved system reliability. The microcontroller also offers multiple peripheral modules including dual comparators, voltage reference, master synchronous serial port supporting SPI and I2C communications, configurable logic cells (CLC), and complementary waveform generators (CWG) to enhance digital signal processing and peripheral control.
Operating temperature ranges from -40°C to +85°C make this device suitable for harsh environments. It conforms to ISO/TS 16949 automotive quality standards ensuring strict reliability criteria for automotive and industrial applications.
Operates at 20 MHz maximum clock frequency. Provides 3.5 kB FLASH program memory and 128 byte RAM. Includes 12 programmable I/O pins and advanced peripheral support. Features power management and in-circuit programming/debug capabilities.
Supports multiple communication protocols via MSSP module with SPI and I2C. Manufactured with automotive standard ISO/TS 16949 compliance.
The Microchip PIC16F1503-I/SL is ideal for developers seeking a compact, feature-rich 8-bit microcontroller solution for industrial, automotive, laboratory, and embedded system applications. Explore our extensive selection of Microcontrollers and development tools for tailored solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum CPU speed of this microcontroller is 20 MHz.
It operates reliably within a temperature range of -40°C to +85°C.
This microcontroller includes 3.5 kB of FLASH memory for program storage.
The microcontroller features a total of 14 pins.
It includes dual analog comparators, a 10-bit ADC with 10 channels, a 5-bit DAC, and a master synchronous serial port supporting SPI and I2C protocols.
The minimum supply voltage is 2.3 V, while the maximum supply voltage is 5.5 V.
This microcontroller has a RAM size of 128 bytes.
It comes in a 14-pin SOIC package type.
The PIC16F1503-I/SL has 12 programmable input/output pins.
It employs a RISC architecture with 49 instruction sets.
It is compliant with the ISO/TS 16949 automotive standard for quality assurance.
The microcontroller includes three timers, which consist of both 8-bit and 16-bit types.
