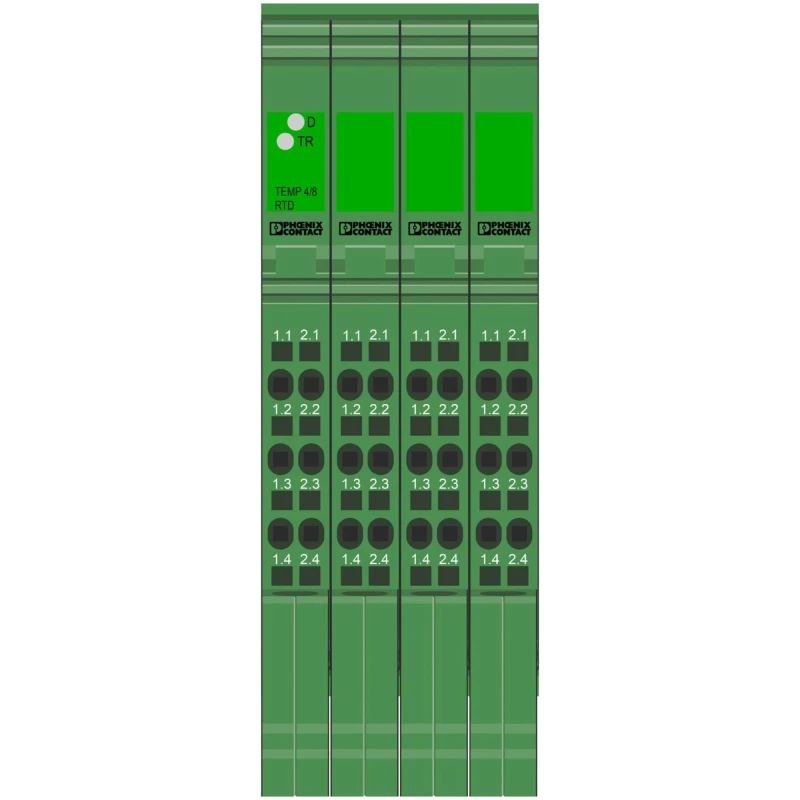

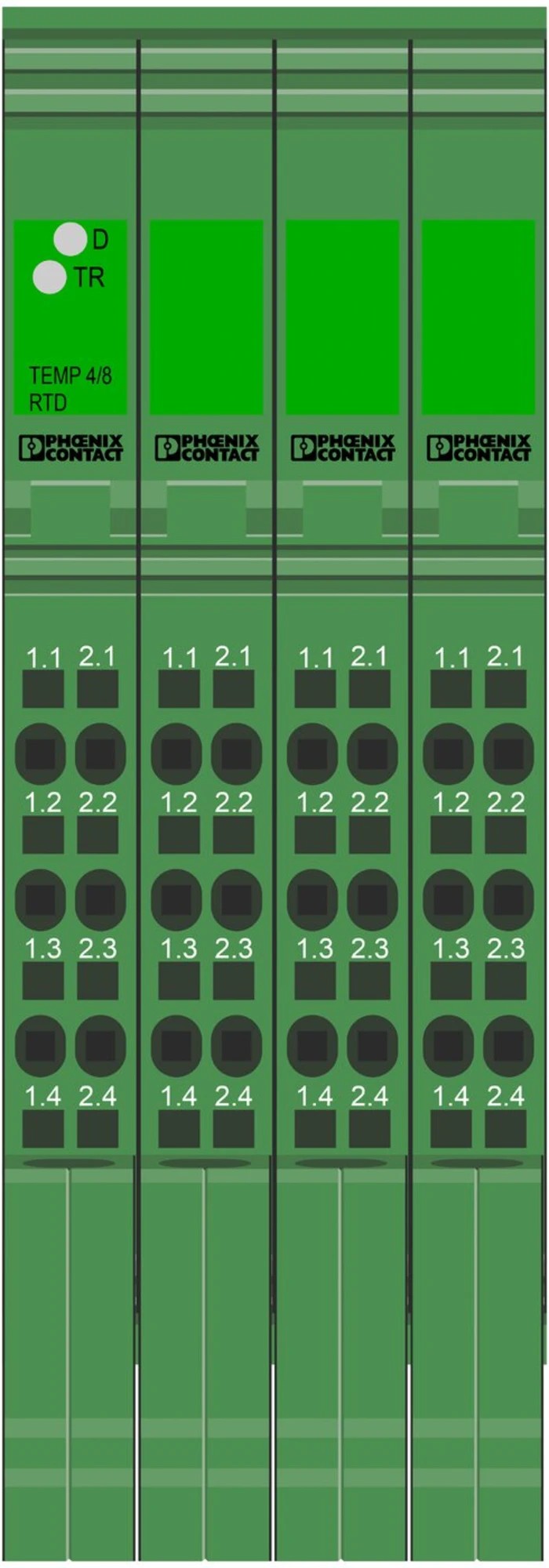

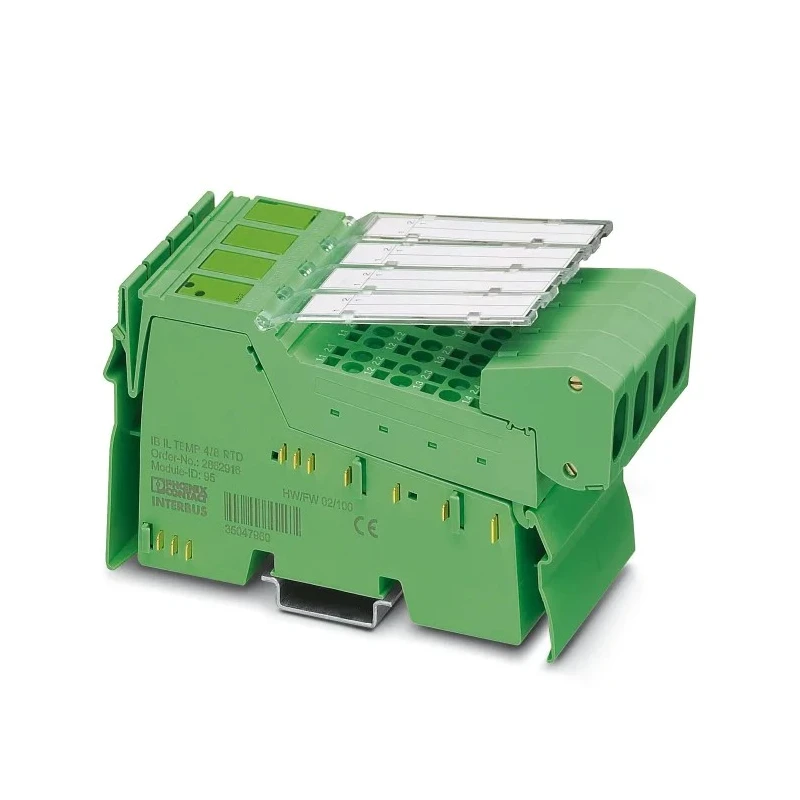

Phoenix Contact IB IL Series Analogue Input Module 8 Inputs Resistive Temperature Sensor 24V DC 2863915

Phoenix Contact 2863915 Analogue Input Module is a high-performance temperature accessory module designed for industrial, manufacturing, and power plant applications. It provides 8 input channels compatible with resistive temperature sensors (RTD) and linear resistors up to 20 kΩ, supporting precise measurement in real-time with millisecond range response.

This module belongs to the IB IL series and operates at 24 V DC, making it ideal for integration with Inline Station systems. The compact module measures 48.8 mm wide, 136.8 mm high, and 71.5 mm deep, allowing for space-efficient installation on DIN rails.

Built to withstand harsh industrial conditions, the unit carries an IP20 rating protecting against solid foreign objects larger than 12 mm. It operates reliably within a temperature range of -25°C to +55°C and supports operation in environments with 10 to 95% relative humidity, including steamy settings.

The module enables easy and flexible connection of sensors via 2- or 3-conductor technology. Each of the 8 channels can be independently parameterized using the bus communication system, facilitating tailored configurations to meet complex measurement demands.

Diagnostic and status indicators provide users with real-time operational feedback to ensure accurate system monitoring. The module is lightweight at around 190 grams, ensuring minimal mechanical strain during installation.

This analogue input module is widely used in industrial automation systems including industrial communications and manufacturing setups where temperature monitoring via resistive sensors is critical.

The module features 8 channels designed for resistive temperature and linear resistor sensors up to 20 kΩ resistance. Compact dimensions make it suitable for dense DIN rail mounting in control panels. IP20 rating ensures touch protection and safeguards against medium-sized foreign objects.

Operating temperature range is from -25°C up to +55°C for broad environmental compatibility. Supports both 2- and 3-conductor sensor technology connections for flexibility. Channels are parameterized independently to support multiple sensor types and configurations.

Diagnostic and status LED indicators facilitate straightforward system monitoring. The module withstands industrial electromagnetic interference, ensuring reliable readings. Ideal for industrial automation systems, manufacturing, and power plant applications.
