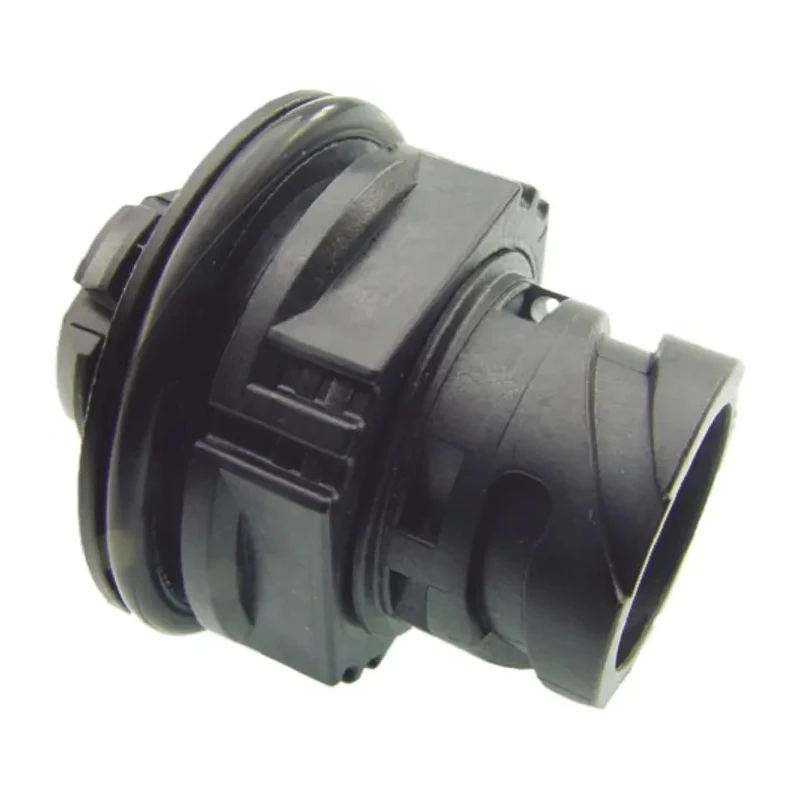

ITT Cannon Circular Connector Panel Mount 7 Contacts Socket Female 23.5 mm IP67 IP69K APD Series 121583-0019
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 48.0V |
| Brand | ITT Cannon |
| Orientation | Straight |
| IP Rating | IP67, IP69K |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | APD |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 7 |
| Contact Plating | Silver |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Shell Size | 38 |
| Mating Type | Bayonet |
| Connector Size | 23.5 mm |
| Plug/Socket | Socket |
Key Features
- Designed for high power applications with a 48V DC operating voltage.
- Panel mount configuration ensures secure installation and durability.
- Compact 23.5 mm connector size with a bayonet mating type for reliable connection.
- Constructed with thermoplastic housing and copper alloy contacts plated with silver for corrosion resistance.
- Meets IP67 and IP69K ratings for protection against dust and high-pressure water jets.
- Operates in wide temperature range from -40°C to 125°C for harsh industrial environments.
- Suitable for transportation, military, and industrial applications requiring rugged, lightweight connectors.
- Includes termination type crimp with a straight orientation for easy integration.
Product Description
ITT Cannon 121583-0019 Circular Connector is a panel mount socket with 7 female contacts designed for industrial and transportation applications. The 23.5 mm diameter connector is part of the APD Series, which provides high power and robust performance in harsh environments. Rated to IP67 and IP69K, this connector withstands dust ingress and high-pressure water jets, making it ideal for on- and off-road vehicles.
The connector operates at 48 VDC with a contact resistance maximum of 5 mΩ and insulation resistance of at least 10 MΩ, ensuring dependable electrical performance. Its thermoplastic housing and silver-plated copper alloy contacts offer excellent corrosion resistance and durability. The bayonet mating type and crimp termination facilitate secure and reliable connections.
The APD Series connectors are widely used in brake and traction control systems, sensors, lighting on trucks and trailers, and military applications. They feature capability for high concentration of pins in a compact 1.6 mm connector system, providing small size without sacrificing robustness.
The connector is designed for operating temperatures from -40°C to 125°C, meeting DIN EN 60529 and ISO 15170-2 standards. This product originates from Poland and supports demanding environments requiring lightweight, corrosion-resistant connectivity solutions.
Panel mount socket connector with 7 female contacts. 23.5 mm connector size with bayonet mating type. Thermoplastic housing and silver-plated copper alloy contacts. Rated IP67 and IP69K for dust and water ingress protection.
Operating voltage 48 VDC, contact resistance max 5 mΩ. Temperature range -40°C to 125°C, suitable for harsh environments. Used in transportation, industrial, and military applications. Meets DIN EN 60529 and ISO 15170-2 standards.
Discover more Industrial Circular Connectors in the Electronics & Electricals category on EnvMart for your specialized application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at 48 VDC, making it suitable for high power applications.
It is rated IP67 and IP69K, providing protection against dust ingress and high-pressure water jets.
The connector has a compact size of 23.5 mm in diameter, which is part of its design for high-density applications.
This unit features 7 female contacts, designed for reliable electrical connections in various applications.
It is constructed with a thermoplastic housing and copper alloy contacts that are plated with silver for corrosion resistance.
The connector utilizes a crimp termination type with a straight orientation for easy integration.
It operates in a wide temperature range from -40°C to 125°C, suitable for harsh industrial environments.
This model features a bayonet mating type, ensuring a secure and reliable connection.
The connector originates from Poland, adhering to quality standards in its production.
It is suitable for transportation, military, and industrial applications that require rugged and lightweight connectors.
It meets DIN EN 60529 and ISO 15170-2 standards, ensuring its reliability and performance in demanding environments.
The maximum contact resistance is 5 mΩ, ensuring dependable electrical performance.
