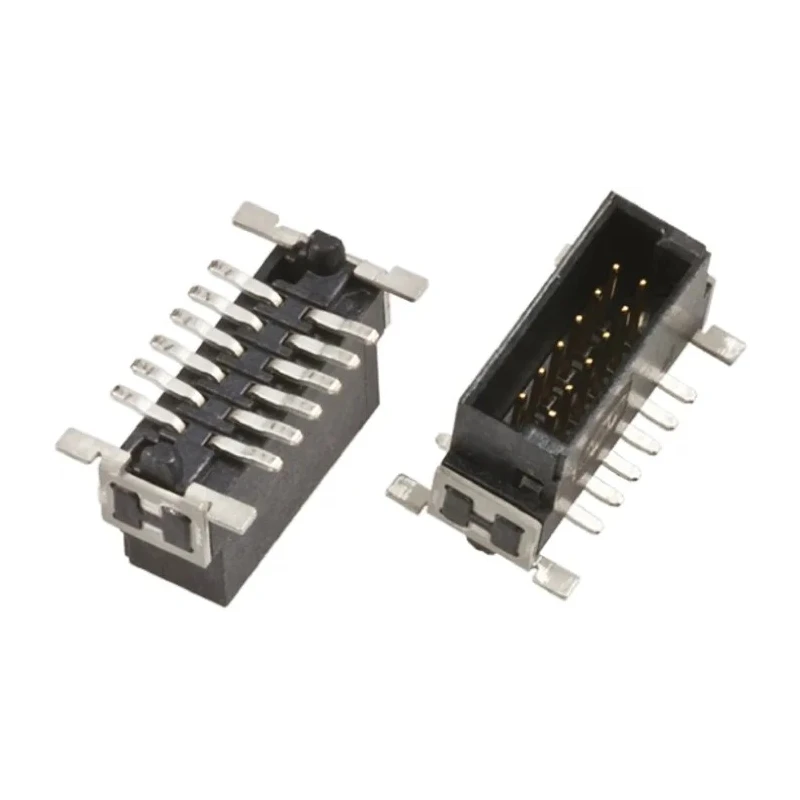

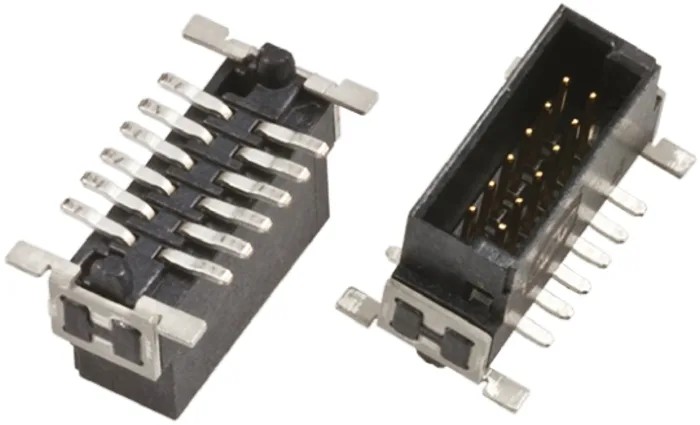

HARTING Har-Flex Series Straight Surface PCB Header, 26 Contacts, 1.27 mm Pitch, 2 Row, Shrouded 15120262601000

Name: HARTING Har-Flex Series Straight Surface PCB Header, 26 Contacts, 1.27 mm Pitch, 2 Row, Shrouded 15120262601000
Brand: HARTING
SKU: 104302
Price: 4.66 USD
Availability: InStock



Category PCB Headers Brand HARTING Condition New

Specifications

Country of Origin	China
Voltage	500V
Brand	HARTING
Orientation	Straight
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	Har-Flex
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	26
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Mating Pin Length	4mm

Key Features

Designed for board-to-board and wire-to-board connectivity.
Constructed with liquid crystal polymer housing for durability.
Operates reliably from -55°C to 125°C.
Features solder termination and male contact gender.
Supports voltage up to 500V for robust performance.
Compact and space-saving with 1.27 mm pitch and 4 mm mating pin length.
Surface mount type for easy PCB integration.
Ideal for industrial and electronic device applications.

Product Description

HARTING 15120262601000 Har-Flex Series Straight Surface PCB Header is a high-quality connector designed for versatile board-to-board and wire-to-board applications. Featuring 26 contacts arranged in two rows with a 1.27 mm pitch, this shrouded male header connector ensures secure and reliable solder termination on surface-mounted PCBs.

The connector utilizes a rugged liquid crystal polymer housing, supporting operational temperatures from -55°C up to 125°C. Its copper alloy contacts are gold-plated to provide excellent conductivity and corrosion resistance, supporting voltages up to 500V. The 4 mm mating pin length facilitates secure connection stability.

This Har-Flex SMT connector series is engineered for space-saving applications and flexible system designs, suitable for mezzanine, extender-card, and mother-to-daughtercard configurations. It combines robustness with precision to meet demanding electronic manufacturing requirements, making it ideal for industrial, electronics, and communication equipment.

The product is manufactured in China and complies with UL 94-V0 standards for flame retardancy. Its shrouded design enhances protection against mechanical damage and maintains reliable contact alignment during connection cycles.

Designed for board-to-board and wire-to-board connectivity. Constructed with liquid crystal polymer housing for durability. Operates reliably within a temperature range of -55°C to 125°C. Gold-plated copper alloy contacts ensure excellent conductivity.

Supports operating voltages up to 500V. Surface mount termination for PCB integration. Shrouded design provides enhanced mechanical protection and contact alignment. Compact 1.27 mm pitch and 4 mm mating pin length for secure connections.

The HARTING Har-Flex Series PCB Headers are widely used in industrial controls, communication devices, and electronic manufacturing where reliable, flexible, and compact connectivity solutions are crucial. EnvMart offers this connector as a part of its electronics components range.
