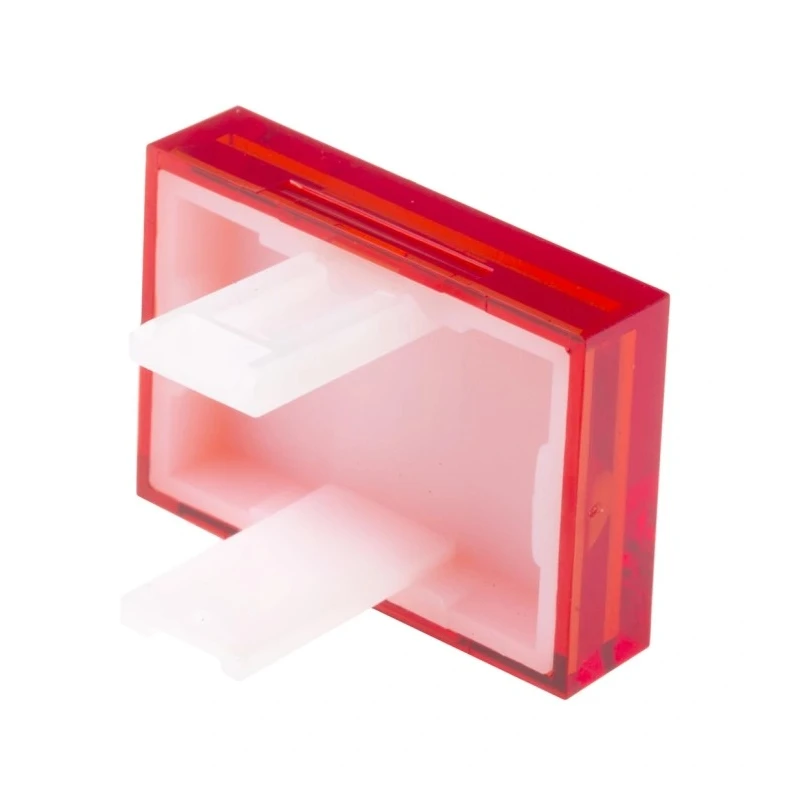

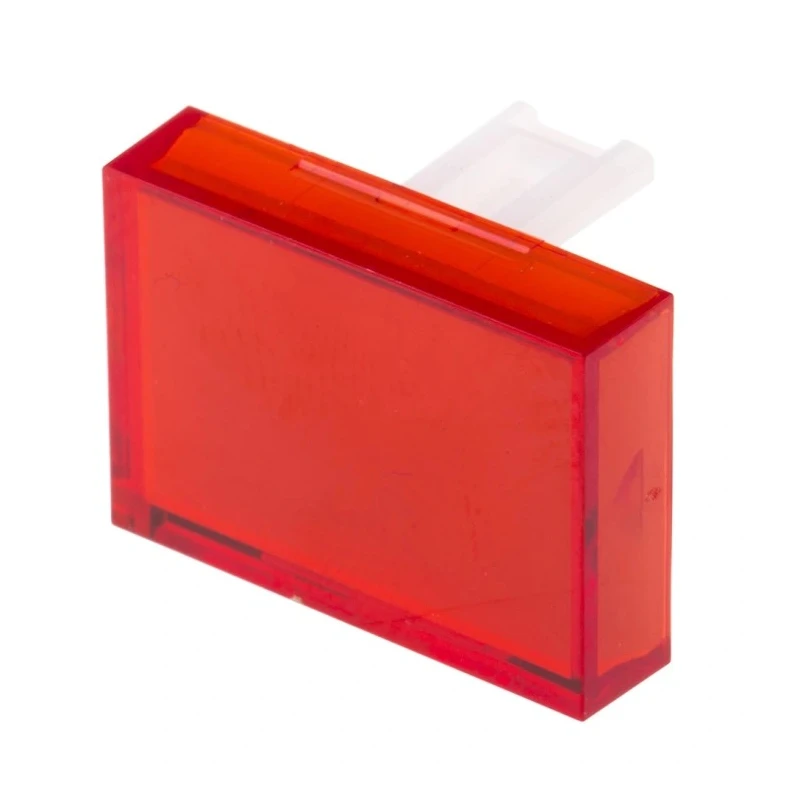

RS PRO Red Rectangular Push Button Lens for Use with SD16 Series 745-2584
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 14.3mm |
| Length | 21.4mm |
| Model | 745-2584 |
| Width | 15.2mm |
| Lens Colour | Red |
| For Use With | SD16 Series |
| Standards/Approvals | RoHS |
| Lens Shape | Rectangular |
| Saia-Burgess Red Rectangular Push Button Lens for Use with Push ButtonBrand | Saia-Burgess |
Key Features
- Constructed from Polycarbonate with a flat profile for engraving capability.
- Compatible with SD16 Series 16mm diameter push button switches and pilot light indicators.
- Designed for panel thickness between 0.5mm and 5mm.
- Rectangular shape with dimensions 21.4mm length, 15.2mm width, and 14.3mm height.
- Suitable for illuminated and non-illuminated push button applications.
- Supports filament lamp or LED illumination using T1 3/4 (MG5.7s) midget groove filament lamps or suitable LEDs.
- Complies with RoHS environmental standards.
- Manufactured in Taiwan, Province of China.
Product Description
RS PRO 745-2584 Red Rectangular Push Button Lens is designed specifically for use with the SD16 Series push button switches and pilot light indicators, engineered to fit industry standard 16mm diameter panel cut-outs within 0.5 to 5mm panel thickness. This rectangular lens offers a flat profile suitable for engraving and is manufactured from robust Polycarbonate material ensuring durability and clarity.
The lens measures 21.4mm in length, 15.2mm in width, and 14.3mm in height, ideal for various control panel applications requiring clear and visually distinct red lens indicators. It can be used in both illuminated and non-illuminated push button designs. For illumination, it is compatible with T1 ¾ (MG5.7s) midget groove filament lamps or LEDs, allowing customization of visual signals.
This product complies with RoHS standards, meeting environmental compliance requirements for electrical components. The lens is part of RS PRO's SD16 series, known for momentary and alternate action push button switches with square and rectangular bezels. Rectangular push button bezels measure 18 x 24mm with a maximum panel depth of 29mm.
The lens is suited for applications across industrial automation, electrical panels, machinery controls, and manufacturing equipment where reliable and clear operator feedback is essential. The product is manufactured in Taiwan, ensuring high-quality production standards.
Constructed of Polycarbonate for durability and engraving. Designed for 16mm panel cut-outs in SD16 push button series. Compatible with LED or filament lamp illumination. Rectangular profile with precise dimensions for standard bezels.
Complies with RoHS environmental standards. Applicable in industrial automation and electrical control systems. Manufactured in Taiwan, Province of China.
This push button lens enhances operator interface effectiveness and is available exclusively in the RS PRO range at EnvMart for high-reliability industrial electrical applications.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The lens measures 21.4mm in length, 15.2mm in width, and 14.3mm in height.
It is constructed from Polycarbonate, ensuring durability and clarity.
This lens is specifically designed for use with the SD16 Series push button switches and pilot light indicators.
The lens is designed for panel thicknesses between 0.5mm and 5mm.
Yes, it is suitable for both illuminated and non-illuminated push button applications.
It supports illumination using T1 3/4 (MG5.7s) midget groove filament lamps or suitable LEDs.
The lens complies with RoHS environmental standards.
It is applicable in industrial automation, electrical panels, machinery controls, and manufacturing equipment.
The lens has a rectangular shape, which is suitable for engraving.
It is manufactured in Taiwan, Province of China.
The model number is 745-2584.
The flat profile is designed for engraving capability, allowing for customization of the lens.
