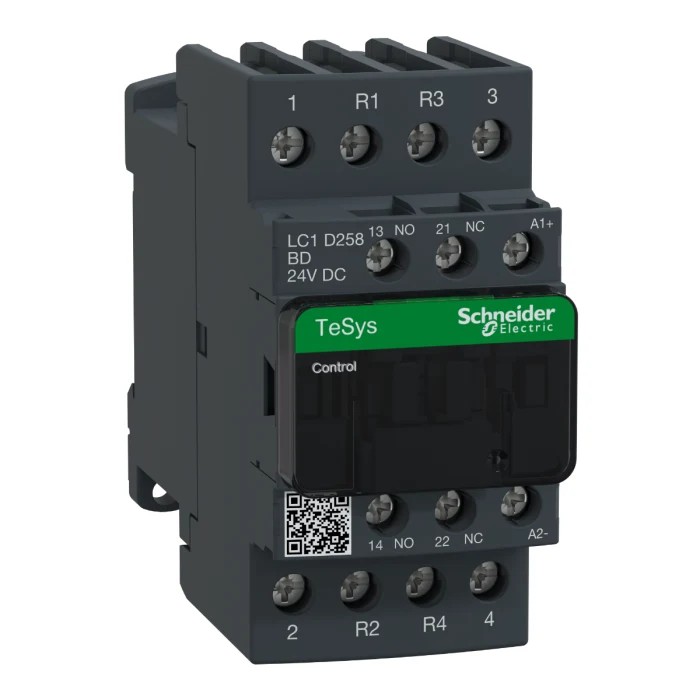

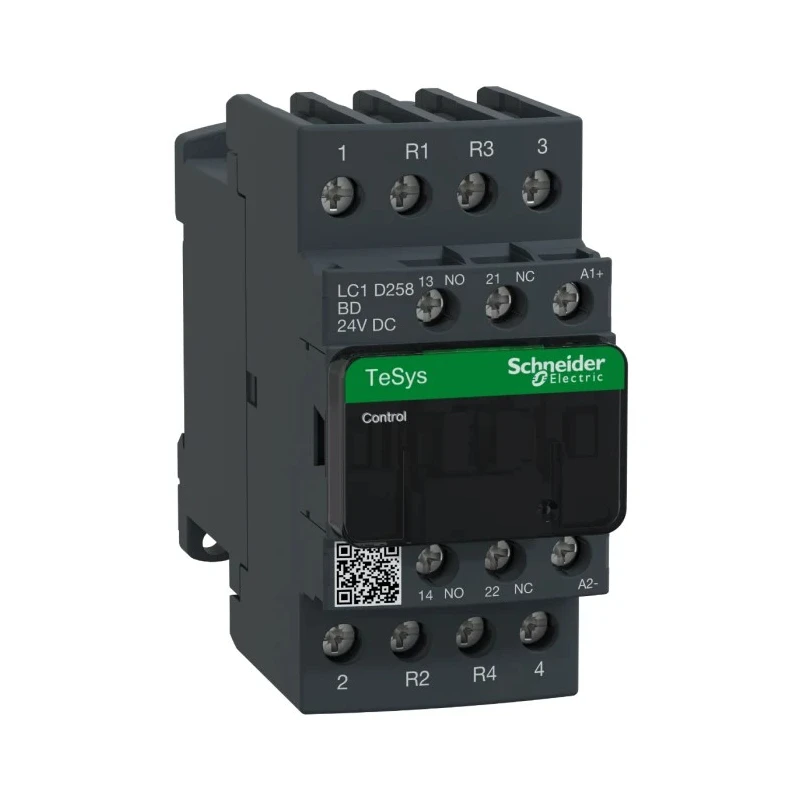

Schneider Electric TeSyS D Contactor 24V DC Coil, 4-Pole, 40A, 2 NO/2 NC, 690V AC/DC LC1D258BD
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Load Control, Resistive Load |
| Length | 91mm |
| Model | LC1D258BD |
| Depth | 107mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 24V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- This contactor features a robust design optimized for load control in industrial applications.
- It supports a resistive load function and is DIN rail mountable for easy installation.
- Operates reliably within a temperature range of -40°C to 60°C ensuring stable performance.
- Equipped with screw-type terminals for secure electrical connections.
- Includes 2 auxiliary contacts arranged as 1 NO and 1 NC for extended control options.
- The compact dimensions (91mm x 45mm x 107mm) allow integration in constrained panel spaces.
- Recognized with CSA and UL safety approvals for assured quality and compliance.
- Designed for disassembly supporting sustainability initiatives.
Product Description
Schneider Electric LC1D258BD is a high-quality TeSyS D series contactor designed for efficient industrial load control applications. Featuring a 24V DC coil with four poles, it can reliably handle currents up to 40A and contact voltages up to 690V AC/DC. Its 2 normally open and 2 normally closed contact configuration provides versatile switching capabilities for automation and motor control systems.
This contactor is engineered for harsh environments, maintaining operational integrity between -40°C and 60°C. It is suitable for resistive loads and designed for DIN rail mounting, ensuring easy installation and maintenance. The screw terminal connections provide secure and reliable wiring.
With approved safety standards including CSA and UL, the LC1D258BD ensures compliance with industrial safety requirements. The product's compact size (91mm length, 45mm width, 107mm depth) fits well within control panels with limited space.
Its design enables longevity with a mechanical lifespan of millions of cycles, supporting demanding industrial usage. The auxiliary contacts (1 NO / 1 NC) allow integration into complex control circuits for expanded functionality. Additionally, this contactor supports sustainability goals through its design for disassembly, promoting environmental responsibility.
Applications include automation systems, HVAC compressor controls, motor management in industrial facilities, and lighting control for large commercial spaces. Its versatility and robust design make it a reliable choice in electrical control gear.
This contactor provides efficient load control tailored for industrial environments. Supports a wide temperature range ensuring robust operation under varied conditions. Compact form factor enables easy panel integration.
Complies with recognized safety standards including CSA and UL. Features auxiliary contacts for enhanced control flexibility. Designed with sustainability in mind for disassembly and recycling. Reliable screw terminal connections ensure secure installation.
Suitable for resistive load applications in automation, HVAC, motor control, and lighting. Explore more Schneider Electric products and Contactors at EnvMart for your industrial automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating is 690V AC/DC.
This contactor operates with a coil voltage of 24V DC.
It can handle a maximum current of 40A.
The operating temperature range is from -40°C to 60°C.
This model features 4 poles.
It includes 2 auxiliary contacts arranged as 1 normally open (NO) and 1 normally closed (NC).
It is equipped with screw-type terminals for secure electrical connections.
The dimensions are 91mm in length, 45mm in width, and 107mm in depth.
Yes, it is designed for resistive load applications.
It is designed for DIN rail mounting, facilitating easy installation.
It is recognized with CSA and UL safety approvals.
The contactor is designed for disassembly, promoting environmental responsibility.
