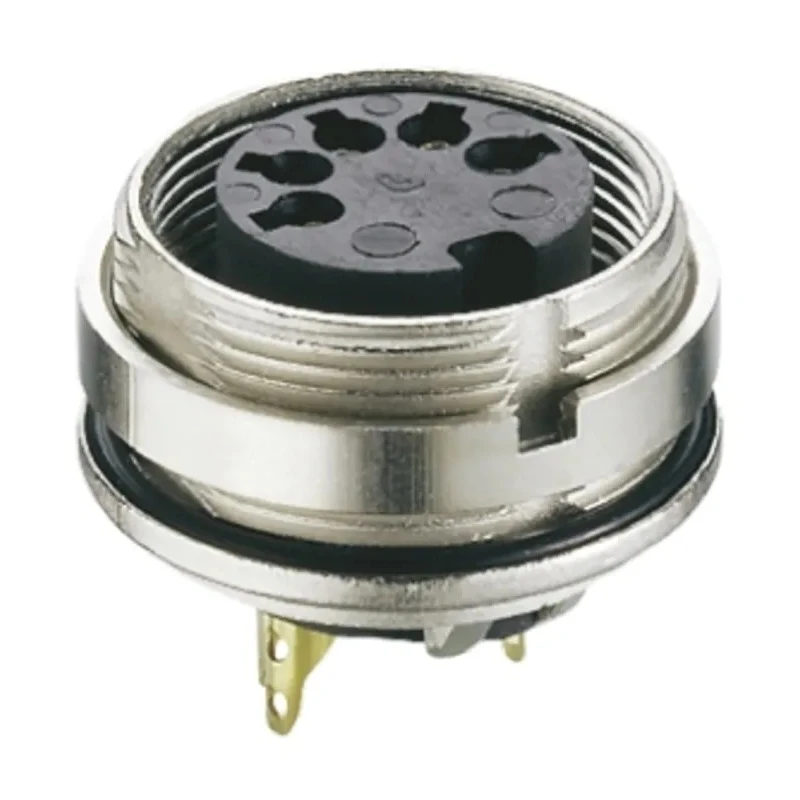

Lumberg 7 Pole Straight M16 DIN Socket Panel Mount Female Connector 5A 250V ac Threaded 0305 07
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Lumberg |
| Orientation | Straight |
| Current | 5A |
| Model | 0305 07 |
| IP Rating | IP68 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Zinc |
| Contact Material | Brass |
| Series | 305 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 7 |
| Contact Plating | Gold over Silver |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Threaded |
| Connector Size | M16 |
| DIN Number | DIN EN 60529 |
Key Features
- Constructed with die cast zinc housing ensuring durability.
- Contacts are brass plated with gold over silver for reliable conductivity.
- Designed for solder termination to ensure secure wiring connections.
- Operates reliably within temperature range from -40°C to 85°C.
- Complies with DIN EN 60529 standard providing IP68 protection against dust and water ingress.
- Straight orientation with 7 poles suitable for control, automation, and instrumentation applications.
- Threaded panel mount design enables secure and stable installation.
- Compatible with industrial equipment requiring robust circular DIN connectors.
Product Description
Lumberg 0305 07 7 Pole Straight M16 DIN Socket is a high-quality panel mount female connector designed for industrial and electronic applications. Operating at 5A current and 250V ac voltage, it features a threaded mating system which provides secure and reliable connections suitable for control engineering, automation technology, and medical instrumentation.
The connector is housed in durable die cast zinc material with brass contacts plated with gold over silver, ensuring excellent conductivity and corrosion resistance. This socket is designed for solder termination and supports a maximum operating temperature of 85°C and a minimum of -40°C, making it resilient in harsh environments.
Certified with DIN EN 60529 standard, it offers IP68 ingress protection rating, ensuring complete protection against dust and water, suitable for demanding industrial environments. The straight orientation and 7 poles configuration make it ideal for various circular connector applications where reliability is critical.
Mounting is done via panel mount technique providing a secure installation through threaded joints. The Lumberg 0305 series sockets support up to 12 ways, with this model providing a 7-pole format specifically engineered for robust electrical interfacing.
This product is primarily used in industrial control, machinery connection, automation systems, and instrumentation setups where a watertight and durable DIN socket is required. The high IP68 rating and quality materials make it an excellent choice for environments exposed to dust and moisture.
Constructed with die cast zinc housing ensuring durability. Contacts are brass plated with gold over silver for reliable conductivity. Designed for solder termination to ensure secure wiring connections. Operates reliably within temperature range from -40°C to 85°C.
Complies with DIN EN 60529 standard providing IP68 protection against dust and water ingress. Straight orientation with 7 poles suitable for control, automation, and instrumentation applications. Threaded panel mount design enables secure and stable installation.
Compatible with industrial equipment requiring robust circular DIN connectors. Browse EnvMart's wide range of industrial-grade DIN Sockets and connectors for reliable and certified electrical connections in your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates at a maximum voltage of 250V ac.
It has a current capacity of 5A.
This model is designed for solder termination, ensuring secure wiring connections.
It complies with the DIN EN 60529 standard and has an IP68 rating, providing protection against dust and water ingress.
The housing is made of die cast zinc, and the contacts are brass plated with gold over silver for reliable conductivity.
It operates reliably within a temperature range from -40°C to 85°C.
This model features a 7-pole configuration.
It supports a panel mount design, enabling secure installation through threaded joints.
The connector has a straight orientation.
It is suitable for control, automation, and instrumentation applications in industrial environments.
The connector size is M16.
The contact gender of this socket is female.
