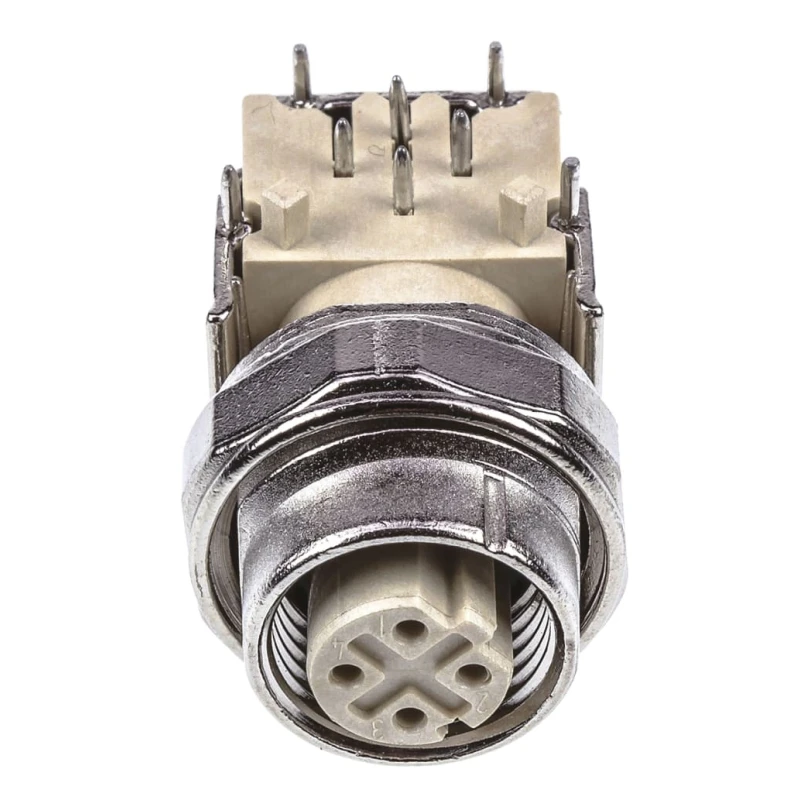

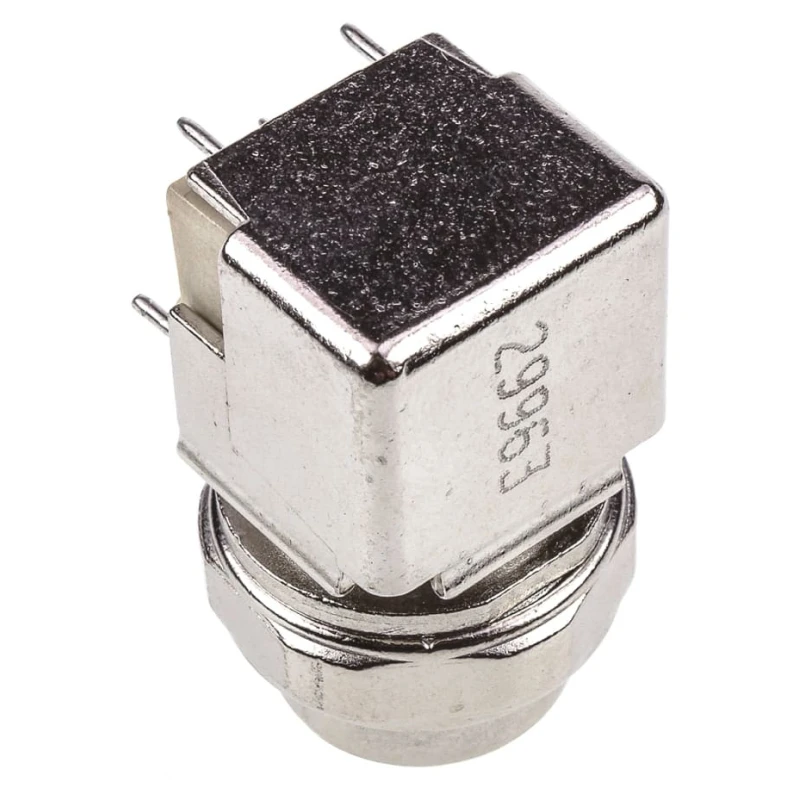

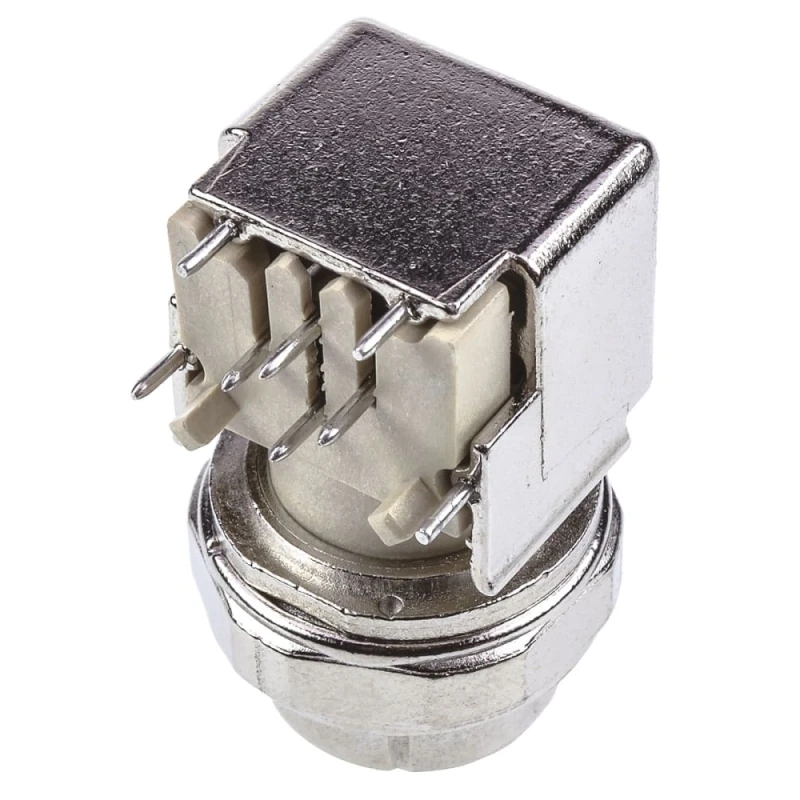

HARTING Circular Connectors M12 4 Pole Right Angle DIN Socket 4A 50V IP20 Screw PCB Female 21033814410
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 50V |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 4A |
| IP Rating | IP20 |
| Mount Type | PCB |
| Housing Material | Die Cast Zinc |
| Contact Material | Copper Alloy |
| Series | Circular connectors M12 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Shielded |
| Pole Format | 4 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Screw |
| Connector Size | M12 |
Key Features
- Features 4 contacts with M12 connector size for secure connections.
- Right angle orientation provides space-saving PCB mounting.
- Housing constructed from die cast zinc ensuring durability.
- Contacts plated with gold over nickel for reliable electrical conductivity.
- Operates within temperature range of -40°C to 85°C.
- Rated for 4 amps current and 50 volts voltage to suit industrial applications.
- Shielded design minimizes electromagnetic interference.
- Termination type is solder suitable for PCB assembly.
Product Description
HARTING 21033814410 Circular Connectors M12 4 Pole Right Angle DIN Socket offers highly reliable electrical interfacing solutions designed for industrial and electronic component applications, specifically suited for PCB mounting.
This female connector features a 4-pin contact format enclosed in a die cast zinc housing for enhanced mechanical robustness and longevity. The gold-over-nickel plated copper alloy contacts ensure consistent electrical conductivity and corrosion resistance.
Its right angle PCB mount orientation facilitates compact circuit design and secure attachment through a solder termination. Rated for a current of 4 amps and operating voltage of 50 volts, this DIN Socket connector supports demanding power and signal transmission needs in automation, sensor, and actuator interfaces.
The shielded design mitigates interference, while the IP20 protection class safeguards against solid intrusions, making it suitable for indoor industrial environments. Thermal performance ranges from -40°C up to 85°C, offering stable operation in diverse temperature conditions.
Manufactured to exacting German standards, this circular connector is part of the renowned HAN® M12 series, widely recognized for robust industrial connectivity solutions. Its precise panel feed-through dimensions and M3 fixing hole facilitate seamless integration into electrical assemblies.
4 contact pins with female gender and screw mating interface. Die cast zinc housing for industrial durability. Gold-plated copper alloy contacts for corrosion resistance. Right angle orientation for efficient PCB layout.
Solder termination for reliable electrical connections. Rated at 4A current and 50V voltage for industrial usage. IP20 ingress protection for solid object prevention. Operating temperature range from -40°C to +85°C. Manufactured in Germany ensuring superior quality.
Part of the HAN® M12 PCB adaptor series with standard panel cut-outs.
This circular connector is ideally suited for electronic manufacturing, industrial automation, sensor connections, and PCB integration applications. Customers can rely on HARTING’s durable design for consistent performance in commercial and industrial electrical systems.
Explore a comprehensive range of HARTING connectors and electronics components in the EnvMart catalog for your industrial connectivity requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 4 amps.
The connector is rated for a voltage of 50 volts.
It operates within a temperature range of -40°C to 85°C.
This model uses solder termination suitable for PCB assembly.
The housing is constructed from die cast zinc, ensuring durability.
It features 4 contacts in a female configuration.
It has an IP20 rating, which protects against solid object intrusions.
It is suitable for electronic manufacturing, industrial automation, sensor connections, and PCB integration applications.
The contacts are plated with gold over nickel for reliable electrical conductivity.
This model has a right angle orientation for space-saving PCB mounting.
It is classified as an M12 connector size.
This connector is manufactured in Germany.
