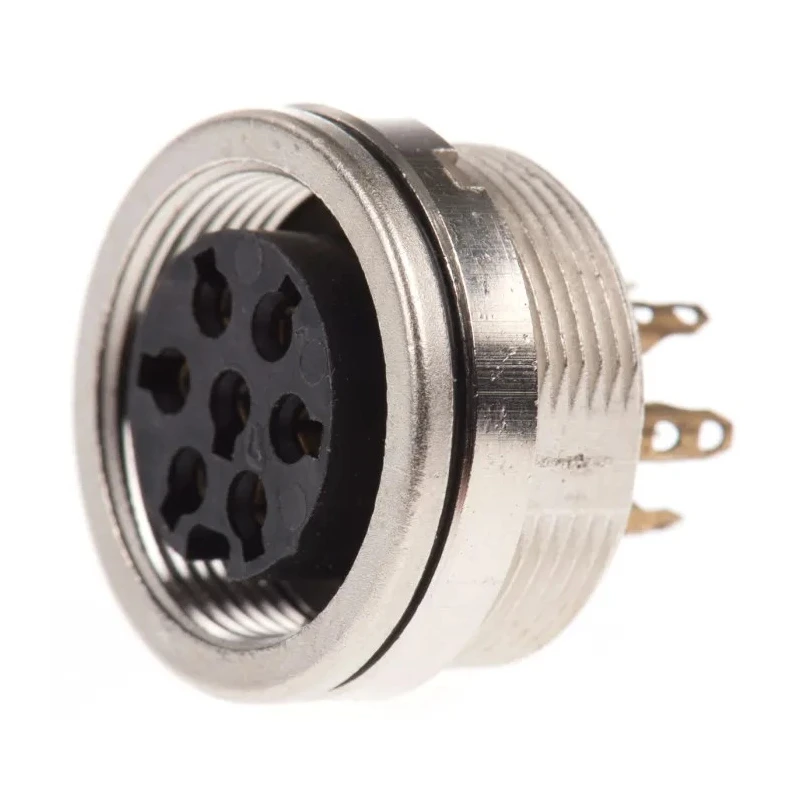

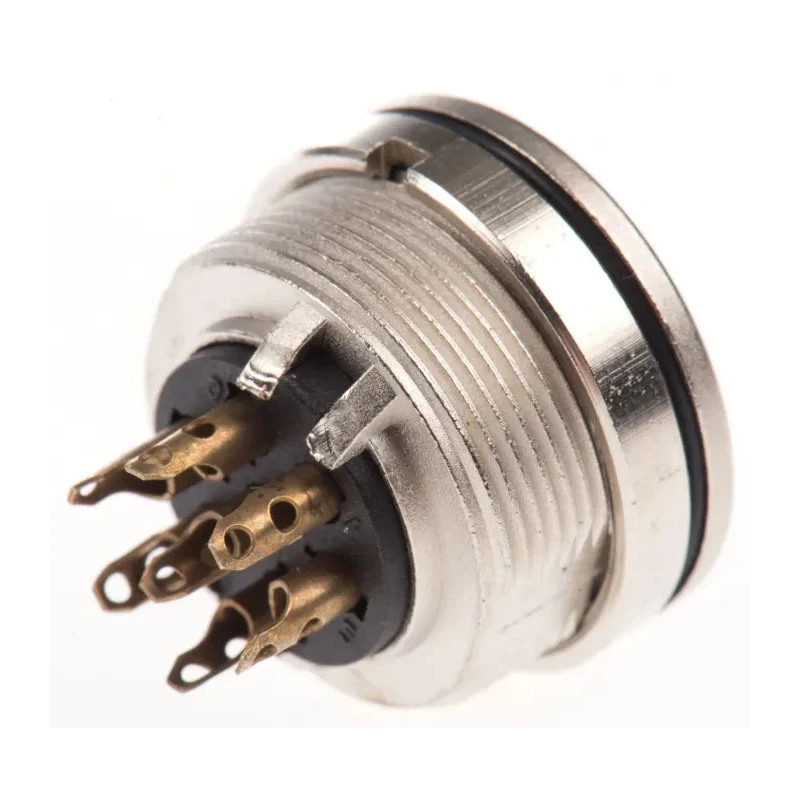

Lumberg 7 Pole Straight M16 DIN Socket Panel Mount Female Threaded 5A 250V AC IP68 0304 07
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Lumberg |
| Orientation | Straight |
| Current | 5A |
| Model | 0304 07 |
| IP Rating | IP68 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Zinc |
| Contact Material | Brass |
| Series | 304 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 7 |
| Contact Plating | Gold over Silver |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Threaded |
| Connector Size | M16 |
| DIN Number | DIN EN 60529 |
Key Features
- Features a die cast zinc housing for durability and corrosion resistance.
- Brass contacts plated with gold over silver ensure reliable electrical connection.
- Designed to operate within a temperature range of -40°C to 85°C.
- Provides IP68 ingress protection for dust and water resistance.
- Suitable for control engineering, automation technology, and medical instrumentation applications.
- Panel mount type with a straight orientation for easy installation.
- Termination is by solder, ensuring strong and stable contact connections.
Product Description
Lumberg 0304 07 is a 7 pole straight M16 DIN Socket designed for panel mounting applications. It features a threaded mating type with female contacts, operating at 5A current and 250V AC voltage. The connector is compliant with DIN EN 60529 and offers an IP68 rating, ensuring resistance against dust and temporary water ingress, making it suitable for demanding industrial environments.
The housing is manufactured from die cast zinc, providing high strength and corrosion resistance, while the contact material is brass plated with gold over silver to enhance conductivity and durability. This connector supports solder termination type for reliable and secure electrical connections.
Operating temperature ranges from -40°C to a maximum of 85°C, covering a wide range of environmental conditions. The connector's 7 pole format allows multiple signal or power contacts within a single housing, ideal for automation and control engineering, as well as instrumentation in medical devices.
Lumberg’s 304 series connectors and sockets, including this model, are known for their robust design and are commonly employed in panel mount installations requiring threaded joins for secure mechanical connection and electrical integrity.
Die cast zinc housing ensures mechanical strength and weather resistance. Gold over silver plating on brass contacts improves electrical performance and corrosion resistance. IP68 rating provides dust-tight protection and protection against water immersion.
Solder termination type supports secure wiring for stable connections. Approved under IEC60130-9 standards, meeting industry requirements. Reliable choice for industrial automation, medical instrumentation, and control engineering applications.
Compact M16 connector size with straight orientation for easy installation and maintenance.
This connector type is ideal for panel mount installations that demand robust connections with high ingress protection. Explore more DIN connectors and sockets in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a current of 5A and a voltage of 250V AC.
It has an IP68 ingress protection rating, providing resistance against dust and temporary water immersion.
The housing is made from die cast zinc, while the contacts are brass plated with gold over silver.
It operates within a temperature range of -40°C to 85°C.
The termination is by solder, ensuring strong and stable contact connections.
This model features a 7 pole format, allowing multiple signal or power contacts within a single housing.
It is designed for panel mounting applications.
The connector size is M16 with a straight orientation for easy installation.
It is compliant with DIN EN 60529 standards.
It is suitable for control engineering, automation technology, and medical instrumentation applications.
The contacts are female, and the connector itself is also female gendered.
The country of origin for this model is India.
