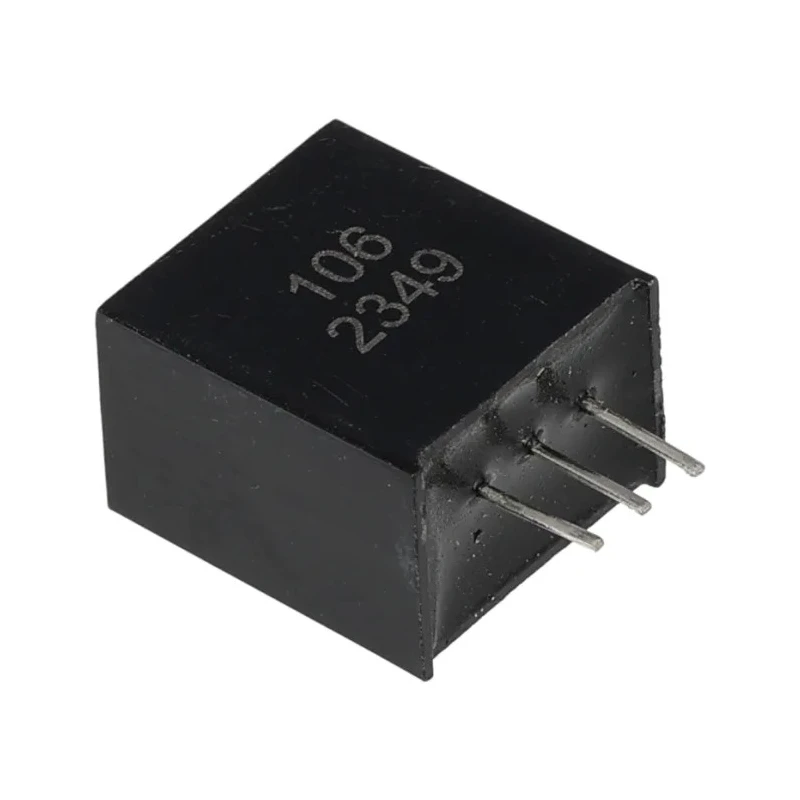

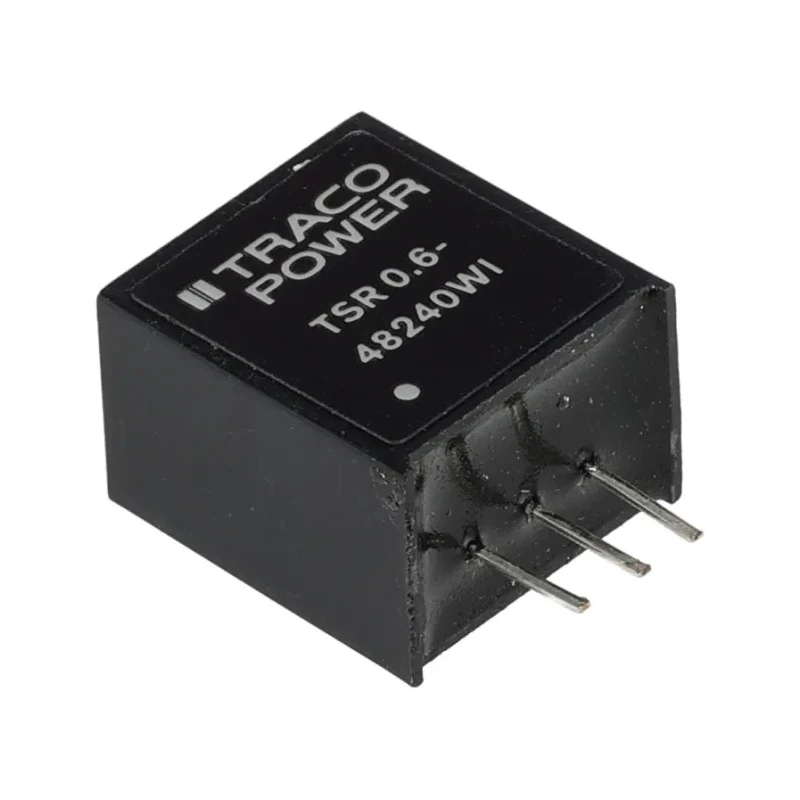

TRACOPOWER Non-Isolated DC-DC Converter, Through Hole SIP-3 Package, 24V DC Output, 33V DC Max Input, 400mA TSR 0.6-48240WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 94% |
| Operating Temperature Range | -40 to +85°C |
| Length | 12mm |
| Model | TSR 0.6-48240WI |
| Depth | 13.4mm |
| Gross Weight | 3g |
| Width | 8.6mm |
| Mount Type | Through Hole |
| Series | TSR 0.6WI |
| Output Current | 400mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-3 |
| Load Regulation | 0.6 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 18160000h |
| Number of outputs | 1 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Input Voltage | 33V dc |
| Line Regulation | 0.9 % |
| Standards/Approvals | CE |
| Output Voltage 1 | 24V dc |
Key Features
- Offers up to 94% efficiency, eliminating the need for a heatsink.
- Wide input voltage range supporting various bus and battery voltages.
- Robust operation from -40°C to +85°C ambient temperature.
- Includes protection against short circuit, overvoltage, and overload.
- Low standby current ensures energy-efficient standby operation.
- Pin-compatible with LMxx linear regulators in SIP-3 package for easy upgrade.
- Manufactured in Taiwan with CE standards compliance.
- Designed for reliable operation with a minimum MTBF of 18,160,000 hours.
Product Description
TRACOPOWER TSR 0.6-48240WI is a non-isolated DC-DC POL converter series in a through-hole SIP-3 package designed for distributed power systems. It features an ultra-wide 8:1 input voltage range supporting standard bus and battery voltages, making it adaptable for diverse applications requiring multiple input voltages.
The module delivers a regulated 24V DC output at up to 400mA current, with a maximum input voltage of 33V DC. Its high efficiency of up to 94% removes the need for additional cooling such as heatsinks, while maintaining low ripple and noise (75mV peak-to-peak), contributing to stable operation in sensitive electronic environments.
Operating temperature ranges from -40°C to +85°C, the TSR 0.6-48240WI offers reliable performance in harsh industrial, automotive, and battery-powered applications. Key protective features include short circuit, overvoltage, and overload protections ensuring durability and system safety. Its pin compatibility with LMxx linear regulators facilitates straightforward upgrades or replacements in existing designs.
The compact physical dimensions of 12mm length, 8.6mm width, and 13.4mm depth, along with a lightweight 3g package, make it suitable for PCB mounting in constrained spaces. This device benefits applications in industrial automation, telecommunications, power management in electronic instruments, and embedded systems requiring efficient DC-DC voltage conversion.
High efficiency up to 94% eliminates need for heatsinks. Wide 8:1 input voltage range for versatile bus and battery voltages. Through-hole SIP-3 package for easy integration and replacement. Robust operating temperature of -40°C to +85°C ensures reliability.
Comprehensive built-in protections improve system safety. Pin-compatible with LMxx linear regulators simplifies upgrades. Low ripple and noise ensure stable power delivery. Complies with CE standards, guaranteeing quality and safety.
TRACOPOWER products offer dependable solutions for industrial and electronic systems, backed by a solid 3-year product warranty. Browse our Electronics & Electricals converters category for related DC-DC Converter solutions optimized for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers an efficiency of up to 94%, which eliminates the need for a heatsink during operation.
It supports an ultra-wide input voltage range of 8:1, with a maximum input voltage of 33V DC.
The TSR 0.6-48240WI can deliver a regulated output current of up to 400mA.
The physical dimensions of this model are 12mm in length, 8.6mm in width, and 13.4mm in depth.
It operates reliably within a temperature range of -40°C to +85°C.
This model features a through-hole mounting type, suitable for PCB installation.
It includes built-in protections against short circuits, overvoltage, and overload conditions.
The output ripple and noise is specified at 75mV peak-to-peak, ensuring stable power delivery.
Yes, it is pin-compatible with LMxx linear regulators, allowing for easy upgrades or replacements.
The mean time between failures (MTBF) for this model is 18,160,000 hours, indicating reliable operation.
It complies with CE standards, ensuring quality and safety in its operation.
This unit is designed for applications in industrial automation, telecommunications, power management in electronic instruments, and embedded systems.
