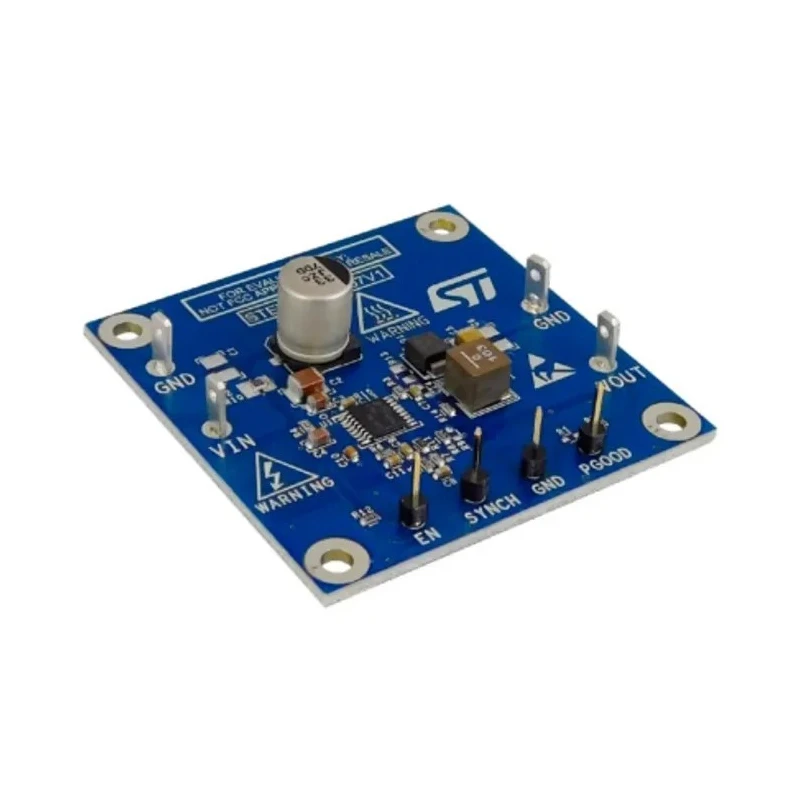

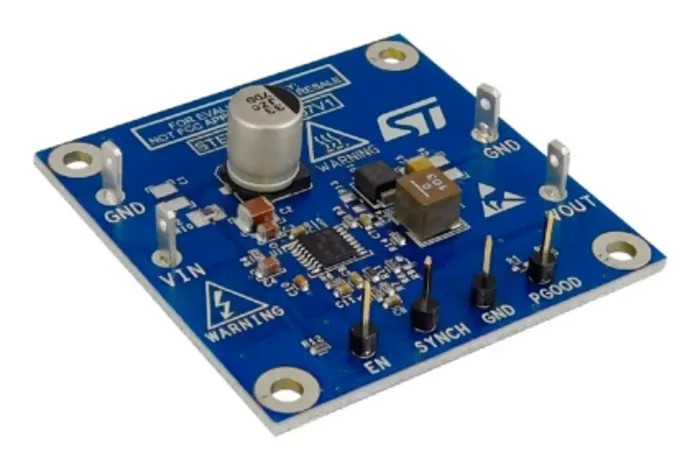

STMicroelectronics 3 A Step Down DC/DC Switching Regulator Evaluation Board STEVAL-ISA207V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ISA207V1 |
| Kit Classification | Evaluation Board |
| Featured Device | A7987 |
| Kit Name | 3 A Step Down DC/DC Switching Regulator |
Key Features
- The board features the A7987 switching regulator in an HTSSOP16 package.
- Output voltage is adjustable starting from 0.8 V for flexible power supply requirements.
- It supports almost low drop-out operation due to advanced integrated switch management.
- The embedded high-side power MOSFET allows delivery of up to 3 A current depending on conditions.
- Includes switchover on the VBIAS pin and pulse skipping light load management to maximize efficiency.
- Adjustable soft-start current limit threshold and switching frequency tailored to application needs.
- Internal oscillator frequency is 250 kHz, configurable up to 1.5 MHz via resistor.
- Two A7987 regulators can synchronize 180° out-of-phase for reduced input RMS current.
Product Description
STMicroelectronics STEVAL-ISA207V1 is a 3 A Step Down DC/DC Switching Regulator Evaluation Board designed for automotive system battery-powered applications. It uses the A7987 switching regulator in an HTSSOP16 package delivering reliable power management with output voltage adjustable from 0.8 V.
The board facilitates almost low drop-out operation due to its advanced integrated switch management, enhancing efficiency in power conversion. The embedded high-side power MOSFET enables current delivery up to 3 A depending on application demands.
The integrated switchover feature on the VBIAS pin and light load management with pulse skipping optimize power efficiency across varying load ranges. Additionally, the soft-start current limit and switching frequency can be tailored to specific applications, improving performance and protection.
This evaluation board includes an internal 250 kHz oscillator frequency which can be adjusted up to 1.5 MHz by selecting an appropriate resistor value. Moreover, the design allows synchronization of two A7987 regulators in a 180° out-of-phase configuration, minimizing input RMS current and electrical noise.
Manufactured in Italy, the STEVAL-ISA207V1 board meets the quality needs of automotive and industrial environments requiring robust and efficient DC/DC power regulation. The board features the A7987 switching regulator in an HTSSOP16 package.
Adjustable output voltage starting from 0.8 V. Almost low drop-out operation enabled by integrated switch management. Capable of delivering up to 3 A current with embedded high-side MOSFET. Switchover on VBIAS pin and pulse skipping light load management maximize efficiency.
Adjustable soft-start current limit and switching frequency. Internal oscillator frequency from 250 kHz adjustable to 1.5 MHz. Two regulators can synchronize in 180° out-of-phase to reduce input RMS current. Ideal for automotive battery-powered applications requiring efficient power regulation.
Explore more in our Power, Motor & Robotics Development Tools category at EnvMart for similar advanced evaluation boards and Switching Regulators.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can deliver up to 3 A of current, depending on application demands.
The output voltage is adjustable starting from 0.8 V, allowing for flexible power supply requirements.
The internal oscillator frequency is set at 250 kHz, which can be adjusted up to 1.5 MHz by selecting an appropriate resistor value.
Yes, two A7987 regulators can be synchronized in a 180° out-of-phase configuration to minimize input RMS current and reduce electrical noise.
The A7987 switching regulator is housed in an HTSSOP16 package.
It includes features like switchover on the VBIAS pin and pulse skipping light load management, which maximize efficiency across varying load ranges.
This evaluation board is designed for automotive system battery-powered applications, providing reliable power management.
The board is manufactured in Italy.
The adjustable soft-start current limit helps to tailor the performance and protection of the device according to specific application needs.
The embedded high-side power MOSFET allows for the delivery of up to 3 A current, enhancing the board's capability to manage power efficiently.
The kit classification of this product is an Evaluation Board, specifically designed for testing and development purposes.
The advanced integrated switch management facilitates almost low drop-out operation, enhancing efficiency in power conversion.
