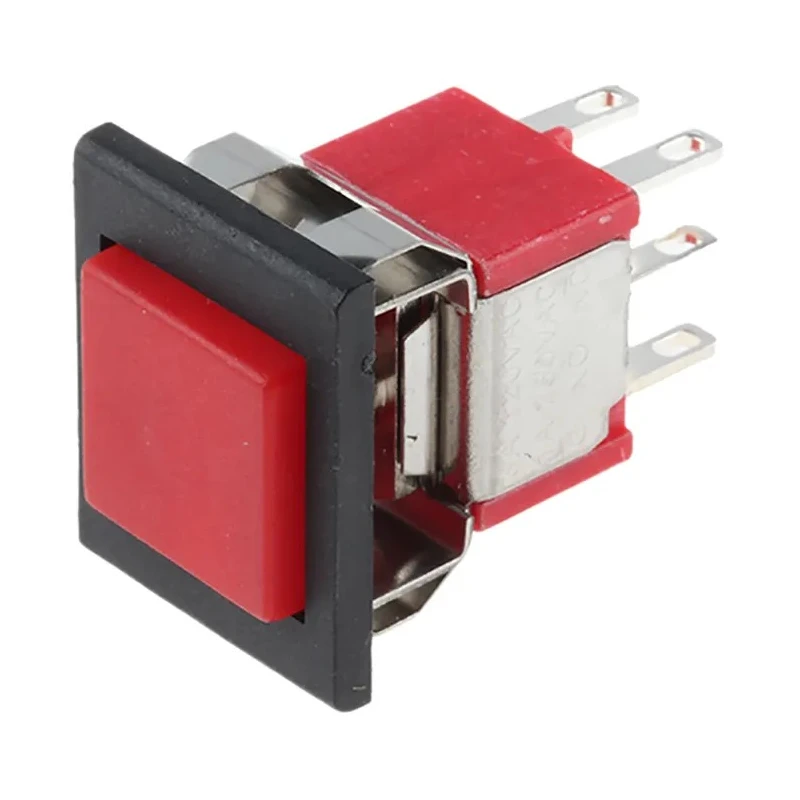

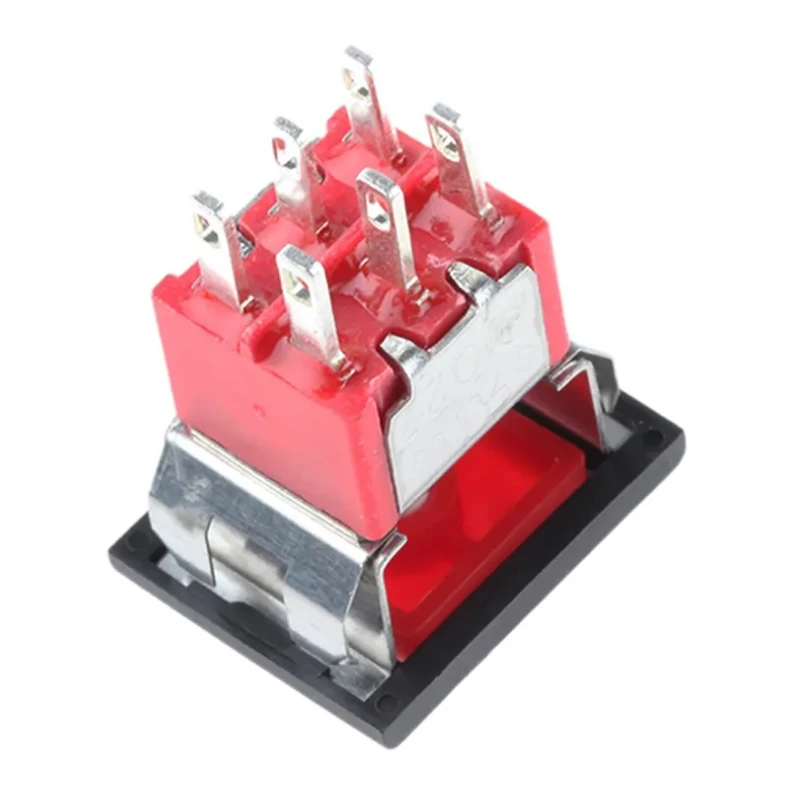

RS PRO Push Button Switch Momentary Panel Mount DPDT Red LED 28V DC 120V AC 734-6772
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Height | 12.7mm |
| Model | 734-6772 |
| Width | 15.7mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT |
| Panel Cutout Size | 12.7 x 15.7 mm |
| Terminal type | Solder |
| Standards/Approvals | Lead-Free, RoHS |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 28V dc |
| Actuator Style | Cap |
| Switch Contact Current | 3A |
| Mechanical Life | 50000 cycles |
| Contact AC Voltage | 120V ac |
Key Features
- The switch has a panel cutout size of 12.7 x 15.7 mm for panel mounting.
- It supports contact voltages of 28 V DC and 120 V AC suitable for varied electrical applications.
- The switch features a cap-style actuator with a red actuator color and LED color.
- Designed for snap action and has a mechanical life of 50,000 cycles ensuring durability.
- Switch contact current rating is 3 A for reliable electrical switching.
- Maximum operating temperature is rated at 85°C for stable performance.
- Terminals are designed for solder connection to ensure secure mounting.
Product Description
RS PRO 734-6772 Push Button Switch is a high-quality momentary switch designed for panel mounting with a precise cutout size of 12.7 x 15.7 mm. The device is equipped with a dual-pole double-throw (DPDT) contact configuration optimized for controlling multiple circuits. This red LED illuminated switch offers both 28 V DC and 120 V AC contact voltage ratings, providing versatile electrical operational capabilities across industrial, commercial, and instrumentation applications.
The cap-style actuator with red color enhances operator visibility and ergonomics for quick manual activation. The switch is engineered for snap action operation delivering tactile feedback and reliable momentary contact. With a robust mechanical life rating of 50,000 cycles, it ensures long-term dependability in demanding environments.
This switch supports 3 A switching current and features solder-type terminal connections suitable for secure PCB or panel wiring installations. Rated for a maximum operating temperature of 85°C, it maintains performance stability under elevated thermal conditions.
Applications for the RS PRO 734-6772 include telecommunication equipment, instrumentation control panels, medical devices, and other automation control systems where precise momentary switch action is required. Compliance with Lead-Free and RoHS standards further endorses it as an environmentally responsible choice.
The compact dimensions with a height of 12.7 mm and width of 15.7 mm facilitate easy integration into various panel layouts and electrical enclosures. The switch provides reliable DPDT momentary operation with red LED indication.
Designed for panel mount with specified cutout dimension for accuracy. Contact ratings allow dual voltage AC/DC electrical compatibility. Robust mechanical and thermal design ensures extended operational life. Solder terminal type supports secure and consistent electrical connections.
Discover comprehensive ranges of Push Button Switches and electronic components in the Electronics & Electricals category on EnvMart for your panel and control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports contact voltages of 28 V DC and 120 V AC, making it suitable for various electrical applications.
It has a mechanical life rating of 50,000 cycles, ensuring long-term dependability in demanding environments.
The required panel cutout size for this switch is 12.7 x 15.7 mm, designed for accurate panel mounting.
The maximum operating temperature is rated at 85°C, allowing stable performance under elevated thermal conditions.
It features solder-type terminals, suitable for secure PCB or panel wiring installations.
The switch has a cap-style actuator with a red color, enhancing visibility and ergonomics for manual activation.
The switch contact current rating is 3 A, providing reliable electrical switching capabilities.
It features a dual-pole double-throw (DPDT) contact configuration, optimized for controlling multiple circuits.
It complies with Lead-Free and RoHS standards, endorsing it as an environmentally responsible choice.
This switch is suitable for applications such as telecommunication equipment, instrumentation control panels, and medical devices.
The switch operates as a momentary switch, delivering tactile feedback and reliable momentary contact.
The switch has a height of 12.7 mm and a width of 15.7 mm, facilitating easy integration into various panel layouts.
