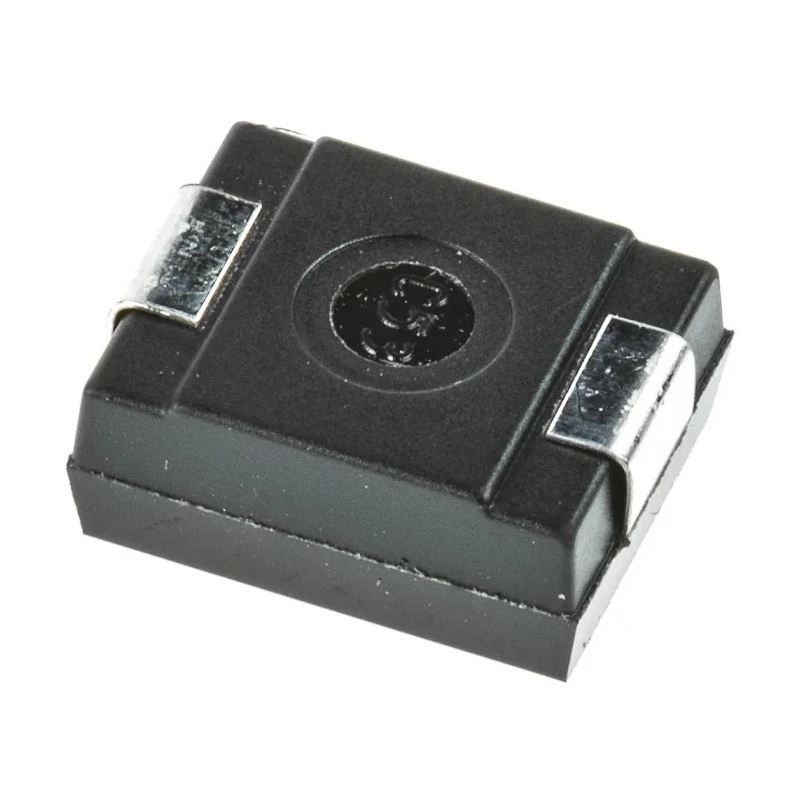

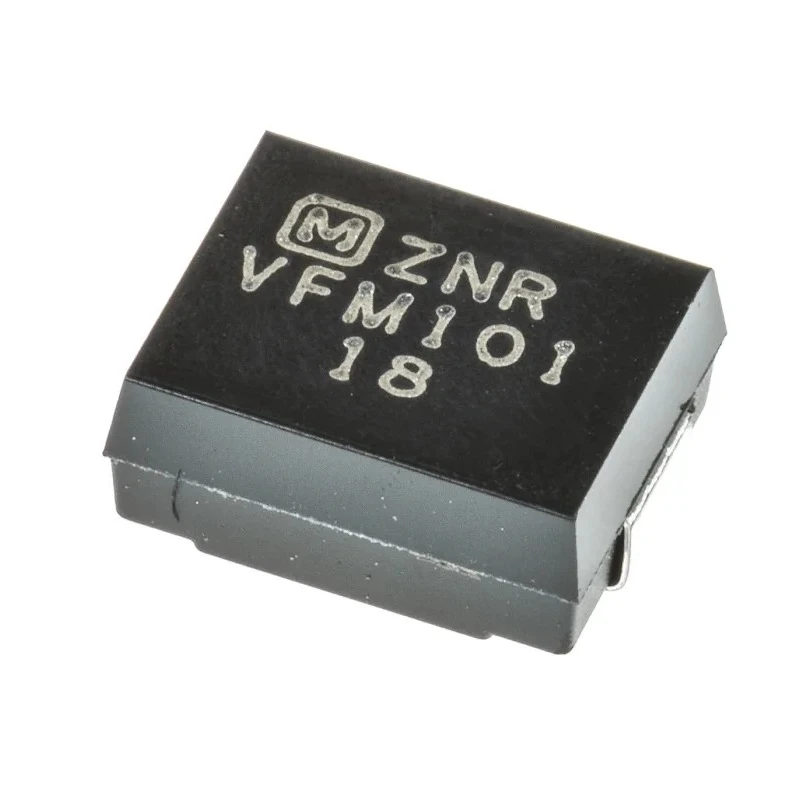

Panasonic VF Surge Absorber 10 A Clamping 165 V Surface Mount Metal Oxide Varistor ERZVF2M101

Panasonic ERZVF2M101 VF Surge Absorber is a metal oxide varistor designed for effective surge protection in electronic circuits. This surface mount device features a clamping voltage of 165 V and can handle a clamping current of 10 A, providing reliable absorption of switching surges caused by relays or transient spikes from power lines.

Its low clamping voltage and high maximum surge current of 600 A make it ideal for protecting sensitive consumer and industrial equipment. The VF series is part of Panasonic's Zinc-oxide Non-Linear Resistor (ZNR) family and can replace complex protection circuits by serving the function of back-to-back zener diodes and parallel capacitors.

Designed for surface mounting, this device is compact with dimensions of 8 mm in length, 3.2 mm in height, and 6 mm in depth, allowing efficient board space utilization. It is designed to withstand temperatures up to 85°C, making it suitable for various industrial and communication module applications such as terminal adapters, modems, and xDSL technology.

Complying with RoHS and CQC standards, the ERZVF2M101 is manufactured in Japan ensuring high quality and reliability. With an energy rating of 4 Joules, it offers durable protection against transient voltage events.

Features low clamping voltage and high surge current capability. Complies with RoHS and CQC standards. Compact surface mount design saves board space. Capable of withstanding a maximum surge current of 600 A. Energy rating of 4 Joules suitable for industrial and consumer applications.

Maximum operating temperature up to 85°C ensures reliable performance. Typical applications include protection of communication modules and industrial equipment against switching surges. Designed for flow and reflow soldering processes.

Manufactured in Japan assuring high quality standards. Physical dimensions: 8mm length, 3.2mm height, 6mm depth for compact mounting.

This surge absorber is a critical component for industrial, communication, and consumer electronic protection, facilitating safe operation and longevity of devices. Explore more Panasonic electronic components and Varistors at EnvMart for your industrial and electronics needs.
