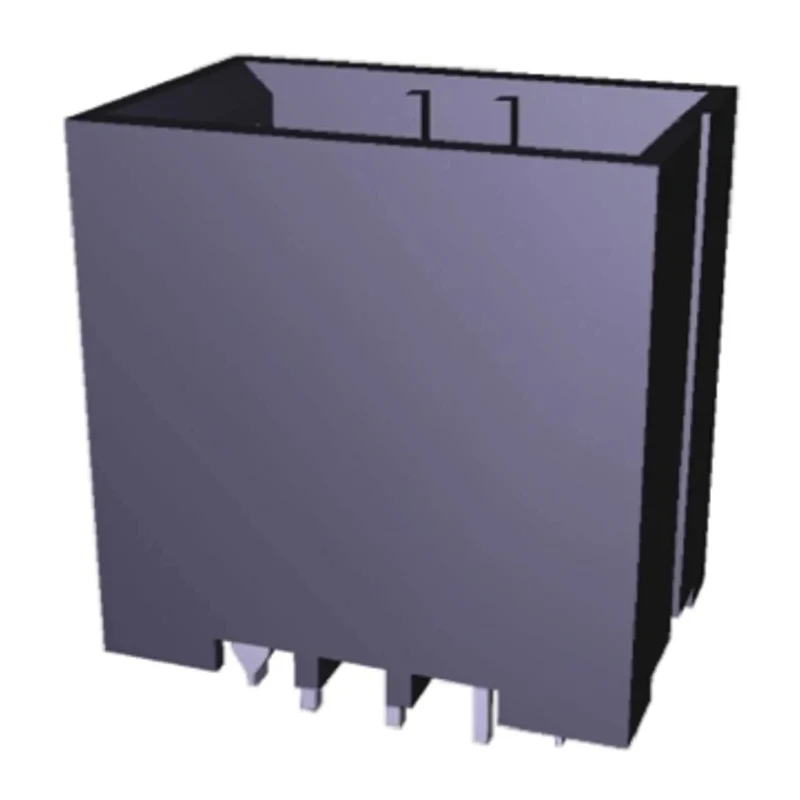

TE Connectivity Dynamic 3000 Series Straight Through Hole PCB Header, 6 Contacts, 3.81 mm Pitch, 1 Row, Shrouded 2-178316-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 10A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Supports a continuous current rating of 10A for reliable performance.
- Constructed with glass filled polyester housing to ensure durability.
- Includes gold plated copper alloy male contacts to enhance conductivity.
- Designed for through hole mounting with solder termination type.
- Operates efficiently between -55°C and 105°C temperature range.
- Features a single row layout with 3.81 mm row pitch.
- Recommended PCB thickness compatibility between 1.0 mm to 1.6 mm.
- Mates with D-3100 series housings, facilitating easy integration.
Product Description
TE Connectivity Dynamic 3000 Series PCB Header model 2-178316-2 is designed as a high-quality straight through hole connector featuring 6 male contacts arranged in a single row with a 3.81 mm pitch. Its shrouded housing is made from robust glass filled polyester, offering excellent mechanical strength and insulation properties. The contacts are manufactured from copper alloy with gold plating to ensure optimal electrical conductivity and resistance to corrosion.
This connector is engineered for wire-to-board applications with a solder termination type. It provides a continuous current rating of 10A and is rated for a voltage of 250V. The header is suitable for operation across a wide temperature range from -55°C up to 105°C, making it versatile for various industrial and electronic environments.
The TE Connectivity Dynamic 3000 Series headers utilize tin-plated retention legs and PCB solder tails, enhancing mechanical stability and solderability during assembly. It is recommended for use with printed circuit boards having a thickness between 1.0 mm and 1.6 mm. These connectors find extensive usage in manufacturing, electronic assembly, and industrial automation sectors.
The single-row, 3.81 mm pitch design allows for compact, reliable connections in control cabinets, instrumentation, and communication equipment. The shrouded system enhances connection security and prevents accidental disconnections.
Supports a continuous current rating of 10A for reliable performance. Constructed with glass filled polyester housing to ensure durability. Includes gold plated copper alloy male contacts to enhance conductivity. Designed for through hole mounting with solder termination type.
Operates efficiently between -55°C and 105°C temperature range. Features a single row layout with 3.81 mm row pitch. Recommended PCB thickness compatibility between 1.0 mm to 1.6 mm. Mates with D-3100 series housings for easy connection.
Voltage rating of up to 250V suitable for standard PCB applications. Explore the full range of TE Connectivity PCB connectors and headers at EnvMart for your industrial and commercial electronics requirements.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a continuous current rating of 10A, ensuring reliable performance in various applications.
The voltage rating for this model is 250V, making it suitable for standard PCB applications.
The housing is constructed from glass filled polyester, which provides mechanical strength and insulation properties.
This model features 6 male contacts arranged in a single row.
The pitch of this header is 3.81 mm, allowing for compact connections.
It operates efficiently within a temperature range of -55°C to 105°C, suitable for various environments.
This header is designed with a solder termination type for secure connections.
It is recommended for use with printed circuit boards having a thickness between 1.0 mm and 1.6 mm.
This model features a shrouded design, enhancing connection security and preventing accidental disconnections.
It is suitable for wire-to-board applications in manufacturing, electronic assembly, and industrial automation sectors.
The contacts are made from copper alloy with gold plating to enhance conductivity and resist corrosion.
This header is part of the wire-to-board connector system, facilitating easy integration into electronic assemblies.
